8.2.3 Application Performance Curves
VIN = 5 V, VOUT = 1.8 V, L = 2.2 μH, TA = 25 °C, unless otherwise noted.

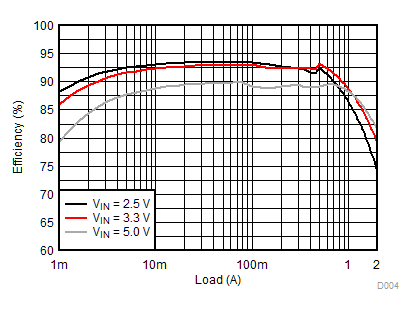

Figure 6. 1.2-V Output Efficiency

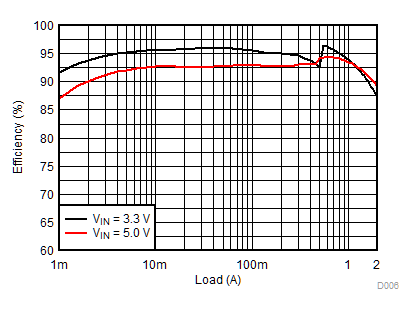

Figure 8. 2.5-V Output Efficiency

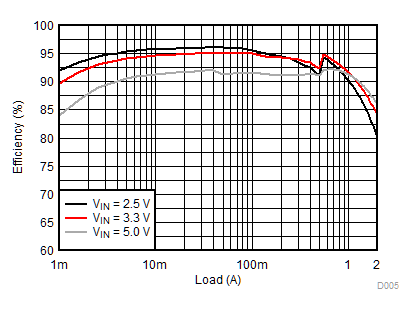

Figure 7. 1.8-V Output Efficiency

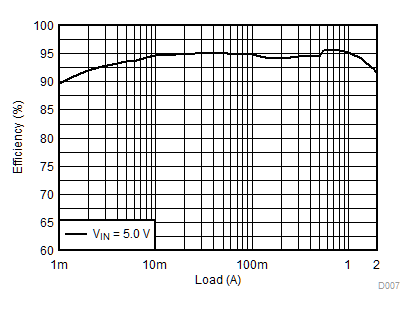

Figure 9. 3.3-V Output Efficiency

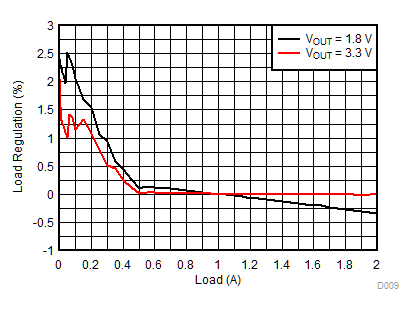

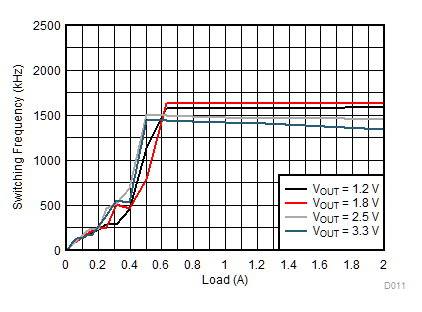

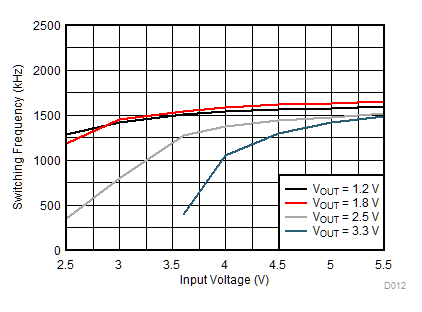

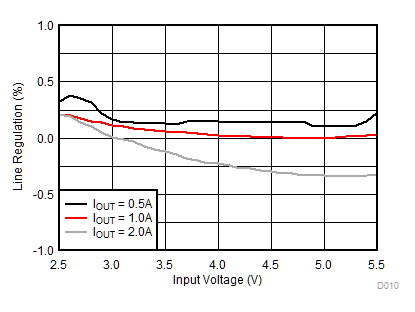

| VIN = 5 V |
| VIN = 5 V |
| IOUT = 1 A |
| IOUT = 2 A |

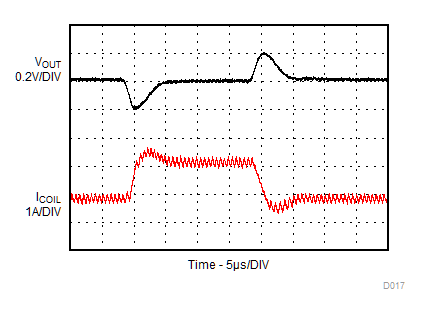

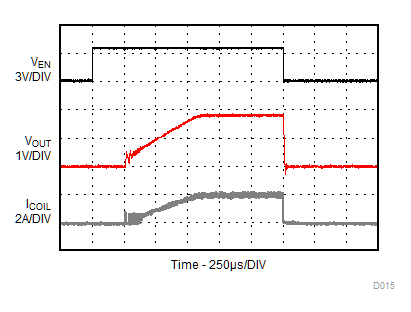

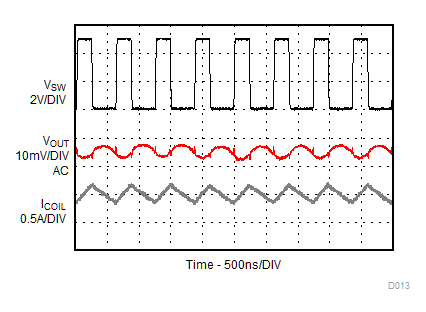

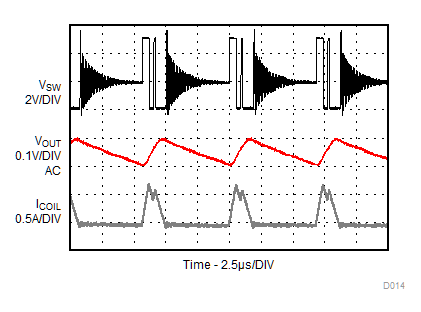

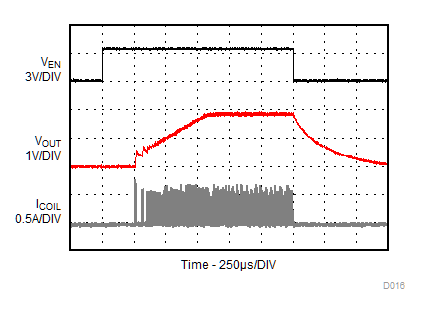

| Load Step 0.8 A to 2 A, 1A/μs slew rate | ||
| VOUT = 1.8 V |
| IOUT = 1 A |
| IOUT = 0.1 A |
| IOUT = 0.1 A |

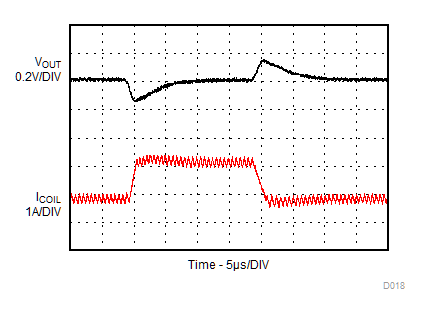

| Load Step 0.8 A to 2 A, 1A/μs slew rate | C3 = 6.8 pF | |
