9.2 Typical Application

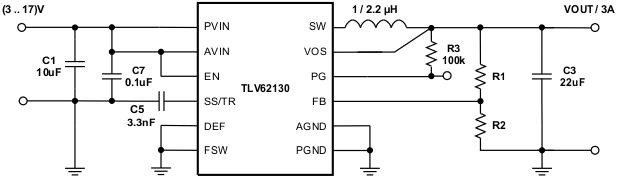

Figure 5 shows an application for Point-Of-Load Power Supply Using TLV62130.
spacing
Figure 5. 3-A Step-Down Converter spacing
