6 Specifications
6.1 Absolute Maximum Ratings
over operating free-air temperature range (unless otherwise noted) (1)| MIN | MAX | UNIT | ||
|---|---|---|---|---|
| Supply voltage | 7 | V | ||
| Signal input terminals | Voltage(2) | (V–) – 0.5 | (V+) + 0.5 | V |
| Current(2) | ±10 | mA | ||
| Output short circuit(3) | Continuous | mA | ||
| Temperature | Operating, TA | –55 | 150 | °C |
| Junction, TJ | 150 | |||
| Storage, Tstg | –65 | 150 | ||
(1) Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings only, which do not imply functional operation of the device at these or any other conditions beyond those indicated under Recommended Operating Conditions. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
(2) Input terminals are diode-clamped to the power-supply rails. Input signals that can swing more than 0.5 V beyond the supply rails should be current-limited to 10 mA or less.
(3) Short-circuit to ground, one comparator per package.
6.2 ESD Ratings
| VALUE | UNIT | ||||
|---|---|---|---|---|---|
| V(ESD) | Electrostatic discharge | Human body model (HBM), per ANSI/ESDA/JEDEC JS-001, all pins(1) | ±2500 | V | |
| Charged device model (CDM), per JEDEC specification JESD22-C101, all pins(2) | ±1000 | ||||
(1) JEDEC document JEP155 states that 500-V HBM allows safe manufacturing with a standard ESD control process.
(2) JEDEC document JEP157 states that 250-V CDM allows safe manufacturing with a standard ESD control process.
6.3 Recommended Operating Conditions
over operating free-air temperature range (unless otherwise noted)| MIN | NOM | MAX | UNIT | ||
|---|---|---|---|---|---|
| Power supply voltage | 0.9 | 6.5 | V | ||
| Ambient Temperature, TA | –40 | 125 | °C | ||
6.4 Thermal Information
| THERMAL METRIC(1) | TLV3691 | UNIT | ||
|---|---|---|---|---|
| DCK (SC70) | DPF (X2SON) | |||
| 5 PINS | 6 PINS | |||
| RθJA | Junction-to-ambient thermal resistance | 297.4 | 252.4 | °C/W |
| RθJCtop | Junction-to-case (top) thermal resistance | 109.3 | 93.9 | °C/W |
| RθJB | Junction-to-board thermal resistance | 74.4 | 192.8 | °C/W |
| ψJT | Junction-to-top characterization parameter | 3 | 3 | °C/W |
| ψJB | Junction-to-board characterization parameter | 73.6 | 203.8 | °C/W |
| RθJCbot | Junction-to-case (bottom) thermal resistance | N/A | N/A | °C/W |
(1) For more information about traditional and new thermal metrics, see the Semiconductor and IC Package Thermal Metrics application report, SPRA953.
6.5 Electrical Characteristics
At TA = 25°C, VS = 0.9 V to 6.5 V, VCM = VS/2 and CL = 15 pF, unless otherwise noted.| PARAMETER | TEST CONDITIONS | MIN | TYP | MAX | UNIT | ||
|---|---|---|---|---|---|---|---|
| OFFSET VOLTAGE | |||||||
| VOS | Input offset voltage | TA = 25°C | ±3 | ±15 | mV | ||
| TA = –40°C to 125°C | ±22 | mV | |||||
| VHYS | Hysteresis | 17 | mV | ||||
| dVOS/dT | Input offset voltage drift | TA = –40°C to 125°C | ±70 | µV/°C | |||
| PSRR | Power-supply rejection ratio | TA = –40°C to 125°C | 2000 | µV/V | |||
| INPUT VOLTAGE RANGE | |||||||
| VCM | Common-mode voltage range | TA = –40°C to 125°C | (V–) – 0.1 | (V+) + 0.1 | V | ||
| Hysteresis | ±17 | mV | |||||
| INPUT BIAS CURRENT | |||||||
| IB | Input bias current | TA = 25°C | 30 | 100 | pA | ||
| TA = –40°C to 125°C | 20 | nA | |||||
| IOS | Input offset current | 8 | pA | ||||
| CLOAD | Capacitive load drive | See Typical Characteristics | |||||
| OUTPUT | |||||||
| VOH | Voltage output swing from upper rail | IO = 2.5 mA, input overdrive ≥ 50 mV, VS = 6.5 V | 155 | 165 | mV | ||
| IO = 2.5 mA, input overdrive ≥ 50 mV, VS = 6.5 V, TA = –40°C to 125°C |
220 | mV | |||||
| IO ≤ 100 µA, input overdrive ≥ 50 mV, VS = 6.5 V | 6 | 10 | mV | ||||
| IO ≤ 100 µA, input overdrive ≥ 50 mV, VS = 6.5 V, TA = –40°C to 125°C |
20 | mV | |||||
| IO ≤ 100 µA, input overdrive ≥ 50 mV, VS = 0.9 V | 70 | 75 | mV | ||||
| IO ≤ 100 µA, input overdrive ≥ 50 mV, VS = 0.9 V, TA = –40°C to 125°C |
80 | mV | |||||
| VOL | Voltage output swing from lower rail | IO = 2.5 mA, input overdrive ≥ 50 mV, VS = 6.5 V | 155 | 165 | mV | ||
| IO = 2.5 mA, input overdrive ≥ 50 mV, VS = 6.5 V, TA = –40°C to 125°C |
220 | mV | |||||
| IO ≤ 100 µA, input overdrive ≥ 50 mV, VS = 6.5 V | 6 | 10 | mV | ||||
| IO ≤ 100 µA, input overdrive ≥ 50 mV, VS = 6.5 V, TA = –40°C to 125°C |
20 | mV | |||||
| IO ≤ 100 µA, input overdrive ≥ 50 mV, VS = 0.9 V | 35 | 40 | mV | ||||
| IO ≤ 100 µA, input overdrive ≥ 50 mV, VS = 0.9 V, TA = –40°C to 125°C |
45 | mV | |||||
| ISC | Short circuit sink current | VS = 6.5 V, see Typical Characteristics | 42 | mA | |||
| Short circuit source current | VS = 6.5 V, see Typical Characteristics | 35 | mA | ||||
| POWER SUPPLY | |||||||
| VS | Specified voltage range | 0.9 | 6.5 | V | |||
| IQ | Quiescent current (per channel) | TA = 25°C | 75 | 150 | nA | ||
| TA = –40°C to 125°C | 200 | nA | |||||
| TEMPERATURE RANGE | |||||||
| Specified range | –40 | 125 | °C | ||||
| Operating range | –55 | 150 | °C | ||||
| Storage range | –65 | 150 | °C | ||||
6.6 Switching Characteristics
At TA = 25°C, VS = 0.9 V to 6.5 V, VCM = VS/2 and CL = 15 pF, unless otherwise noted.| PARAMETER | TEST CONDITIONS | MIN | TYP | MAX | UNIT | ||
|---|---|---|---|---|---|---|---|
| tPHL | Propagation delay time | High-to-low | VS = 6.5 V, Input overdrive = 50 mV | 32 | µs | ||
| VS = 0.9 V, Input overdrive = 50 mV | 45 | ||||||
| VS = 6.5 V, Input overdrive = 100 mV | 24 | ||||||
| VS = 0.9 V, Input overdrive = 100 mV | 35 | ||||||
| tPLH | Low-to-high | VS = 6.5 V, Input overdrive = 50 mV | 32 | ||||
| VS = 0.9 V, Input overdrive = 50 mV | 40 | ||||||
| VS = 6.5 V, Input overdrive = 100 mV | 24 | ||||||
| VS = 0.9 V, Input overdrive = 100 mV | 28 | ||||||
| tR | Rise time | Input overdrive = 100 mV | ns | ||||
| tF | Fall time | Input overdrive = 100 mV | 330 | ||||

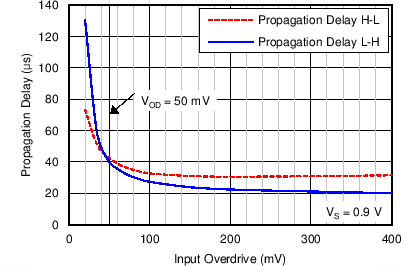

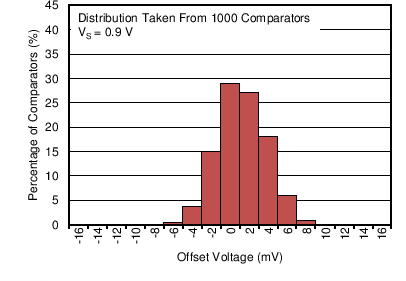

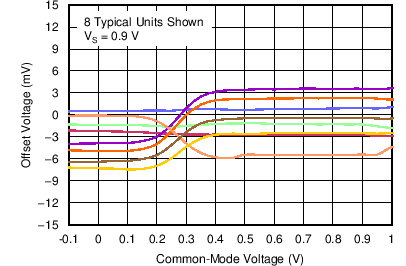

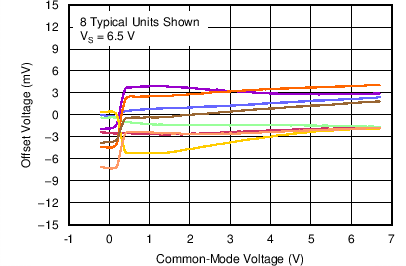

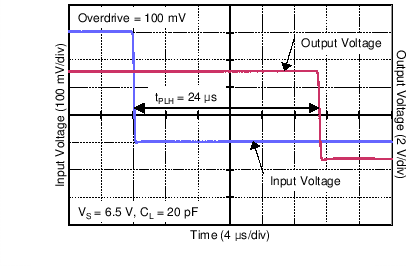

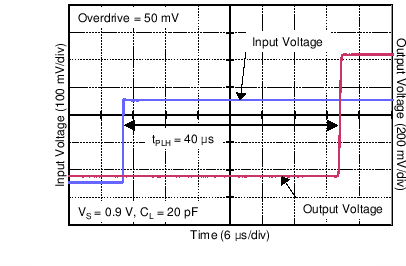

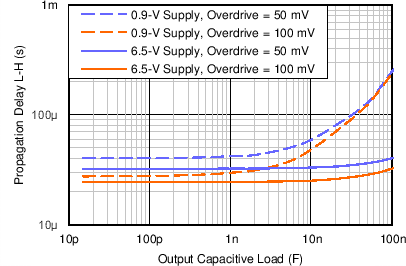

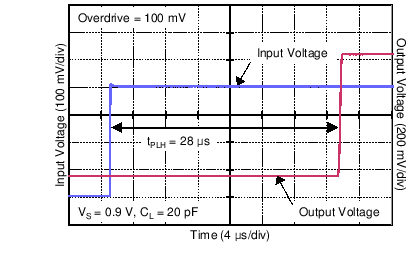

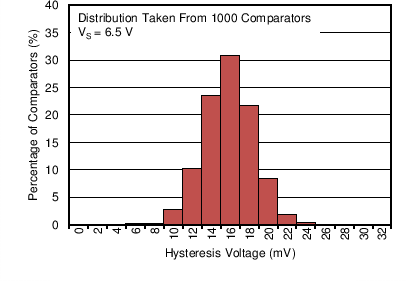

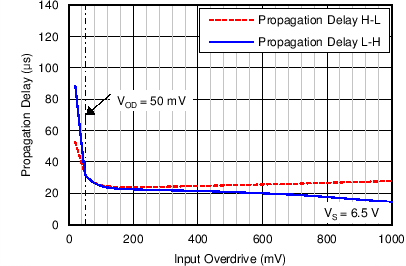

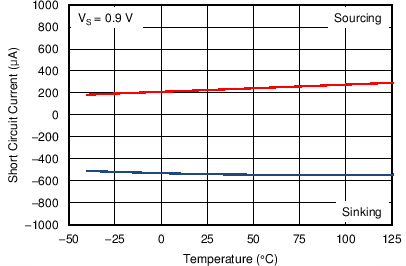

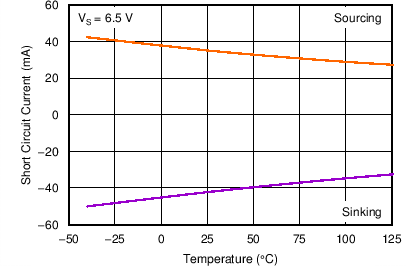

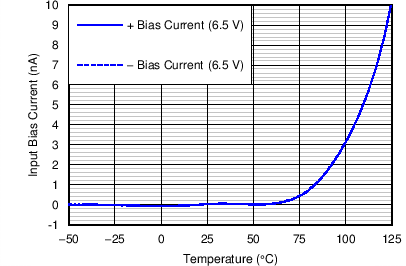

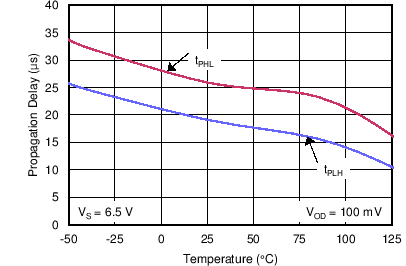

6.7 Typical Characteristics
At TA = 25°C, VS = 0.9 V to 6.5 V, and input overdrive = 100 mV, unless otherwise noted.

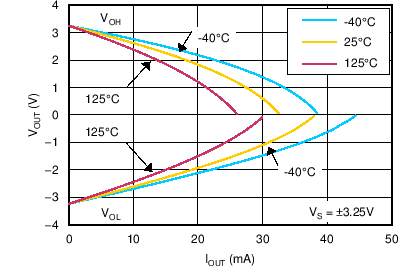

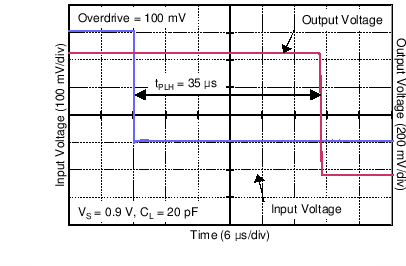

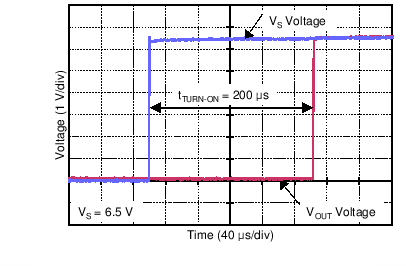

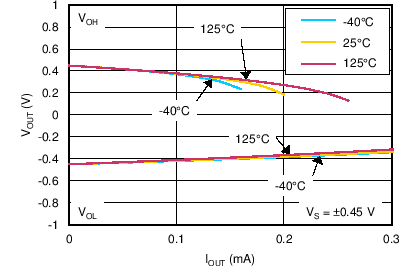

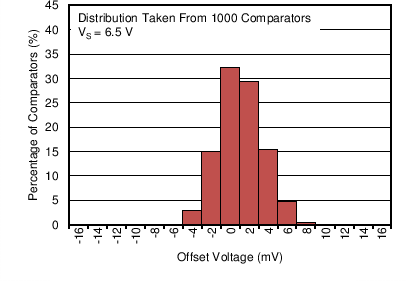

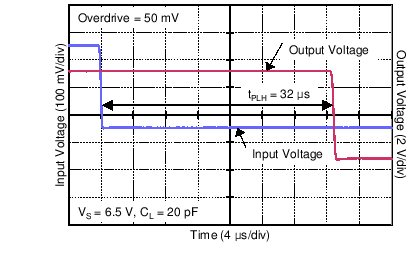

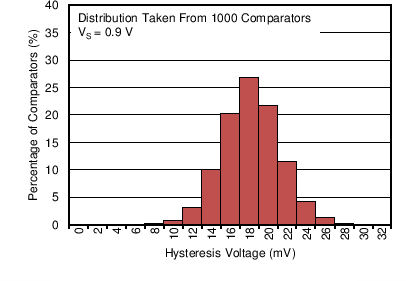

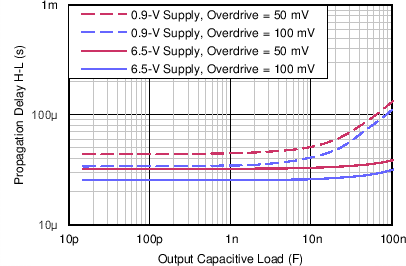

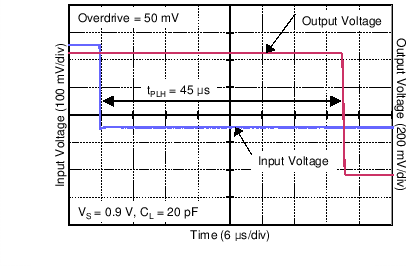

| VS = 0.9 V |
| VS = 0.9 V |
| VS = 0.9 V |

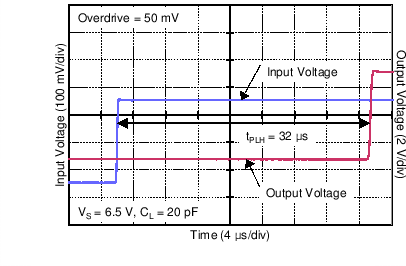

| VS = 0.9 V | Overdrive = 50 mV |
| VS = 6.5 V | Overdrive = 50 mV |

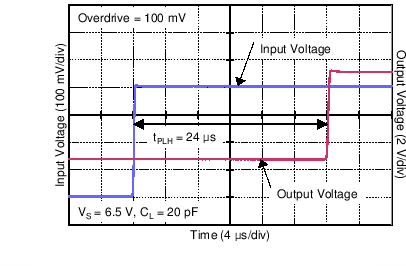

| VS = 0.9 V, | Overdrive = 100 mV |
| VS = 6.5 V | Overdrive = 100 mV |
| VS = 0.9 V |
| VS = 0.9 V |
| VS = 0.9 V |
| VS = 6.5 V |
| VS = 6.5 V |
| VS = 6.5 V |
| VS = 0.9 V | Overdrive = 50 mV |
| VS = 6.5 V | Overdrive = 50 mV |
| VS = 0.9 V | Overdrive = 100 mV |
| VS = 6.5 V | Overdrive = 100 mV |
| VS = 6.5 V |
| VS = 6.5 V |
| VS = 6.5 V |
