12 Layout
12.1 Layout Guidelines
PCB design is made considering the application, and the review is specific for each system requirements. However, general considerations can optimize the system performance.
- Analog and digital grounds must be separated to prevent possible digital noise from affecting the analog performance of the board.
- The TLV320AIC34 requires the decoupling capacitors to be placed as close as possible to the device power supply terminals.
- If possible, route the differential audio signals differentially on the PCB. TI recommends this for better noise immunity.
12.2 Layout Example

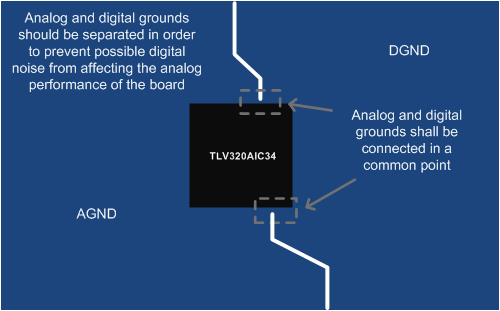

Figure 42. Ground Layer
Figure 43. Analog Digital Lines

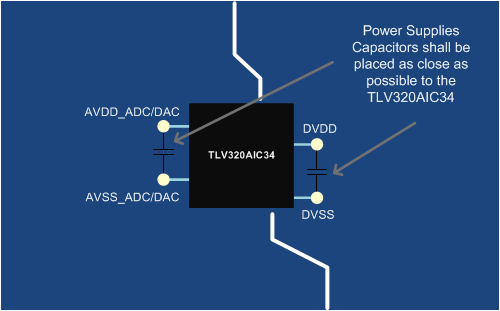

Figure 44. Power Supplies
