10 Application and Implementation
NOTE
Information in the following applications sections is not part of the TI component specification, and TI does not warrant its accuracy or completeness. TI’s customers are responsible for determining suitability of components for their purposes. Customers should validate and test their design implementation to confirm system functionality.
10.1 Application Information
The TLV320AIC34 device is a four-channel, low-power audio codec for portable audio and telephony. It features integrated stereo headphone or line amplifier, as well as multiple inputs and outputs that are programmable in single-ended or fully differential configurations. All the features of the TLV320AIC34 are accessed by programmable registers. External processor with I2C protocol is required to control the device. The protocol is selectable with external pin configuration. It is good practice to perform a hardware reset after initial power up to ensure that all registers are in their default states. Extensive register-based power control is included, enabling stereo 48-KHz DAC playback as low as 15 mW from a 3.3-V analog supply, making it ideal for portable battery-powered audio and telephony applications.
10.2 Typical Application

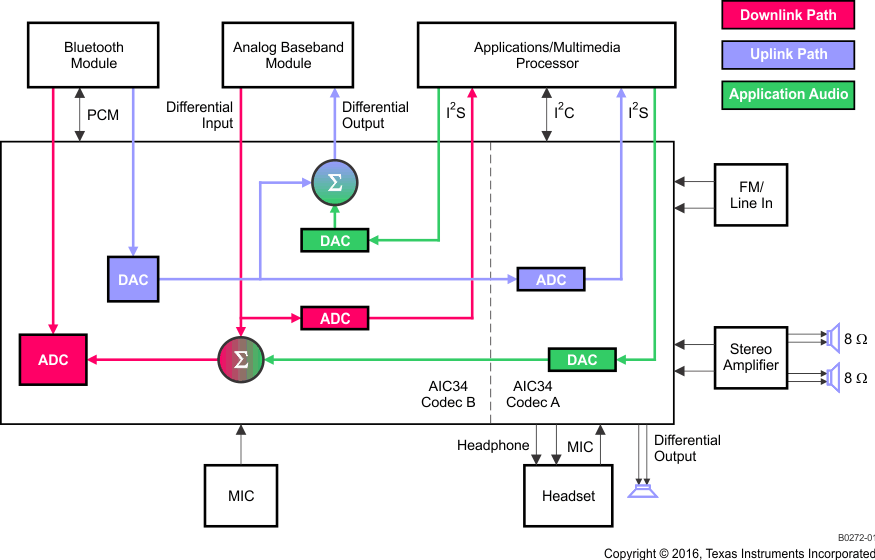

Figure 36. Bluetooth Call Recording Plus Application Audio Block Diagram
10.2.1 Design Requirements
Table 9 lists the design parameters for this application example.
Table 9. Design Parameters
| PARAMETER | VALUE |
|---|---|
| Supply voltage (AVDD, DRVDD) | 3.3 V |
| Supply voltage (DVDD, IOVDD) | 1.8 V |
| Analog high-power output driver load | 16 Ω |
| Analog fully differential line output driver load | 10 kΩ |
| Speaker output load resistance (Codec block A only) | 8 Ω |
10.2.2 Detailed Design Procedure
Using Figure 37 and Figure 38 as guides, integrate the hardware into the system.

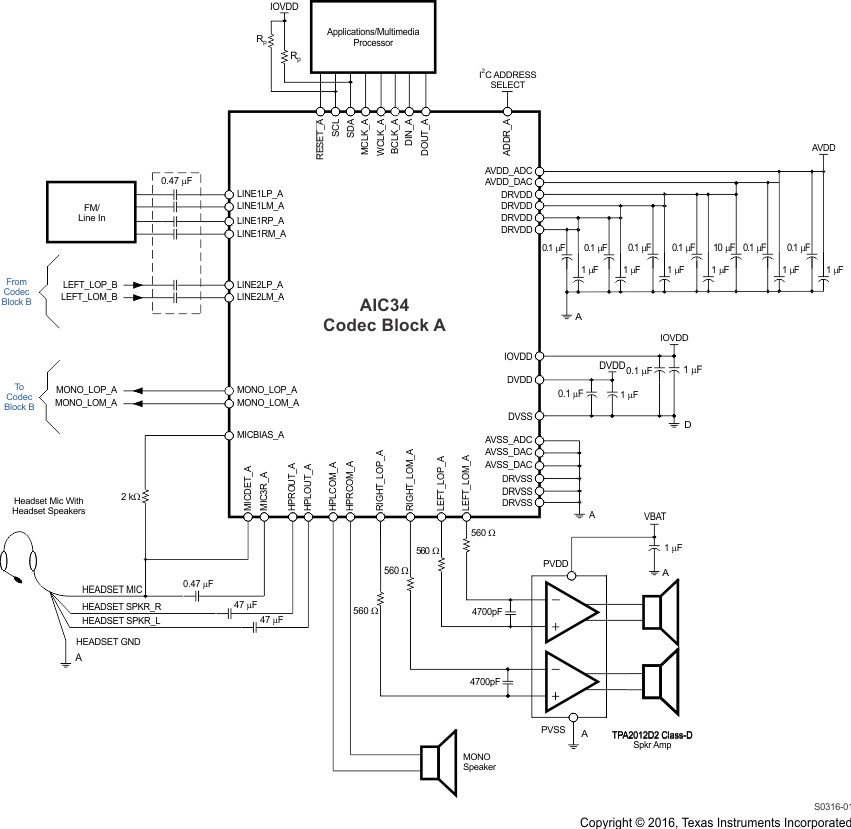

Figure 37. Typical Connections for TLV320AIC34 in Bluetooth Application (Sheet 1 of 2)

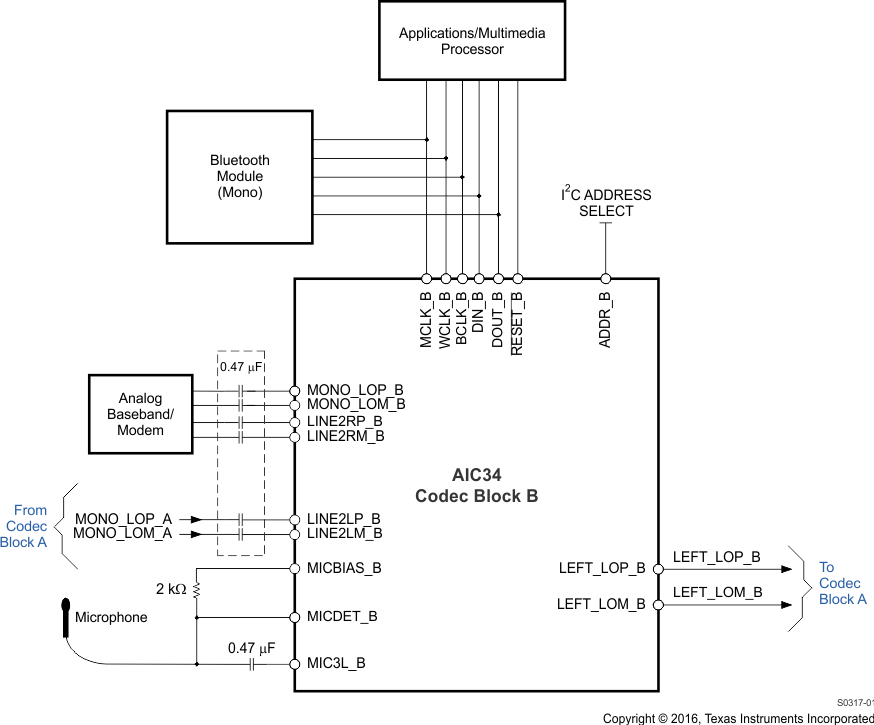

Figure 38. Typical Connections for TLV320AIC34 in Bluetooth Application (Sheet 2 of 2)
Following the recommended component placement, schematic layout and routing given in Layout. Integrate the device and its supporting components into the system PCB file. For questions and support, please visit the E2E forums (e2e.ti.com). If it is necessary to deviate from the recommended layout, visit E2E forum to request a layout review.
Determining sample rate and master clock frequency is required, because powering up the device as all internal timing is derived from the master clock. See Audio Clock Generation to get more information of how to configure correctly the required clocks for the device.
As the TLV320AIC34 is designed for low-power applications, when powered up the device has several features powered down. A correct routing of the TLV320AIC34 signals is achieved by a correct setting of the device registers, powering up the required stages of the device and configuring the internal switches to follow a desired route.
In cases where the TDM mode is required, it is necessary to ensure that all the devices take the samples at same time. So, TI recommends the following configuration steps to have all the TDM devices synchronized:
- Disable the I2S clocks (BCLK, WCLK)
- Apply a software reset
- Write the I2C commands for codec configuration (except unmuting the ADCs)
- Enable the I2S clocks
- Unmute the ADCs
For more information of the device configuration and programming, see the TLV320AIC34 technical documents section in ti.com (http://www.ti.com/product/TLV320AIC34/technicaldocuments).
10.2.3 Application Curves
Figure 39. Total Harmonic Distortionvs Headphone Out Power
Figure 40. MICBIAS_x Voltage vs Supply Voltage
