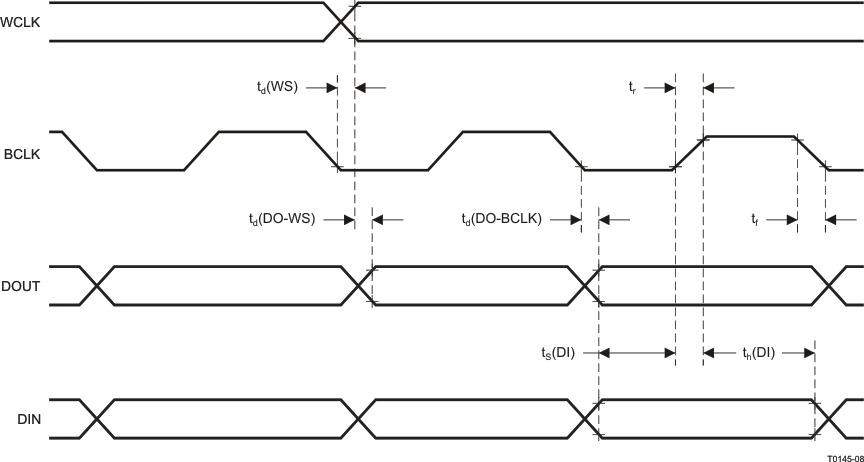

- 5.7 I2S, LJF, and RJF Timing in Master Mode

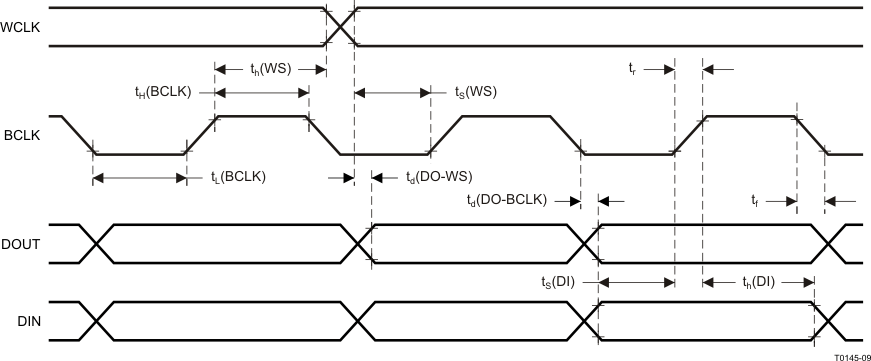

- 5.8 I2S, LJF, and RJF Timing in Slave Mode

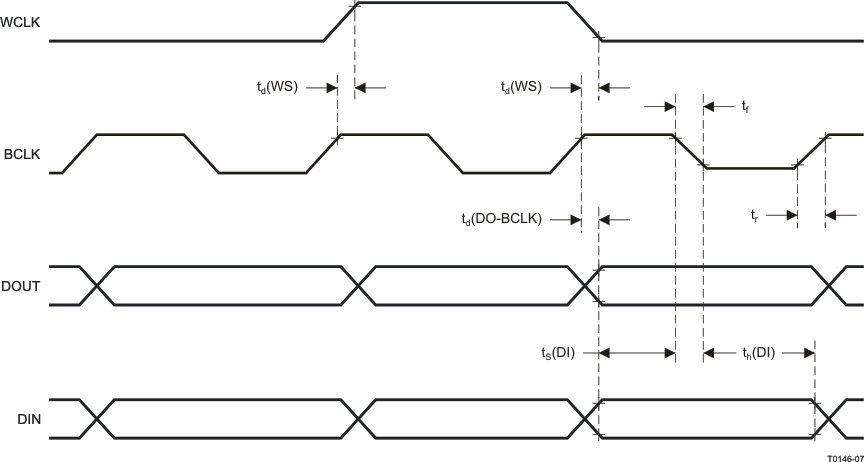

- 5.9 DSP Timing in Master Mode

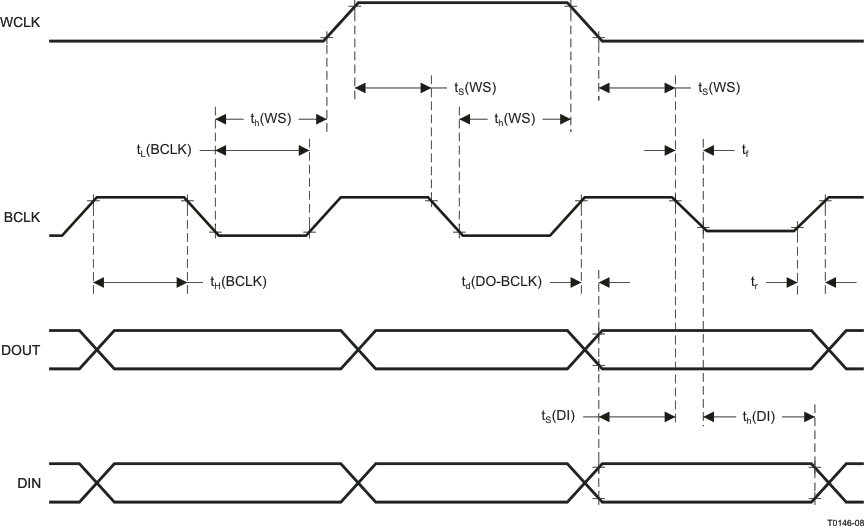

- 5.10 DSP Timing in Slave Mode
- 5.11 I2C Interface Timing

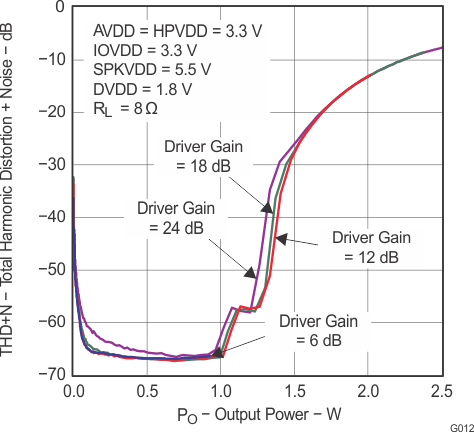

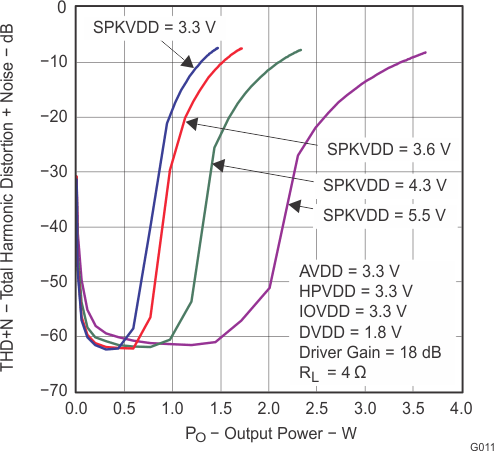

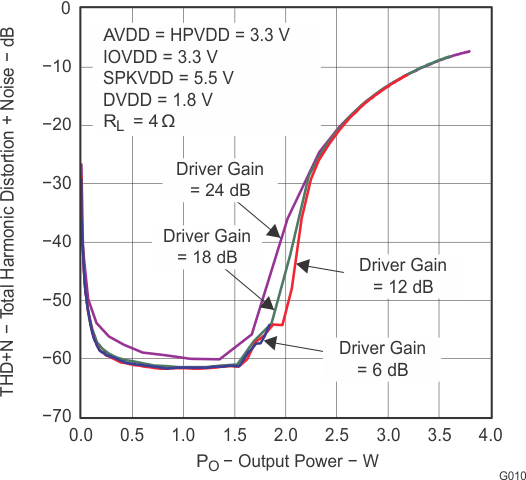

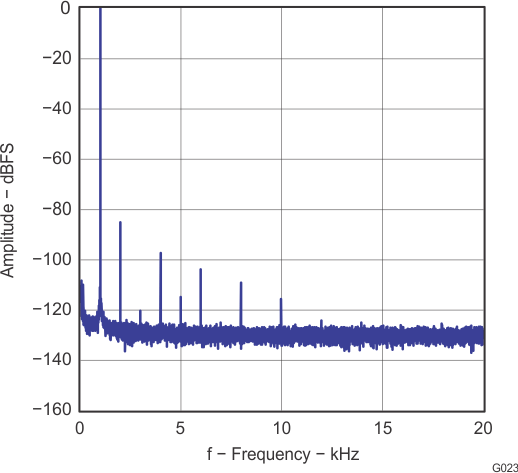

- 5.12 Typical Characteristics
- 6 Parameter Measurement Information
-
7 Detailed Description
- 7.1 Overview
- 7.2 Functional Block Diagram
- 7.3
Feature Description
- 7.3.1 Power-Supply Sequence
- 7.3.2 Reset
- 7.3.3 Device Start-Up Lockout Times
- 7.3.4 PLL Start-Up
- 7.3.5 Power-Stage Reset
- 7.3.6 Software Power Down
- 7.3.7 Audio Analog I/O
- 7.3.8 miniDSP
- 7.3.9 Digital Processing Low-Power Modes
- 7.3.10
Audio ADC and Analog Inputs
- 7.3.10.1 MICBIAS and Microphone Preamplifier
- 7.3.10.2 Automatic Gain Control (AGC)
- 7.3.10.3 Delta-Sigma ADC
- 7.3.10.4
ADC Decimation Filtering and Signal Processing
- 7.3.10.4.1 ADC Processing Blocks
- 7.3.10.4.2
ADC Processing Blocks - Signal Chain Details
- 7.3.10.4.2.1 First-Order IIR, AGC, Filter A
- 7.3.10.4.2.2 Five Biquads, First-Order IIR, AGC, Filter A
- 7.3.10.4.2.3 25-Tap FIR, First-Order IIR, AGC, Filter A
- 7.3.10.4.2.4 First-Order IIR, AGC, Filter B
- 7.3.10.4.2.5 Three Biquads, First-Order IIR, AGC, Filter B
- 7.3.10.4.2.6 20-Tap FIR, First-Order IIR, AGC, Filter B
- 7.3.10.4.2.7 First-Order IIR, AGC, Filter C
- 7.3.10.4.2.8 Five Biquads, First-Order IIR, AGC, Filter C
- 7.3.10.4.2.9 25-Tap FIR, First-Order IIR, AGC, Filter C
- 7.3.10.4.3 User-Programmable Filters
- 7.3.10.4.4 ADC Digital Decimation Filter Characteristics
- 7.3.10.4.5 ADC Data Interface
- 7.3.10.5 Updating ADC Digital Filter Coefficients During Record
- 7.3.10.6 Digital Microphone Function
- 7.3.10.7 DC Measurement
- 7.3.10.8 ADC Setup
- 7.3.11 Example Register Setup to Record Analog Data Through ADC to Digital Out
- 7.3.12
Audio DAC and Audio Analog Outputs
- 7.3.12.1
DAC
- 7.3.12.1.1 DAC Processing Blocks
- 7.3.12.1.2
DAC Processing Blocks — Signal Chain Details
- 7.3.12.1.2.1 Three Biquads, Filter A
- 7.3.12.1.2.2 Six Biquads, First-Order IIR, DRC, Filter A or B
- 7.3.12.1.2.3 Six Biquads, First-Order IIR, Filter A or B
- 7.3.12.1.2.4 IIR, Filter B or C
- 7.3.12.1.2.5 Four Biquads, DRC, Filter B
- 7.3.12.1.2.6 Four Biquads, Filter B
- 7.3.12.1.2.7 Four Biquads, First-Order IIR, DRC, Filter C
- 7.3.12.1.2.8 Four Biquads, First-Order IIR, Filter C
- 7.3.12.1.2.9 Five Biquads, DRC, Beep Generator, Filter A
- 7.3.12.1.3 DAC User-Programmable Filters
- 7.3.12.1.4 DAC Interpolation Filter Characteristics
- 7.3.12.2 DAC Digital-Volume Control
- 7.3.12.3 Volume Control Pin
- 7.3.12.4 Dynamic Range Compression
- 7.3.12.5 Headset Detection
- 7.3.12.6 Interrupts
- 7.3.12.7 Key-Click Functionality With Beep Generator (PRB_P25)
- 7.3.12.8 Programming DAC Digital Filter Coefficients
- 7.3.12.9 Updating DAC Digital Filter Coefficients During PLAY
- 7.3.12.10 Digital Mixing and Routing
- 7.3.12.11 Analog Audio Routing
- 7.3.12.12 Analog Outputs
- 7.3.12.13 Audio-Output Stage-Power Configurations
- 7.3.12.14 DAC Setup
- 7.3.12.15 Example Register Setup to Play Digital Data Through DAC and Headphone/Speaker Outputs
- 7.3.12.1
DAC
- 7.3.13 CLOCK Generation and PLL
- 7.3.14 Timer
- 7.3.15 Digital Audio and Control Interface
- 7.4
Register Map
- 7.4.1 TLV320AIC3120 Register Map
- 7.4.2
Registers
- 7.4.2.1 Control Registers, Page 0 (Default Page): Clock Multipliers, Dividers, Serial Interfaces, Flags, Interrupts, and GPIOs
- 7.4.2.2 Control Registers, Page 1: DAC and ADC Routing, PGA, Power-Controls, and MISC Logic-Related Programmability
- 7.4.2.3 Control Registers, Page 3: MCLK Divider for Programmable Delay Timer
- 7.4.2.4 Control Registers, Page 4: ADC Digital Filter Coefficients
- 7.4.2.5 Control Registers, Page 5: ADC Programmable Coefficients RAM (65:127)
- 7.4.2.6 Control Registers, Page 8: DAC Programmable Coefficients RAM Buffer A (1:63)
- 7.4.2.7 Control Registers, Page 9: DAC Programmable Coefficients RAM Buffer A (65:127)
- 7.4.2.8 Control Registers, Page 10: DAC Programmable Coefficients RAM Buffer A (129:191)
- 7.4.2.9 Control Registers, Page 11: DAC Programmable Coefficients RAM Buffer A (193:255)
- 7.4.2.10 Control Registers, Page 12: DAC Programmable Coefficients RAM Buffer B (1:63)
- 7.4.2.11 Control Registers, Page 13: DAC Programmable Coefficients RAM Buffer B (65:127)
- 7.4.2.12 Control Registers, Page 14: DAC Programmable Coefficients RAM Buffer B (129:191)
- 7.4.2.13 Control Registers, Page 15: DAC Programmable Coefficients RAM Buffer B (193:255)
- 7.4.2.14 Control Registers, Page 32: ADC DSP Engine Instruction RAM (0:31)
- 7.4.2.15 Control Registers, Pages 33-43: ADC DSP Engine Instruction RAM (32:63) Through (352:383)
- 7.4.2.16 Control Registers, Page 64: DAC DSP Engine Instruction RAM (0:31)
- 7.4.2.17 Control Registers, Pages 65 to 95: DAC DSP Engine Instruction RAM (32:63) Through (992:1023)
- 8 Application and Implementation
- 9 Power Supply Recommendations
- 10Layout
- 11Device and Documentation Support
- 12Mechanical Packaging and Orderable Information
封裝選項
機械數據 (封裝 | 引腳)
- RHB|32
散熱焊盤機械數據 (封裝 | 引腳)
- RHB|32
訂購信息
5 Specifications
5.1 Absolute Maximum Ratings
over operating free-air temperature range (unless otherwise noted) (1)| MIN | MAX | UNIT | ||
|---|---|---|---|---|
| AVDD to AVSS | –0.3 | 3.9 | V | |
| DVDD to DVSS | –0.3 | 2.5 | V | |
| HPVDD to HPVSS | –0.3 | 3.9 | V | |
| SPKVDD to SPKVSS | –0.3 | 6 | V | |
| IOVDD to IOVSS | –0.3 | 3.9 | V | |
| Digital input voltage | IOVSS – 0.3 | IOVDD + 0.3 | V | |
| Analog input voltage | AVSS – 0.3 | AVDD + 0.3 | V | |
| Operating temperature | –40 | 85 | °C | |
| Junction temperature (TJ Max) | 105 | °C | ||
| Storage temperature, Tstg | –55 | 150 | °C | |
| Power dissipation | (TJ Max – TA) / RθJA | °C | ||
| RθJA Thermal impedance (with thermal pad soldered to board) | 35 | °C/W | ||
(1) Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under Recommended Operating Conditions is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
5.2 ESD Ratings
| VALUE | UNIT | |||
|---|---|---|---|---|
| V(ESD) | Electrostatic discharge | Human-body model (HBM), per ANSI/ESDA/JEDEC JS-001(1) | ±2000 | V |
| Charged-device model (CDM), per JEDEC specification JESD22-C101(2) | ±1000 | |||
(1) JEDEC document JEP155 states that 500-V HBM allows safe manufacturing with a standard ESD control process.
(2) JEDEC document JEP157 states that 250-V CDM allows safe manufacturing with a standard ESD control process.
5.3 Recommended Operating Conditions
over operating free-air temperature range (unless otherwise noted)| MIN | NOM | MAX | UNIT | |||
|---|---|---|---|---|---|---|
| AVDD(2) | Power-supply voltage | Referenced to AVSS(1) | 2.7 | 3.3 | 3.6 | V |
| DVDD | Referenced to DVSS(1) | 1.65 | 1.8 | 1.95 | ||
| HPVDD | Referenced to HPVSS(1) | 2.7 | 3.3 | 3.6 | ||
| SPKVDD(2) | Referenced to SPKVSS(1) | 2.7 | 5.5 | |||
| IOVDD | Referenced to IOVSS(1) | 1.1 | 3.3 | 3.6 | ||
| Speaker impedance | Resistance applied across class-D ouput pins (BTL) | 4 | Ω | |||
| Headphone impedance | AC coupled to RL | 16 | Ω | |||
| VI | Analog audio full-scale input voltage | AVDD = 3.3 V, single-ended | 0.707 | VRMS | ||
| Mono line output load impedance | AC coupled to RL | 10 | kΩ | |||
| MCLK(3) | Master clock frequency | IOVDD = 3.3 V | 50 | MHz | ||
| SCL | SCL clock frequency | 400 | kHz | |||
| TA | Operating free-air temperature | –40 | 85 | °C | ||
(1) All grounds on board are tied together, so they must not differ in voltage by more than 0.2-V maximum for any combination of ground signals. By use of a wide trace or ground plane, ensure a low-impedance connection between HPVSS and DVSS.
(2) To minimize battery-current leakage, the SPKVDD voltage level must not be below the AVDD voltage level.
(3) The maximum input frequency must be 50 MHz for any digital pin used as a general-purpose clock.
5.4 Thermal Information
| THERMAL METRIC(1) | TLV320AIC3120 | UNIT | ||
|---|---|---|---|---|
| RHB (VQFN) | ||||
| 32 PINS | ||||
| RθJA | Junction-to-ambient thermal resistance | 32.7 | °C/W | |
| RθJC(top) | Junction-to-case (top) thermal resistance | 23.2 | °C/W | |
| RθJB | Junction-to-board thermal resistance | 6.6 | °C/W | |
| ψJT | Junction-to-top characterization parameter | 0.3 | °C/W | |
| ψJB | Junction-to-board characterization parameter | 6.5 | °C/W | |
| RθJC(bot) | Junction-to-case (bottom) thermal resistance | 2 | °C/W | |
(1) For more information about traditional and new thermal metrics, see the Semiconductor and IC Package Thermal Metrics application report.
5.5 Electrical Characteristics
At 25°C, AVDD = HPVDD = IOVDD = 3.3 V, SPKVDD = 3.6V, DVDD = 1.8 V, fS (audio) = 48 kHz, CODEC_CLKIN = 256 × fS, PLL = Off, VOL/MICDET pin disabled (unless otherwise noted)| PARAMETER | TEST CONDITIONS | MIN | TYP | MAX | UNIT | |
|---|---|---|---|---|---|---|
| INTERNAL OSCILLATOR-RC_CLK | ||||||
| Oscillator frequency | 8.2 | MHz | ||||
| VOLUME CONTROL PIN (ADC); VOL/MICDET pin enabled | ||||||
| Input voltage range | VOL/MICDET pin configured as volume control (page 0 / register 116, bit D7 = 1 and page 0 / register 67, bit D7 = 0) | 0 | 0.5 x AVDD | V | ||
| Input capacitance | 2 | pF | ||||
| Volume control steps | 128 | Steps | ||||
| AUDIO ADC | ||||||
| Microphone Input to ADC, 984-Hz Sine-Wave Input, fS = 48 kHz, AGC = OFF | ||||||
| Input signal level (0-dB) | MIC with R1 = 20 kΩ (page 1 / register 48 and register 49, bits D7-D6) | 0.707 | VRMS | |||
| SNR | Signal-to-noise ratio | fS = 48 kHz, 0-dB PGA gain, MIC input ac-shorted to ground; measured as idle-channel noise, A-weighted(1) (2) | 80 | 91 | dB | |
| Dynamic range | fS = 48 kHz, 0-dB PGA gain, MIC input 1 kHz at –60-dBFS input applied, referenced to 0.707-VRMS input, A-weighted(1) (2) | 91 | dB | |||
| THD+N | Total harmonic distortion + noise | fS = 48 kHz, 0-dB PGA gain, MIC input 1 kHz at –2 dBFS input applied, referenced to 0.707-VRMS input | –85 | –70 | dB | |
| THD | Total harmonic distortion | fS = 48 kHz, 0-dB PGA gain, MIC input 1 kHz at –2 dBFS input applied, referenced to 0.707-VRMS input | –91 | dB | ||
| Input capacitance | MIC input | 2 | pF | |||

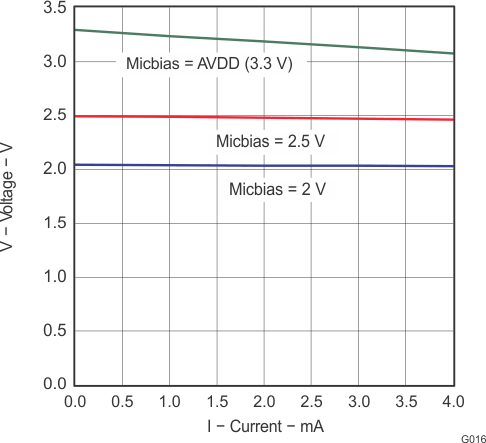

| Microphone Bias | ||||||
| Voltage output | Page 1 / register 46, bits D1–D0 = 10 | 2.25 | 2.5 | 2.75 | V | |
| Page 1 / register 46, bits D1–D0 = 01 | 2 | |||||
| Voltage regulation | At 4-mA load current, page 1 / register 46, bits D1–D0 = 10 (MICBIAS = 2.5 V) | 5 | mV | |||
| At 4-mA load current, page 1 / register 46, bits D1–D0 = 01 (MICBIAS = 2 V) | 7 | |||||
| Audio ADC Digital Decimation Filter Characteristics | ||||||
| See Section 7.3.10.4.4 for audio ADC decimation filter characteristics. | ||||||
| DAC HEADPHONE OUTPUT, AC-coupled load = 16 Ω (single-ended), driver gain = 0 dB, parasitic capacitance = 30 pF | ||||||
| Full-scale output voltage (0 dB) | Output common-mode setting = 1.65 V | 0.707 | VRMS | |||
| SNR | Signal-to-noise ratio | Measured as idle-channel noise, A-weighted(1) (2) | 80 | 95 | dB | |
| THD | Total harmonic distortion | 0-dBFS input | –85 | –65 | dB | |
| THD+N | Total harmonic distortion + noise | 0-dBFS input | –82 | –60 | dB | |
| Mute attenuation | 87 | dB | ||||
| PSRR | Power-supply rejection ratio(4) | Ripple on HPVDD (3.3 V) = 200 mVp-p at 1 kHz | –62 | dB | ||
| PO | Maximum output power | RL = 32 Ω, THD+N = –60 dB | 20 | mW | ||
| RL = 16 Ω, THD+N = –60 dB | 60 | |||||
| DAC LINEOUT (HP Driver in Lineout Mode) | ||||||
| SNR | Signal-to-noise ratio | Measured as idle-channel noise, A-weighted | 95 | dB | ||
| THD | Total harmonic distortion | 0-dBFS input, 0-dB gain | –86 | dB | ||
| THD+N | Total harmonic distortion + noise | 0-dBFS input, 0-dB gain | –83 | dB | ||
| DAC Digital Interpolation Filter Characteristics | ||||||
| See Section 7.3.12.1.4 for DAC interpolation filter characteristics. | ||||||
| DAC Output to Class-D SPEAKER OUTPUT; Load = 4 Ω (Differential), 50 pF | ||||||
| Output voltage | SPKVDD = 3.6 V, BTL measurement, DAC input = 0 dBFS, CM = 1.8 V, class-D gain = 6 dB, THD = –16.5 dB | 2.3 | VRMS | |||
| SPKVDD = 3.6 V, BTL measurement, DAC input = –2 dBFS, CM = 1.8 V, class-D gain = 6 dB, THD = –20 dB | 2.1 | |||||
| Output, common-mode | SPKVDD = 3.6 V, BTL measurement, DAC input = mute, class-D gain = 6 dB | 1.8 | V | |||
| SNR | Signal-to-noise ratio | SPKVDD = 3.6 V, BTL measurement, class-D gain = 6 dB, measured as idle-channel noise, A-weighted (with respect to full-scale output value of 2.3 VRMS)(1) (2) | 88 | dB | ||
| THD | Total harmonic distortion | –65 | dB | |||
| THD+N | Total harmonic distortion + noise | SPKVDD = 3.6 V, BTL measurement, DAC input = –6 dBFS, CM = 1.8 V, class-D gain = 6 dB | –63 | dB | ||
| PSRR | Power-supply rejection ratio(3) | SPKVDD = 3.6 V, BTL measurement, ripple on SPKVDD = 200 mVp-p at 1 kHz | –44 | dB | ||
| Mute attenuation | 110 | dB | ||||
| PO | Maximum output power | SPKVDD = 3.6 V, BTL measurement, CM = 1.8 V, class-D gain = 18 dB, THD = 10% | 1 | W | ||
| SPKVDD = 4.3 V, BTL measurement, CM = 1.8 V, class-D gain = 18 dB, THD = 10% | 1.5 | W | ||||
| SPKVDD = 5.5 V, BTL measurement, CM = 1.8 V, class-D gain = 18 dB, THD = 10% | 2.5 | W | ||||
| DAC OUTPUT to CLASS-D SPEAKER OUTPUT; Load = 8 Ω (Differential), 50 pF | ||||||
| Output voltage | SPKVDD = 3.6 V, BTL measurement, DAC input = 0 dBFS, CM = 1.8 V, class-D gain = 6 dB, THD = –16.5 dB | 2.2 | VRMS | |||
| SPKVDD = 3.6 V, BTL measurement, DAC input = –2 dBFS, CM = 1.8 V, class-D gain = 6 dB, THD = –20 dB | 2.1 | VRMS | ||||
| Output, common-mode | SPKVDD = 3.6 V, BTL measurement, DAC input = mute, class-D gain = 6 dB | 1.8 | V | |||
| SNR | Signal-to-noise ratio | SPKVDD = 3.6 V, BTL measurement, class-D gain = 6 dB, measured as idle-channel noise, A-weighted (with respect to full-scale output value of 2.2 VRMS) | 87 | dB | ||
| THD | Total harmonic distortion | SPKVDD = 3.6 V, BTL measurement, DAC input = –6 dBFS, CM = 1.8 V, class-D gain = 6 dB | –67 | dB | ||
| THD+N | Total harmonic distortion + noise | SPKVDD = 3.6 V, BTL measurement, DAC input = –6 dBFS, CM = 1.8 V, class-D gain = 6 dB | –66 | dB | ||
| PSRR | Power-supply rejection ratio(3) | SPKVDD = 3.6 V, BTL measurement, ripple on SPKVDD = 200 mVp-p at 1 kHz | –44 | dB | ||
| Mute attenuation | 110 | dB | ||||
| PO | Maximum output power | SPKVDD = 3.6 V, BTL measurement, CM = 1.8 V, class-D gain = 18 dB, THD = 10% | 0.7 | W | ||
| SPKVDD = 4.3 V, BTL measurement, CM = 1.8 V, class-D gain = 18 dB, THD = 10% | 1 | |||||
| SPKVDD = 5.5 V, BTL measurement, CM = 1.8 V, class-D gain = 18 dB, THD = 10% | 1.6 | |||||
| Output-stage leakage current for direct battery connection | SPKVDD = 4.3 V, device is powered down (power-up-reset condition) | 80 | nA | |||
| ADC and DAC POWER CONSUMPTION | ||||||
| For ADC and DAC power consumption based per selected processing block, see Section 7.3.9. | ||||||
| DIGITAL INPUT/OUTPUT | ||||||
| Logic family | CMOS | |||||
| VIH | Logic Level | IIH = 5 µA, IOVDD = 1.6 V | 0.7 × IOVDD | V | ||
| IIH = 5 µA, IOVDD = 1.6 V | IOVDD | |||||
| VIL | IIL = 5 µA, IOVDD = 1.6 V | –0.3 | 0.3 × IOVDD | |||
| IIL = 5 µA, IOVDD = 1.6 V | 0 | |||||
| VOH | IOH = 2 TTL loads | 0.8 × IOVDD | ||||
| VOL | IOL = 2 TTL loads | 0.1 × IOVDD | ||||
| Capacitive load | 10 | pF | ||||
(1) Ratio of output level with 1-kHz full-scale sine-wave input, to the output level with the inputs short-circuited, measured A-weighted over a 20-Hz to 20-kHz bandwidth using an audio analyzer.
(2) All performance measurements done with 20-kHz low-pass filter and, where noted, A-weighted filter. Failure to use such a filter may result in higher THD+N and lower SNR and dynamic range readings than shown in the Electrical Characteristics. The low-pass filter removes out-of-band noise, which, although not audible, may affect dynamic specification values.
(3) DAC to speaker-out PSRR is a differential measurement calculated as PSRR = 20 × log(ΔVSPK(P + M) / ΔVSPKVDD).
(4) DAC to headphone-out PSRR measurement is calculated as PSRR = 20 × log(ΔVHPOUT / ΔVHPVDD).
5.6 Power Dissipation Ratings(1)
This data was taken using 2-oz. (0,071-mm thick) trace and copper pad that is soldered to a JEDEC high-K, standard 4-layer 3-inch × 3-inch (7,62-cm × 7,62-cm) PCB.| Power Rating at 25°C | Derating Factor | Power Rating at 70°C | Power Rating at 85°C |
|---|---|---|---|
| 2.3 W | 28.57 mW/°C | 1 W | 0.6 W |
(1) Maximum power dissipation is TJMAX – TA) / RθJA
5.7 I2S, LJF, and RJF Timing in Master Mode
All specifications at 25°C, DVDD = 1.8 V. Note: All timing specifications are measured at characterization but not tested at final test. See Figure 5-1.| PARAMETER | IOVDD = 1.1 V | IOVDD = 3.3 V | UNIT | |||
|---|---|---|---|---|---|---|
| MIN | MAX | MIN | MAX | |||
| td(WS) | WCLK delay | 45 | 20 | ns | ||
| td(DO-WS) | WCLK to DOUT delay (for LJF mode only) | 45 | 20 | ns | ||
| td(DO-BCLK) | BCLK to DOUT delay | 45 | 20 | ns | ||
| ts(DI) | DIN setup | 8 | 6 | ns | ||
| th(DI) | DIN hold | 8 | 6 | ns | ||
| tr | Rise time | 25 | 10 | ns | ||
| tf | Fall time | 25 | 10 | ns | ||
5.8 I2S, LJF, and RJF Timing in Slave Mode
All specifications at 25°C, DVDD = 1.8 V. Note: All timing specifications are measured at characterization but not tested at final test. See Figure 5-2.| PARAMETER | IOVDD = 1.1 V | IOVDD = 3.3 V | UNIT | |||
|---|---|---|---|---|---|---|
| MIN | MAX | MIN | MAX | |||
| tH(BCLK) | BCLK high period | 35 | 35 | ns | ||
| tL(BCLK) | BCLK low period | 35 | 35 | ns | ||
| ts(WS) | WCLK setup | 8 | 6 | ns | ||
| th(WS) | WCLK hold | 8 | 6 | ns | ||
| td(DO-WS) | WCLK to DOUT delay (for LJF mode only) | 45 | 20 | ns | ||
| td(DO-BCLK) | BCLK to DOUT delay | 45 | 20 | ns | ||
| ts(DI) | DIN setup | 8 | 6 | ns | ||
| th(DI) | DIN hold | 8 | 6 | ns | ||
| tr | Rise time | 4 | 4 | ns | ||
| tf | Fall time | 4 | 4 | ns | ||
5.9 DSP Timing in Master Mode
All specifications at 25°C, DVDD = 1.8 V. Note: All timing specifications are measured at characterization but not tested at final test. See Figure 5-3.| PARAMETER | IOVDD = 1.1 V | IOVDD = 3.3 V | UNIT | |||
|---|---|---|---|---|---|---|
| MIN | MAX | MIN | MAX | |||
| td(WS) | WCLK delay | 45 | 20 | ns | ||
| td(DO-BCLK) | BCLK to DOUT delay | 45 | 20 | ns | ||
| ts(DI) | DIN setup | 8 | 8 | ns | ||
| th(DI) | DIN hold | 8 | 8 | ns | ||
| tr | Rise time | 25 | 10 | ns | ||
| tf | Fall time | 25 | 10 | ns | ||
5.10 DSP Timing in Slave Mode
All specifications at 25°C, DVDD = 1.8 V. Note: All timing specifications are measured at characterization but not tested at final test. See Figure 5-4.| PARAMETER | IOVDD = 1.1 V | IOVDD = 3.3 V | UNIT | |||
|---|---|---|---|---|---|---|
| MIN | MAX | MIN | MAX | |||
| tH(BCLK) | BCLK high period | 35 | 35 | ns | ||
| tL(BCLK) | BCLK low period | 35 | 35 | ns | ||
| ts(WS) | WCLK setup | 8 | 8 | ns | ||
| th(WS) | WCLK hold | 8 | 8 | ns | ||
| td(DO-BCLK) | BCLK to DOUT delay | 45 | 20 | ns | ||
| ts(DI) | DIN setup | 8 | 8 | ns | ||
| th(DI) | DIN hold | 8 | 8 | ns | ||
| tr | Rise time | 4 | 4 | ns | ||
| tf | Fall time | 4 | 4 | ns | ||
5.11 I2C Interface Timing
All specifications at 25°C, DVDD = 1.8 V. Note: All timing specifications are measured at characterization.See Figure 5-5.| PARAMETER | Standard Mode | Fast Mode | UNIT | |||||
|---|---|---|---|---|---|---|---|---|
| MIN | TYP | MAX | MIN | TYP | MAX | |||
| fSCL | SCL clock frequency | 0 | 100 | 0 | 400 | kHz | ||
| tHD;STA | Hold time (repeated) START condition. After this period, the first clock pulse is generated. | 4 | 0.8 | μs | ||||
| tLOW | LOW period of the SCL clock | 4.7 | 1.3 | μs | ||||
| tHIGH | HIGH period of the SCL clock | 4 | 0.6 | μs | ||||
| tSU;STA | Setup time for a repeated START condition | 4.7 | 0.8 | μs | ||||
| tHD;DAT | Data hold time: for I2C bus devices | 0 | 3.45 | 0 | 0.9 | μs | ||
| tSU;DAT | Data set-up time | 250 | 100 | ns | ||||
| tr | SDA and SCL rise time | 1000 | 20 + 0.1Cb | 300 | ns | |||
| tf | SDA and SCL fall time | 300 | 20 + 0.1Cb | 300 | ns | |||
| tSU;STO | Set-up time for STOP condition | 4 | 0.8 | μs | ||||
| tBUF | Bus free time between a STOP and START condition | 4.7 | 1.3 | μs | ||||
| Cb | Capacitive load for each bus line | 400 | 400 | pF | ||||
Figure 5-1 I2S/LJF/RJF Timing in Master Mode
Figure 5-2 I2S/LJF/RJF Timing in Slave Mode
Figure 5-3 DSP Timing in Master Mode
Figure 5-4 DSP Timing in Slave Mode

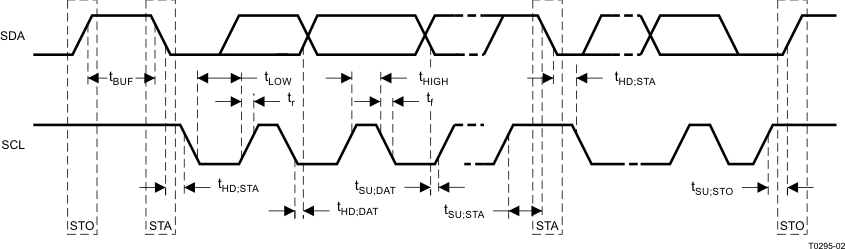

Figure 5-5 I2C Interface Timing Diagram
5.12 Typical Characteristics
5.12.1 Audio ADC Performance

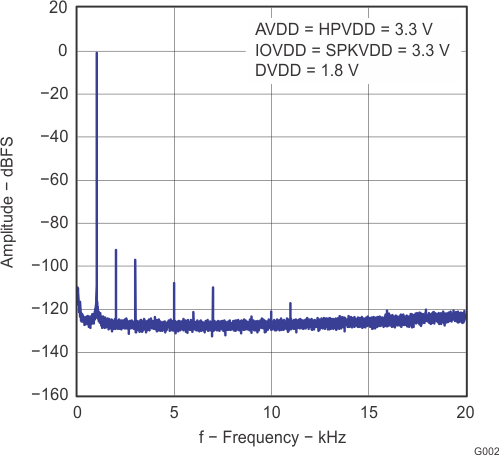

Figure 5-8 Amplitude vs FrequencyFFT – ADC Differential Input

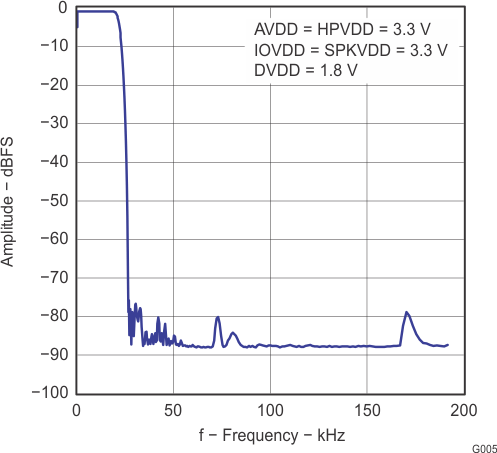

Figure 5-10 Amplitude vs Frequency

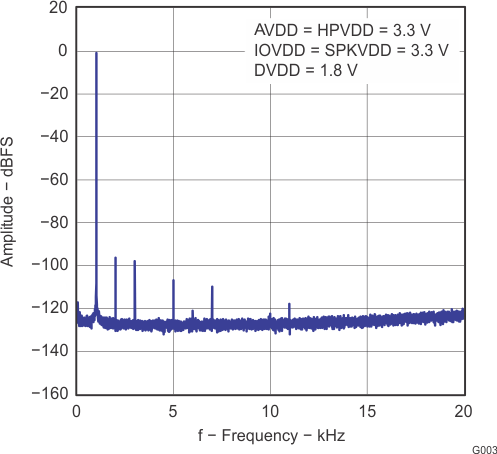

Figure 5-7 Amplitude vs FrequencyFFT – ADC Single-Ended Input

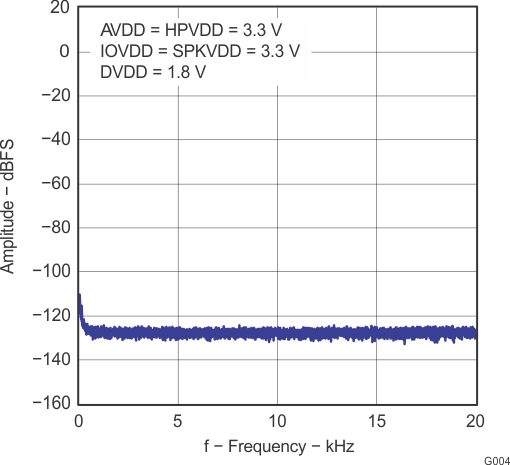

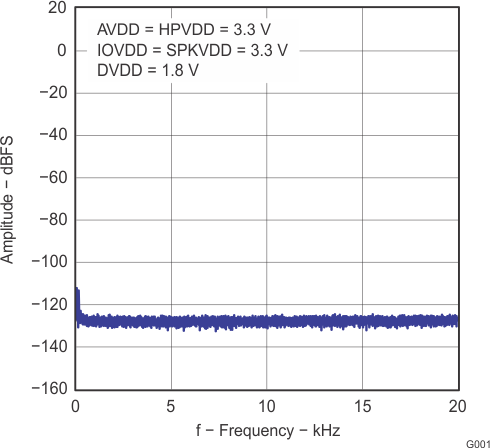

Figure 5-9 Amplitude vs FrequencyFFT – ADC Idle Channel, Single-Ended

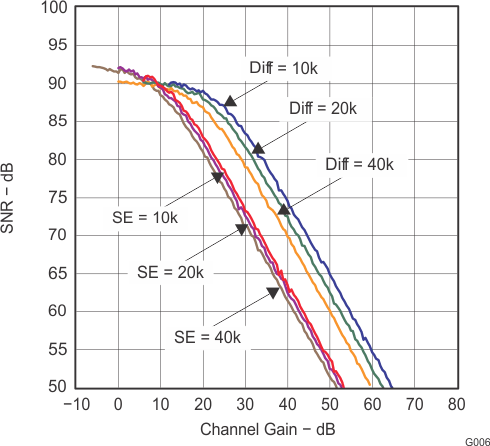

Figure 5-11 SNR vs PGA Channel Gain
5.12.2 DAC Performance

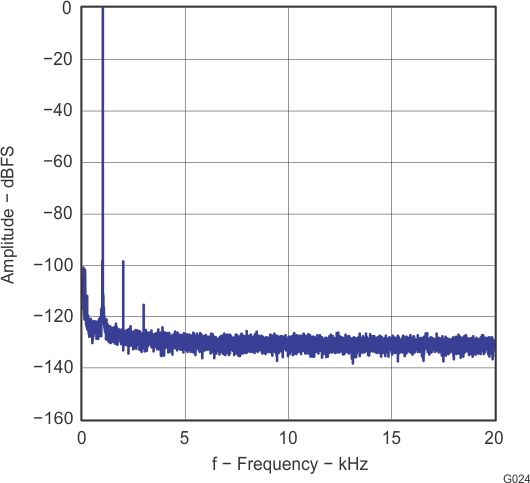

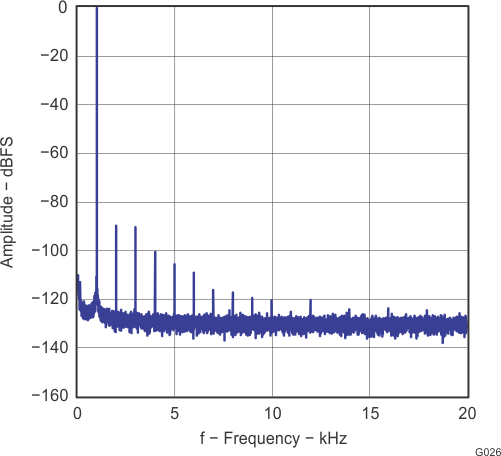

Figure 5-12 Amplitude vs FrequencyFFT - DAC to Line Output

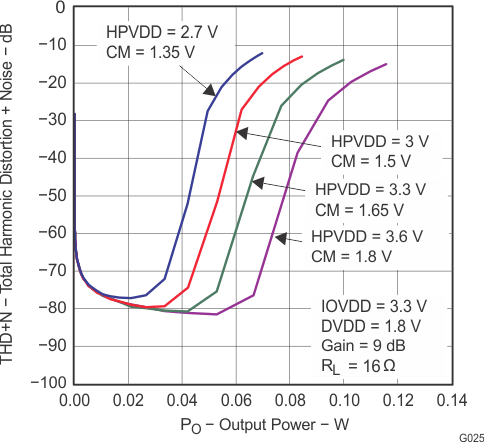

Figure 5-14 Total Harmonic Distortion + Noise vs Output PowerHeadphone Output Power
Figure 5-13 Amplitude vs FrequencyFFT - DAC to Headphone Output
5.12.3 Class-D Speaker Driver Performance
Figure 5-15 Total Harmonic Distortion + Noise vs Output PowerMax Class-D Speaker-Driver Output Power (RL = 4 Ω)

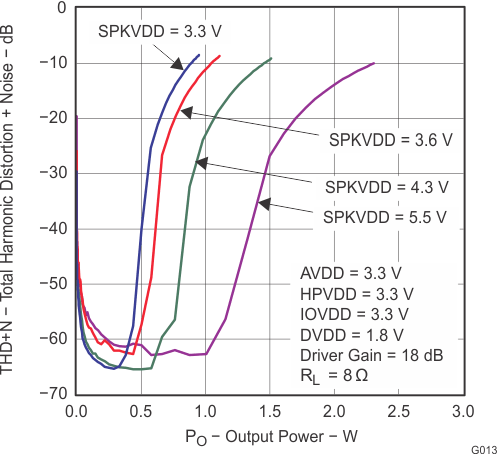

Figure 5-17 Total Harmonic Distortion + Noise vs Output PowerMax Class-D Speaker-Driver Output Power (RL = 8 Ω)
Figure 5-16 Total Harmonic Distortion + Noise vs Output PowerClass-D Speaker-Driver Output Power (RL = 4 Ω)
Figure 5-18 Total Harmonic Distortion + Noise vs Output PowerClass-D Speaker-Driver Output Power (RL = 8 Ω)
5.12.4 Analog Bypass Performance
H
Figure 5-19 Amplitude vs FrequencyFFT - Line-In Bypass to Line Output
Figure 5-20 Amplitude vs FrequencyFFT - Line-In Bypass to Headphone Output
5.12.5 MICBIAS Performance
H
Figure 5-21 Voltage vs CurrentMICBIAS
