13 Layout
13.1 Layout Guidelines
PCB design is made considering the application, and the review is specific for each system requirements. However, general considerations can optimize the system performance.
- The TLV320AIC3107IRSB thermal pad should be connected to analog output driver ground using multiple VIAS to minimize impedance between the device and ground.
- SPVSS balls of TLV320AIC3107IYZF are recommended to be soldered directly to Class-D ground.
- SPVSS balls of TLV320AIC3107IYZF are recommended to be soldered directly to Class-D ground.
- The TLV320AIC3107 requires the decoupling capacitors to be placed as close as possible to the device power supply terminals.
- If possible, route the differential audio signals differentially on the PCB. This is recommended to get better noise immunity.
13.2 Layout Example

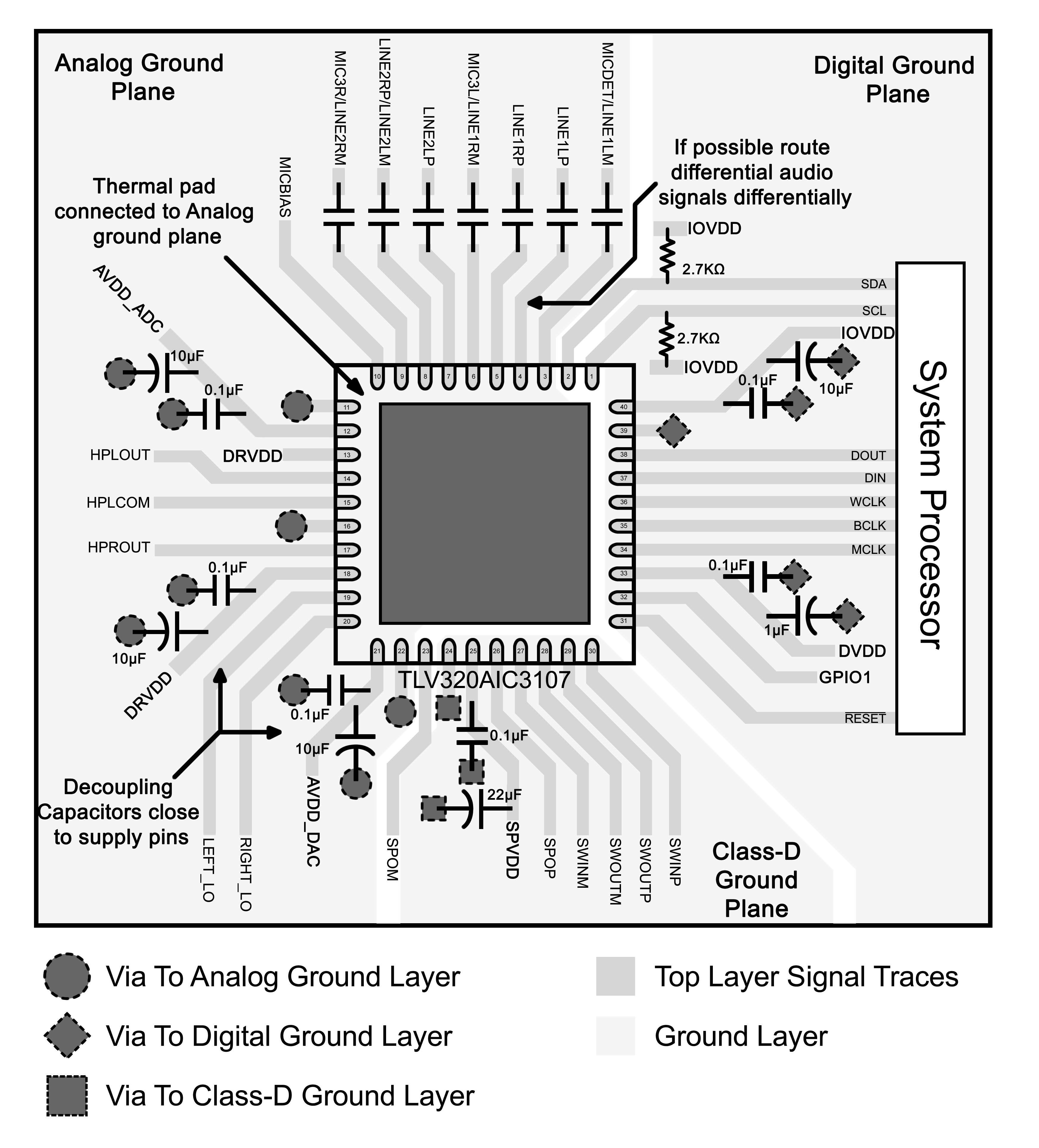

Figure 41. AIC3107 WQFN Layout Example

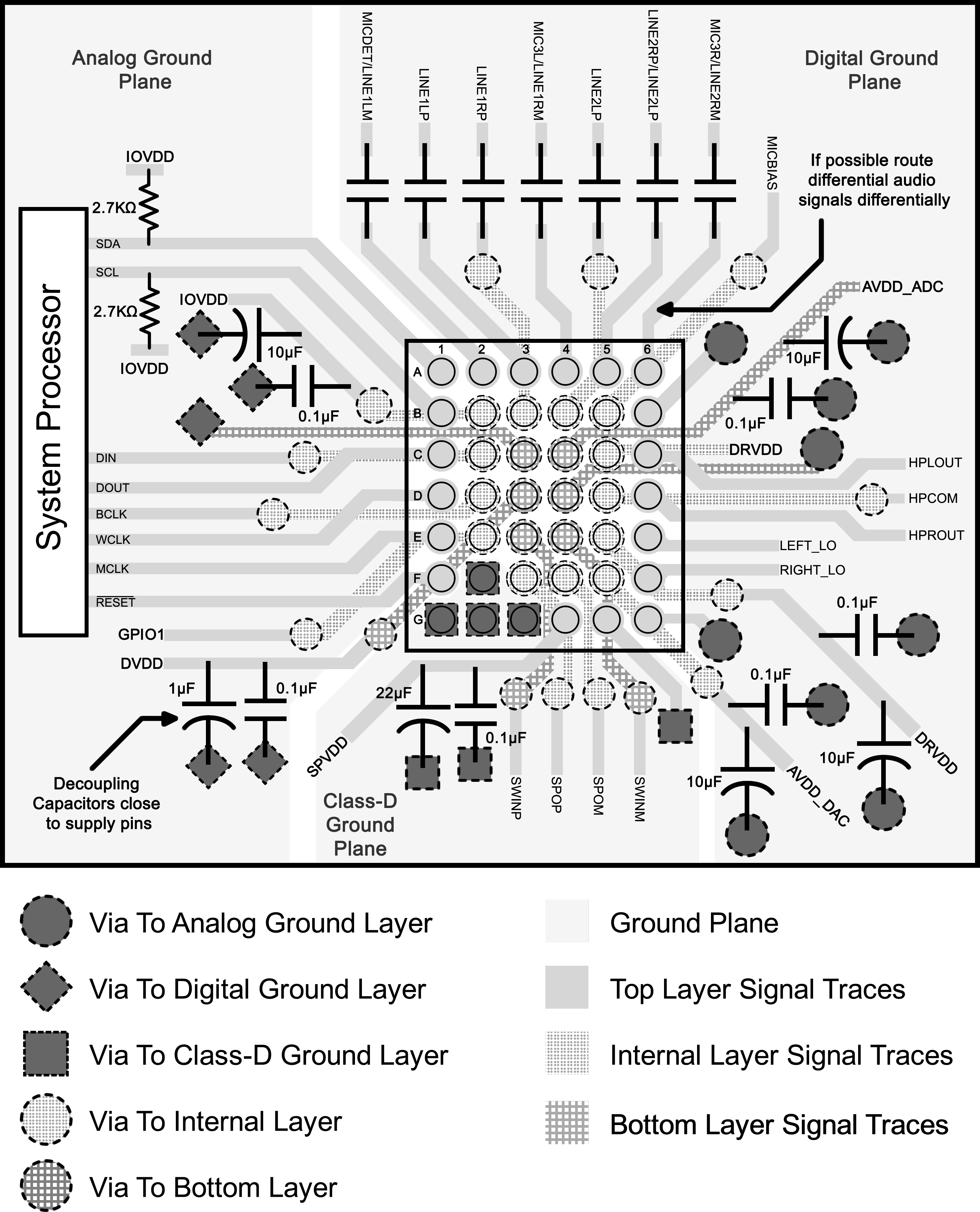

Figure 42. AIC3107 DSBGA Layout Example
