9.2.1 Daisy-Chain Application
In this application, the device VCC and LED lamp anode voltages are supplied from different power supplies.

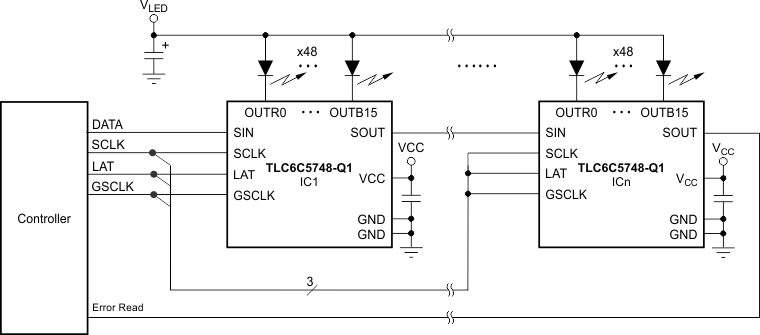

Figure 9-1 Multiple
Daisy-Chained TLC6C5748-Q1 Devices
