7 Parameter Measurement Information
Resistor values are equivalent resistances, and they are not tested.

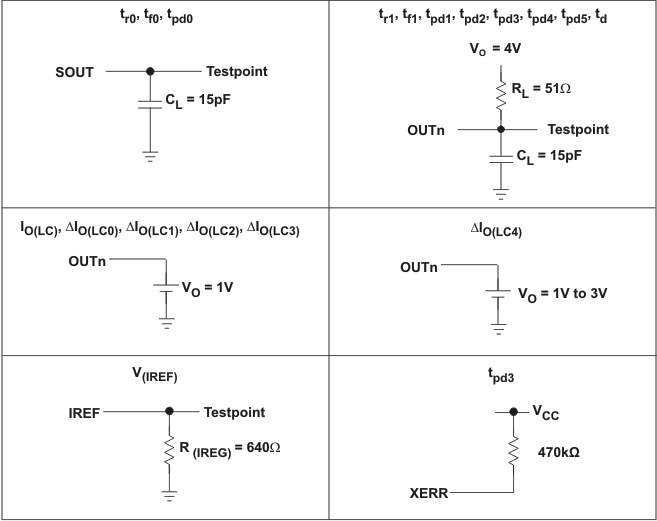

Figure 9. Input and Output Equivalent Circuits
Figure 10. Parameter Measurement Circuits

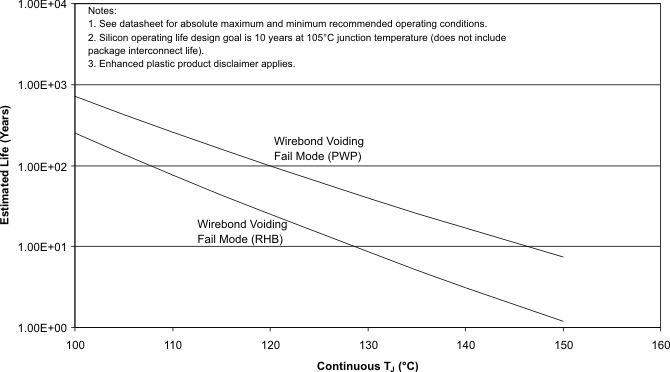

Figure 11. TLC5940-EP Mold Compound Operating Life
7.1 Test Parameter Equations
Equation 1.
Equation 2.
Equation 3.
Equation 4.
Equation 5.
