9.2.2 Other Application Circuits
Figure 28 to Figure 40 show application circuit examples using the TL431-Q1 device. Customers must fully validate and test any circuit before implementing a design based on an example in this section. Unless otherwise noted, the design procedures in Comparator Application are applicable.
A. R must provide cathode current ≥1 mA to the TL431-Q1 at minimum VI(BATT).

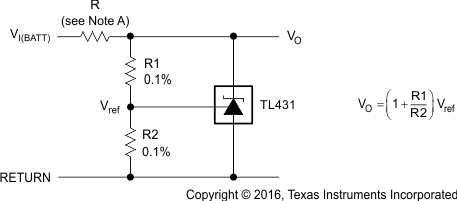

Figure 28. Shunt Regulator
A. R must provide cathode current ≥1 mA to the TL431-Q1 at minimum VI(BATT).

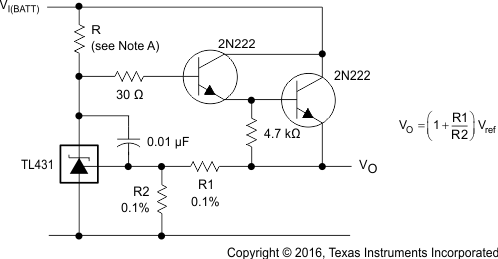

Figure 30. Precision High-Current Series Regulator

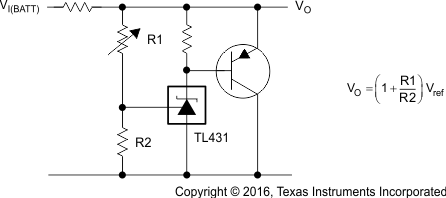

Figure 32. High-Current Shunt Regulator

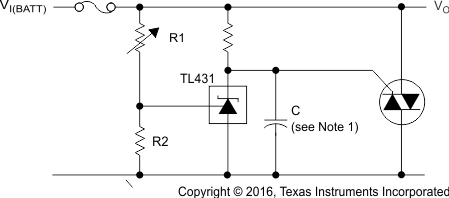

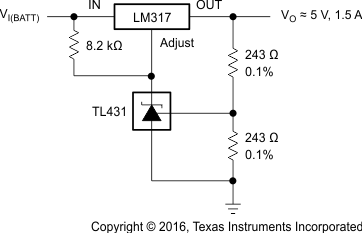

Figure 34. Precision 5-V, 1.5-A Regulator
Figure 29. Single-Supply Comparator with Temperature-Compensated Threshold
Figure 31. Output Control of a Three-Terminal Fixed Regulator
1. Rb must provide cathode current ≥1 mA to the TL431-Q1.
Figure 35. Efficient 5-V Precision Regulator
Figure 36. PWM Converter with Reference

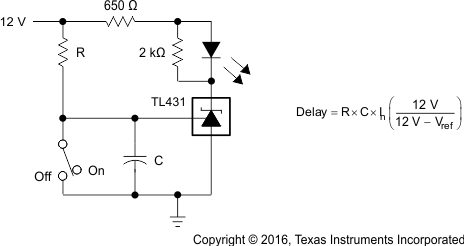

Figure 38. Delay Timer
Figure 40. Precision Constant-Current Sink
A. R3 and R4 are selected to provide the desired LED intensity and cathode current ≥1 mA to the TL431-Q1 at the available VI(BATT).

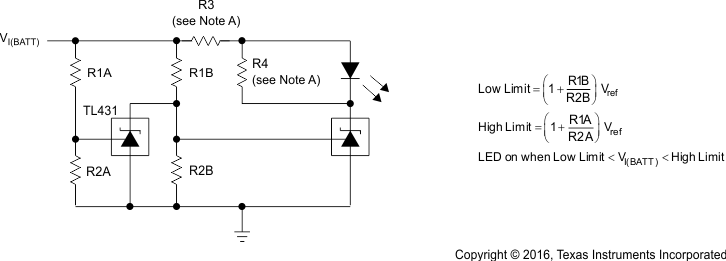

Figure 37. Voltage Monitor
Figure 39. Precision Current Limiter
