The following curves were generated with 5V on VCC and VLogic, RPULLUP = 5.1kΩ, and 50pF scope probe.

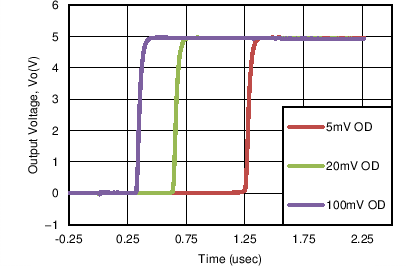

Figure 7-2 Response Time for Various Overdrives (Positive Transition)

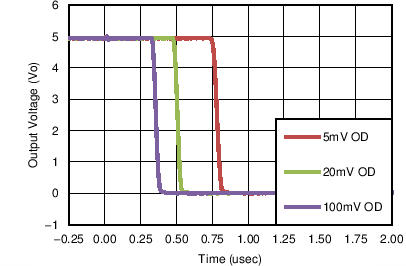

Figure 7-3 Response Time for Various Overdrives (Negative Transition)
