8.3.8 Integrated Surge Protection and Transient Waveform Tolerance
The VCC and OUT pins of the device are capable of withstanding up to 1.2 kV of 1.2/50 – 8/20 μs IEC 61000-4-5 surge with a source impedance of 500 ?. The surge testing should be performed with a minimum 100 nF supply decoupling capacitor between VCC and GND, and 1 μF between VCC_IN/OUT and GND.
External TVS diodes may be required for higher transient protection levels. The system designer should ensure that the maximum clamping voltage of the external diodes should be < 65 V at the desired current level. The device is capable of withstanding up to ±65-V transient pulses < 100 μs.

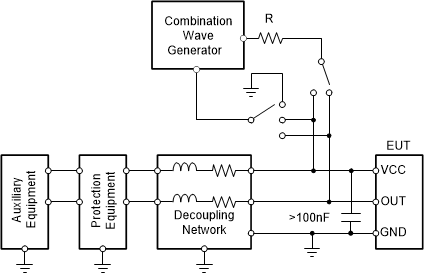

1.2/50 - 80/20 μs CWG
R = 500 Ω
Figure 8-6 Surge Test Setup
