7 Parameter Measurement Information
Note: Note: Digital input/output supply in the diagrams below could either be VCC (devices without VIO pin) or VIO (devices with VIO pin)

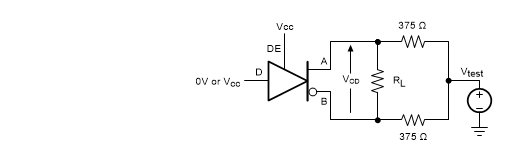

Figure 7-1 Measurement of Driver Differential Output Voltage With Common-Mode Load

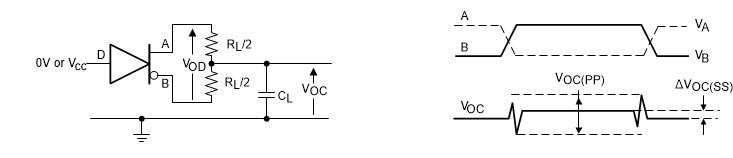

Figure 7-2 Measurement of Driver Differential and Common-Mode Output With RS-485 Load

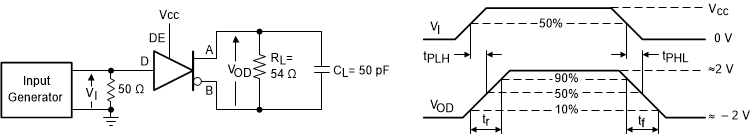

Figure 7-3 Measurement of Driver Differential Output Rise and Fall Times and Propagation Delays

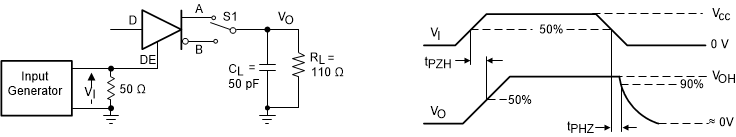

Figure 7-4 Measurement of Driver Enable and Disable Times With Active High Output and Pull-Down Load

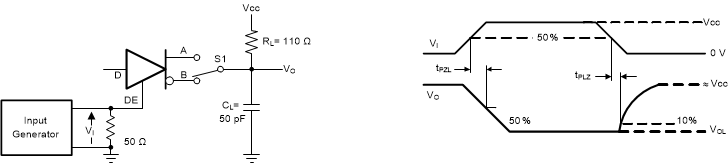

Figure 7-5 Measurement of Driver Enable and Disable Times With Active Low Output and Pull-up Load

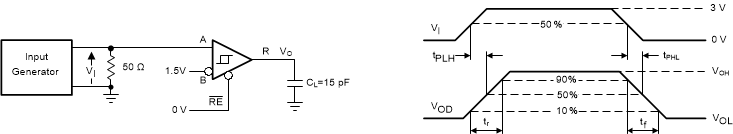

Figure 7-6 Measurement of Receiver Output Rise and Fall Times and Propagation Delays

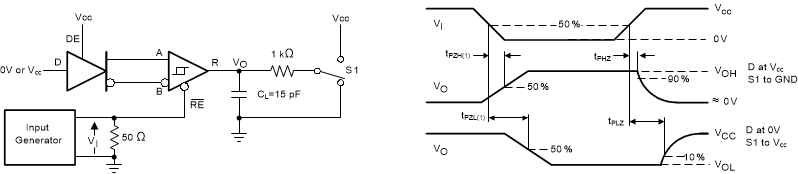

Figure 7-7 Measurement of Receiver Enable/Disable Times With Driver Enabled

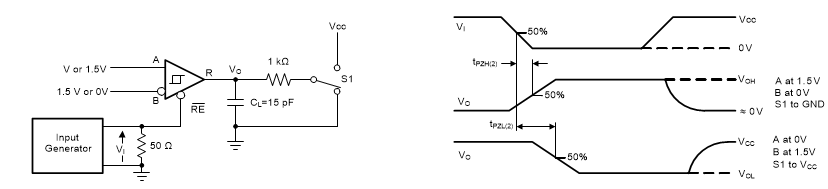

Figure 7-8 Measurement of Receiver Enable Times With Driver Disabled

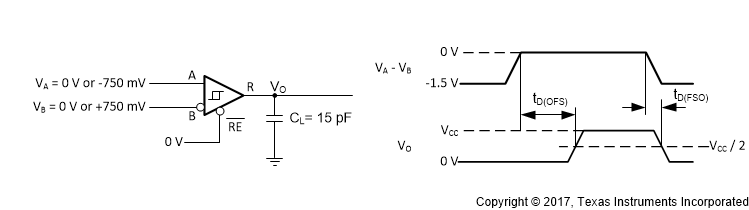

Figure 7-9 Fail-Safe Delay Measurements
