7 Parameter Measurement Information

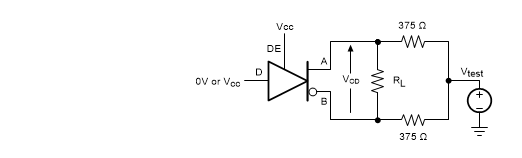

Figure 7-1 Measurement of Driver
Differential Output Voltage With Common-Mode Load

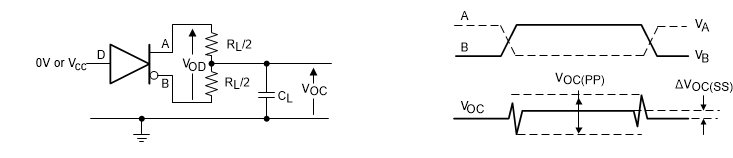

Figure 7-2 Measurement of Driver
Differential and Common-Mode Output With RS-485 Load
Generator: PRR =
500 kHz, 50% Duty Cycle, tr < 60 ns, tf < 6 ns
ZO = 50 Ω

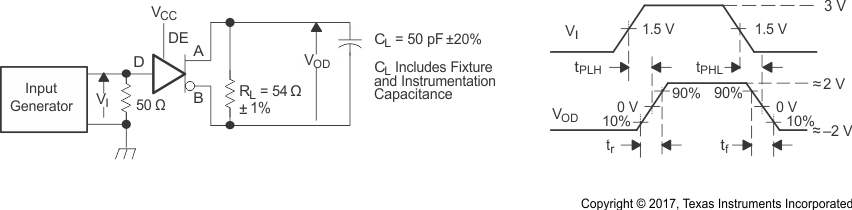

Figure 7-3 Driver
Switching Test Circuit and Voltage Waveforms
Generator: PRR =
500 kHz, 50% Duty Cycle, tr < 60 ns, tf < 6 ns
ZO = 50 Ω

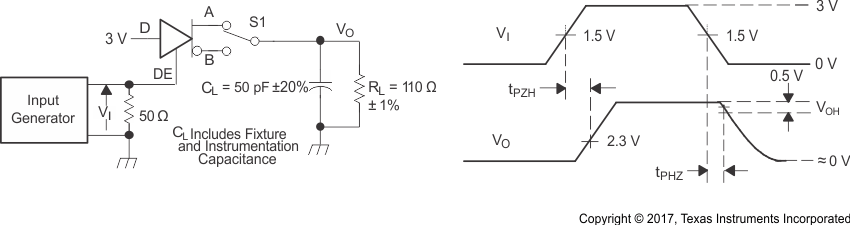

Figure 7-4 Driver
High-Level Enable and Disable Time Test Circuit and Voltage Waveforms
Generator: PRR =
500 kHz, 50% Duty Cycle, tr < 60 ns, tf < 6 ns
ZO = 50 Ω

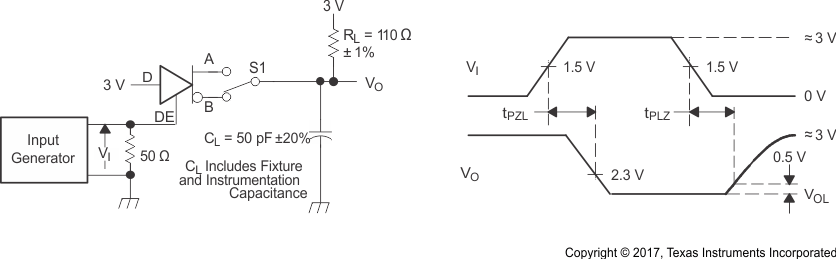

Figure 7-5 Driver
Low-Level Output Enable and Disable Time Test Circuit and Voltage
Waveforms

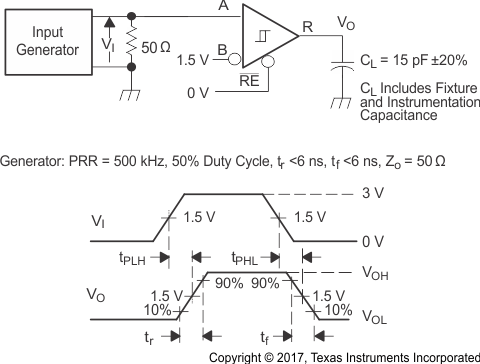

Figure 7-6 Receiver
Switching Test Circuit and Voltage Waveforms

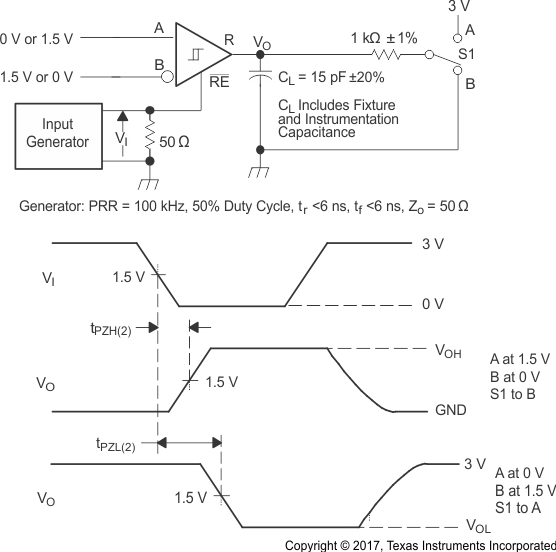

Figure 7-7 Receiver
Enable and Disable Time Test Circuit and Voltage Waveforms With Drivers
Enabled
Figure 7-8 Receiver
Enable Time From Standby (Driver Disabled)
