10 Typical Characteristics: VS = 5 V
Test conditions unless otherwise noted: VS+ = 5 V, VS– = 0 V, VOCM = open, VOUT = 2 Vpp, RF = 2 kΩ, RL = 2 kΩ Differential, G = 1 V/V, Single-Ended Input, Differential Output, Input and Output Referenced to mid-supply, TA = 25°C unless otherwise noted.

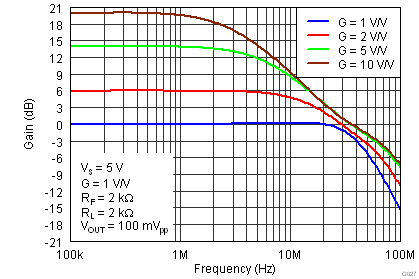

Figure 34. Small-Signal Frequency Response

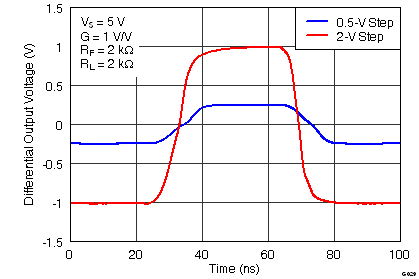

Figure 36. Large and Small-Signal Pulse Response

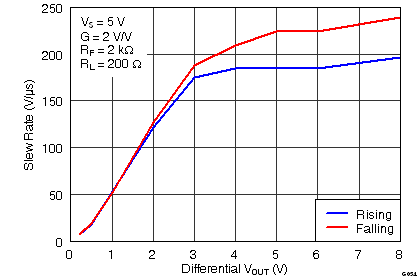

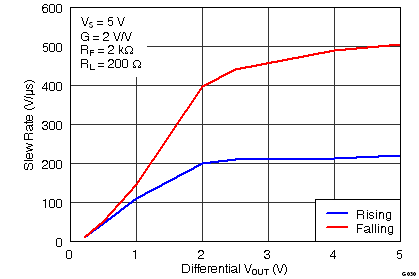

Figure 38. Differential Slew Rate vs VOUT Step
Figure 40. 10 kHz FFT On Audio Analyzer

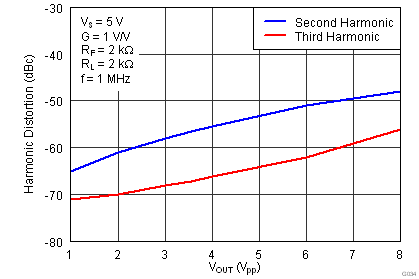

Figure 42. Harmonic Distortion vs Output Voltage at 1 MHz

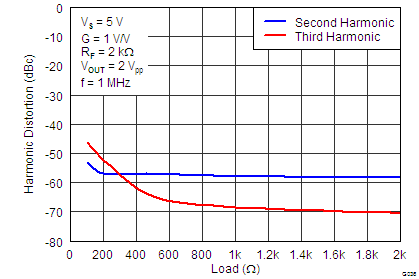

Figure 44. Harmonic Distortion vs Load at 1 MHz

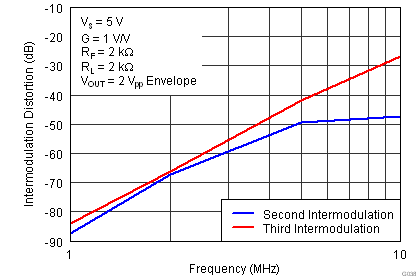

Figure 46. Two-Tone, 2nd and 3rdOrder Intermodulation Distortion vs Frequency
Figure 48. Single-Ended Output Saturation Voltage vs Load Current

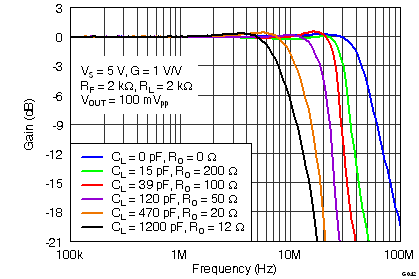

Figure 50. Frequency Response vs CLOAD

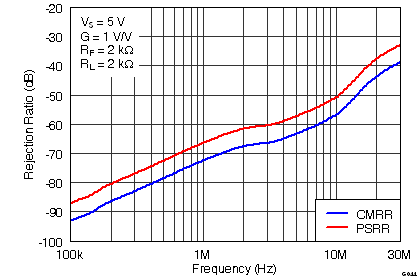

Figure 52. Rejection Ratio vs Frequency

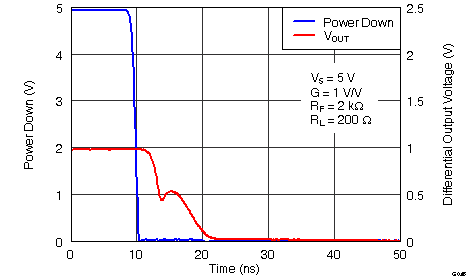

Figure 54. Turn-Off Time

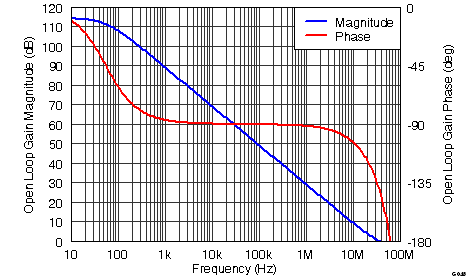

Figure 56. Main Amplifier Differential Open-Loop Gain and Phase vs Frequency
Figure 58. VOCM Small-Signal Frequency Response

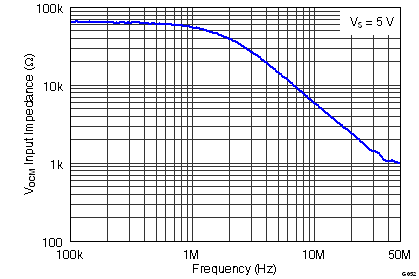

Figure 60. VOCM Input Impedance vs Frequency

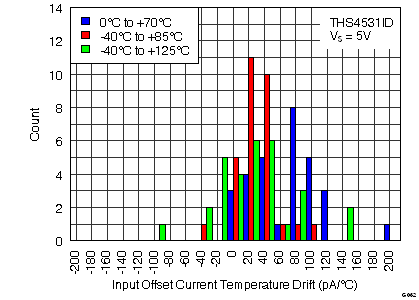

Figure 62. Input Offset Current Temperature Drift Histogram

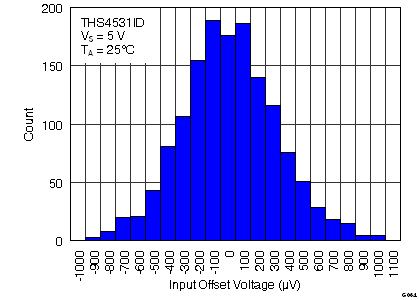

Figure 64. Input Offset Voltage Histogram

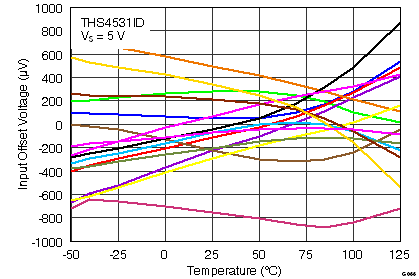

Figure 66. Input Offset Voltage vs Temperature

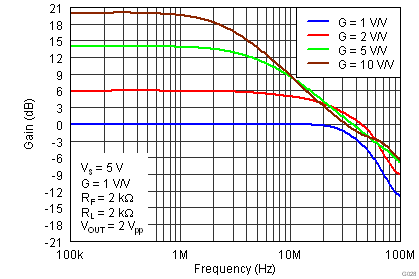

Figure 35. Large-Signal Frequency Response
Figure 37. Single-Ended Slew Rate vs VOUT Step

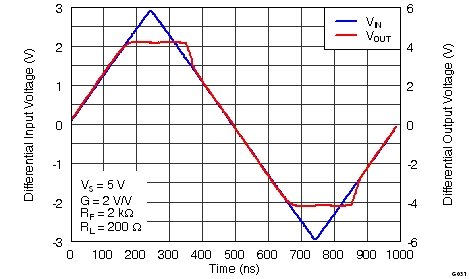

Figure 39. Overdrive Recovery

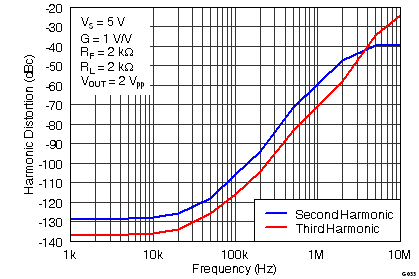

Figure 41. Harmonic Distortion vs Frequency

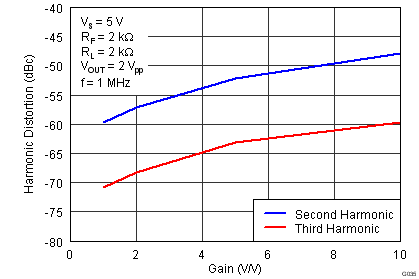

Figure 43. Harmonic Distortion vs Gain at 1 MHz

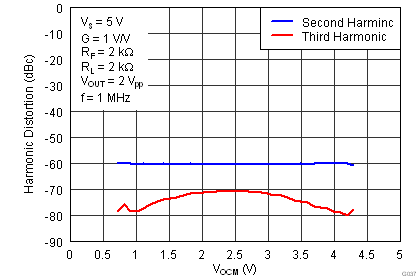

Figure 45. Harmonic Distortion vs VOCM at 1 MHz
Figure 47. Single-Ended Output Voltage Swing vs Load Resistance

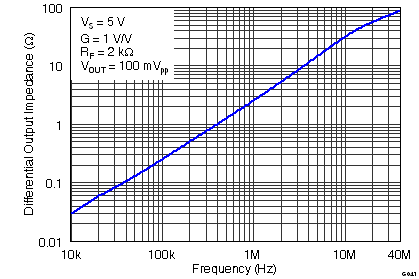

Figure 49. Main Amplifier Differential Output Impedance vs Frequency

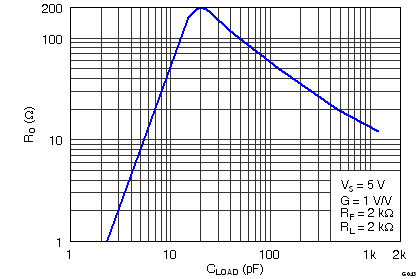

Figure 51. RO vs CLOAD

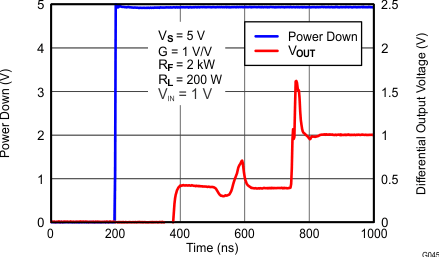

Figure 53. Turn-On Time
Figure 55. Input-Referred Voltage Noise and Current Noise Spectral Density

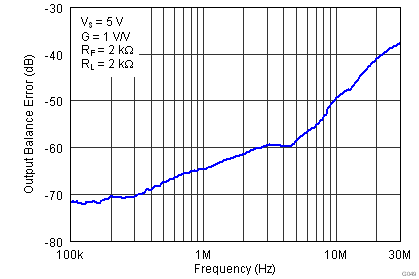

Figure 57. Output Balance Error vs Frequency

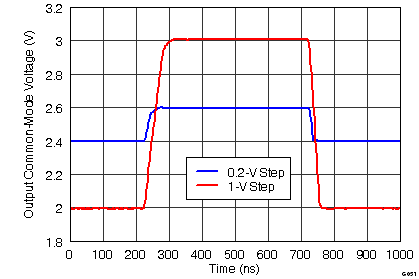

Figure 59. VOCM Large and Small-Signal Pulse Response

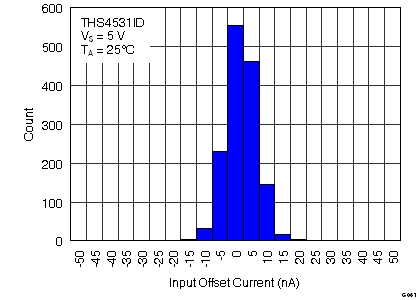

Figure 61. Input Offset Current Histogram

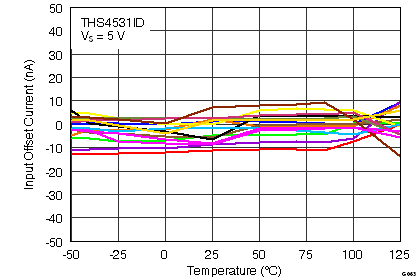

Figure 63. Input Offset Current vs Temperature

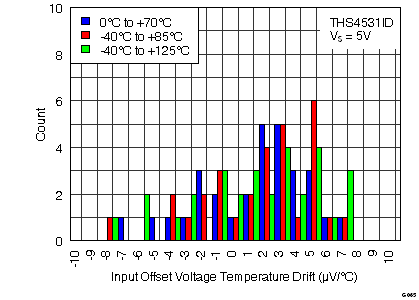

Figure 65. Input Offset Voltage Temperature Drift Histogram
