11.2.2 Single-Ended Input to Differential Output Amplifier
The THS4531 can also be used to amplify and convert single-ended input signals to differential output signals. A basic block diagram of the circuit is shown in Figure 74 (VOCM and PD inputs not shown). The gain of the circuit is again set by RF divided by RG.

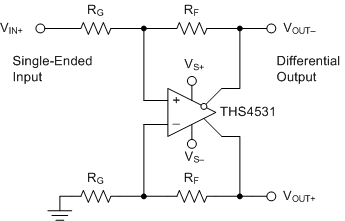

Figure 74. Single-Ended Input to Differential Output Amplifier
