9 Typical Characteristics: VS = 2.7 V
Test conditions unless otherwise noted: VS+ = 2.7 V, VS– = 0 -, CM = open, VOUT = 2 Vpp, RF = 2 kΩ, RL = 2 kΩ differential, G = 1 V/V, single-ended input, differential output, input and output referenced to mid-supply unless otherwise noted.

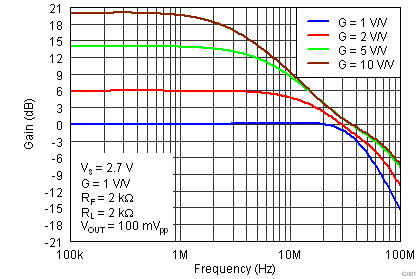

Figure 1. Small-Signal Frequency Response

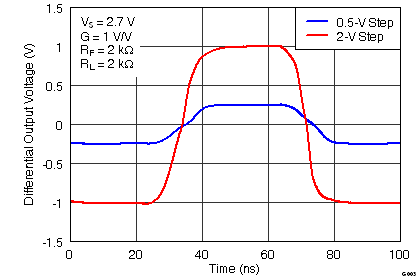

Figure 3. Large and Small-Signal Pulse Response

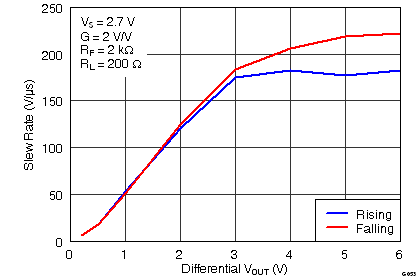

Figure 5. Differential Slew Rate vs VOUT Step
Figure 7. 10 kHz FFT On Audio Analyzer
Figure 9. Harmonic Distortion vs Output Voltage at 1 MHz

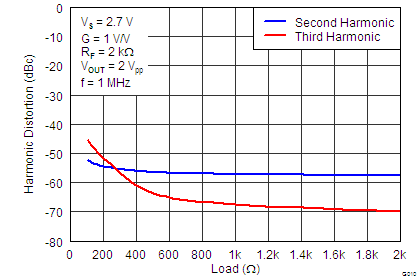

Figure 11. Harmonic Distortion vs Load at 1 MHz
Figure 13. Two-Tone, 2nd and 3rd Order Intermodulation Distortion vs Frequency
Figure 15. Single-Ended Output Saturation Voltage vs Load Current

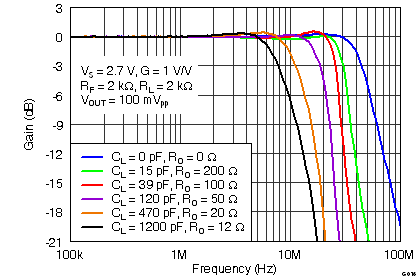

Figure 17. Frequency Response vs CLOAD

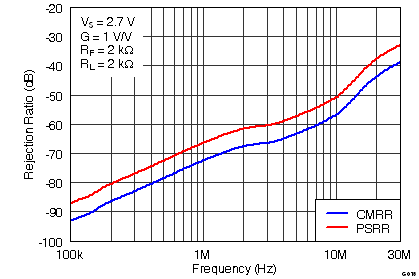

Figure 19. Rejection Ratio vs Frequency

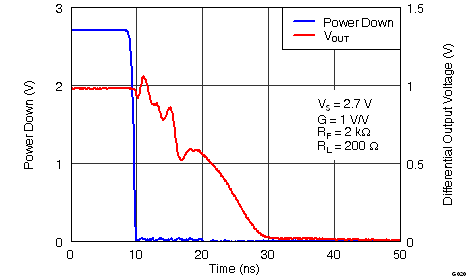

Figure 21. Turn-Off Time

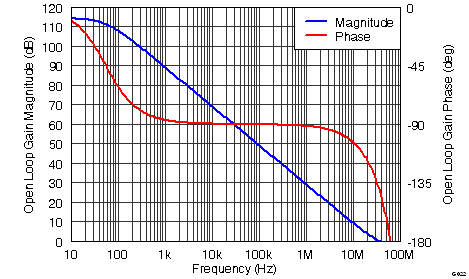

Figure 23. Main Amplifier Differential Open-Loop Gain and Phase vs Frequency

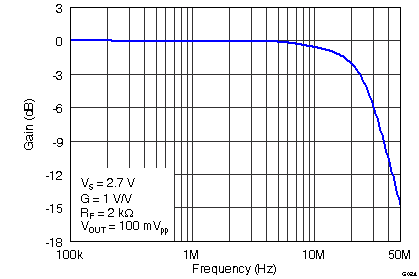

Figure 25. VOCM Small-Signal Frequency Response

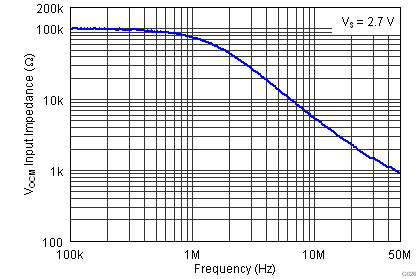

Figure 27. VOCM Input Impedance vs Frequency

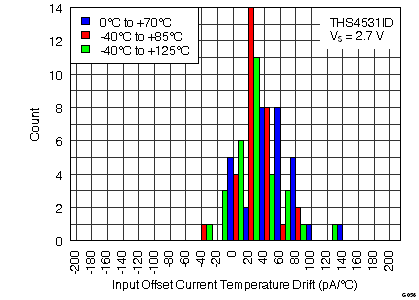

Figure 29. Input Offset Current Temperature Drift Histogram

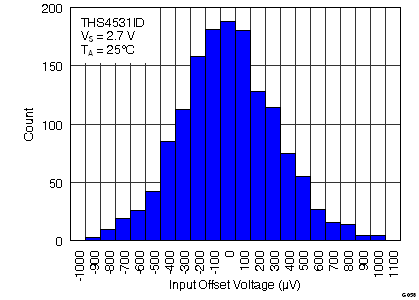

Figure 31. Input Offset Voltage Histogram

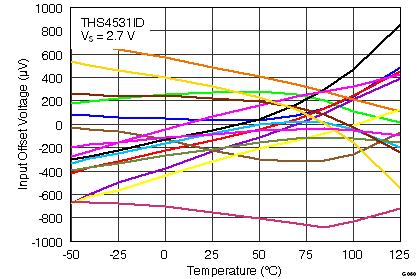

Figure 33. Input Offset Voltage vs Temperature

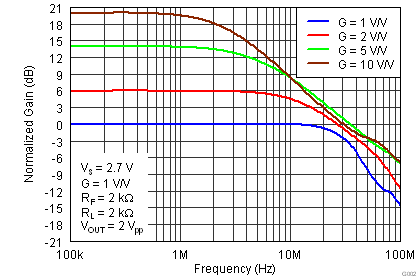

Figure 2. Large-Signal Frequency Response

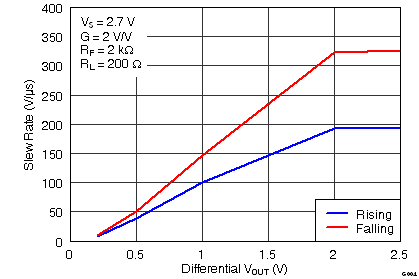

Figure 4. Single-Snded Slew Rate vs VOUT Step

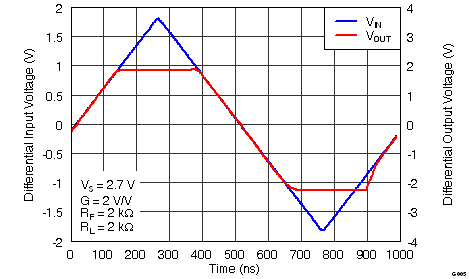

Figure 6. Overdrive Recovery

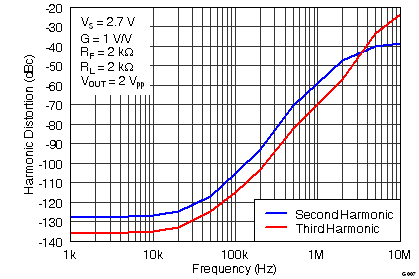

Figure 8. Harmonic Distortion vs Frequency

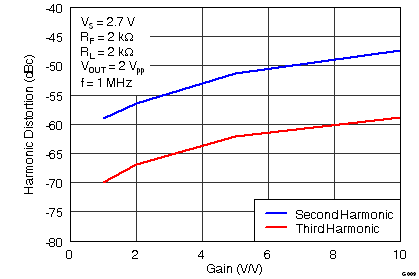

Figure 10. Harmonic Distortion vs GAIN at 1 MHz

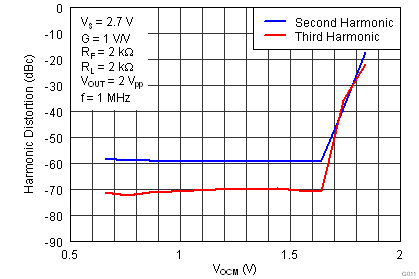

Figure 12. Harmonic Distortion vs VOCM at 1 MHz
Figure 14. Single-Ended Output Voltage Swing vs Load Resistance

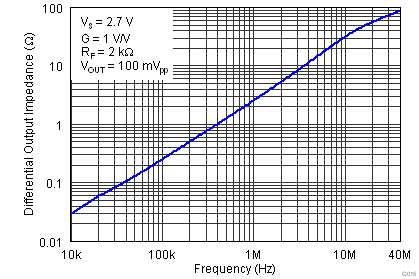

Figure 16. Main Amplifier Differential Output Impedance vs Frequency

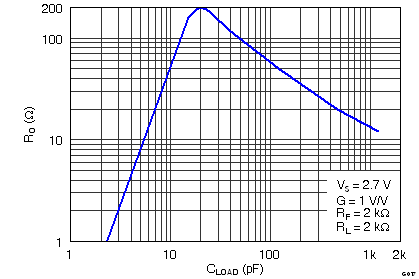

Figure 18. RO vs CLOAD
Figure 20. Turn-On Time
Figure 22. Input-referred Voltage Noise and Current Noise Spectral Density

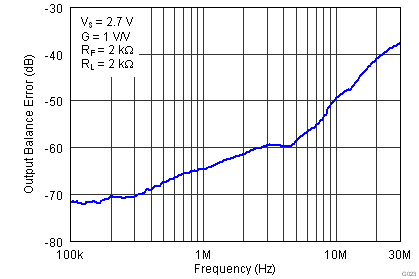

Figure 24. Output Balance Error vs Frequency

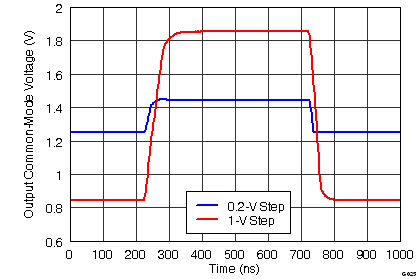

Figure 26. VOCM Large and Small-Signal Pulse Response

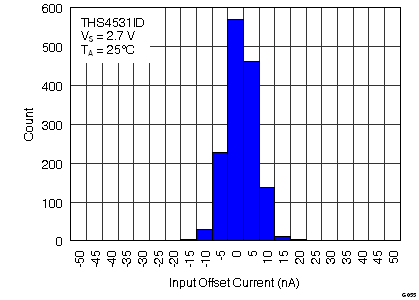

Figure 28. Input Offset Current Histogram

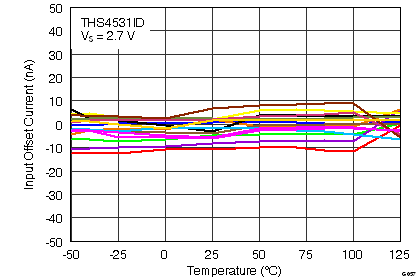

Figure 30. Input Offset Current vs Temperature

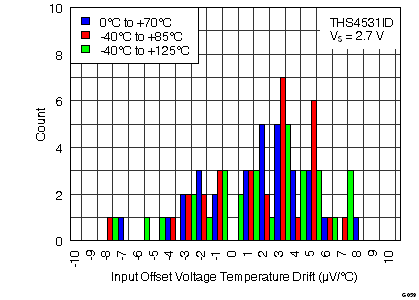

Figure 32. Input Offset Voltage Temperature Drift Histogram
