6 Parameter Measurement Information
A. CL includes probe and
jig capacitance.
B. All inputs are supplied by
generators having the following characteristics: PRR ≤ 10 MHz, ZO =
50 ?, tr/tf ≤ 30 ns.
C. Not all parameters and waveforms
are applicable to all devices.

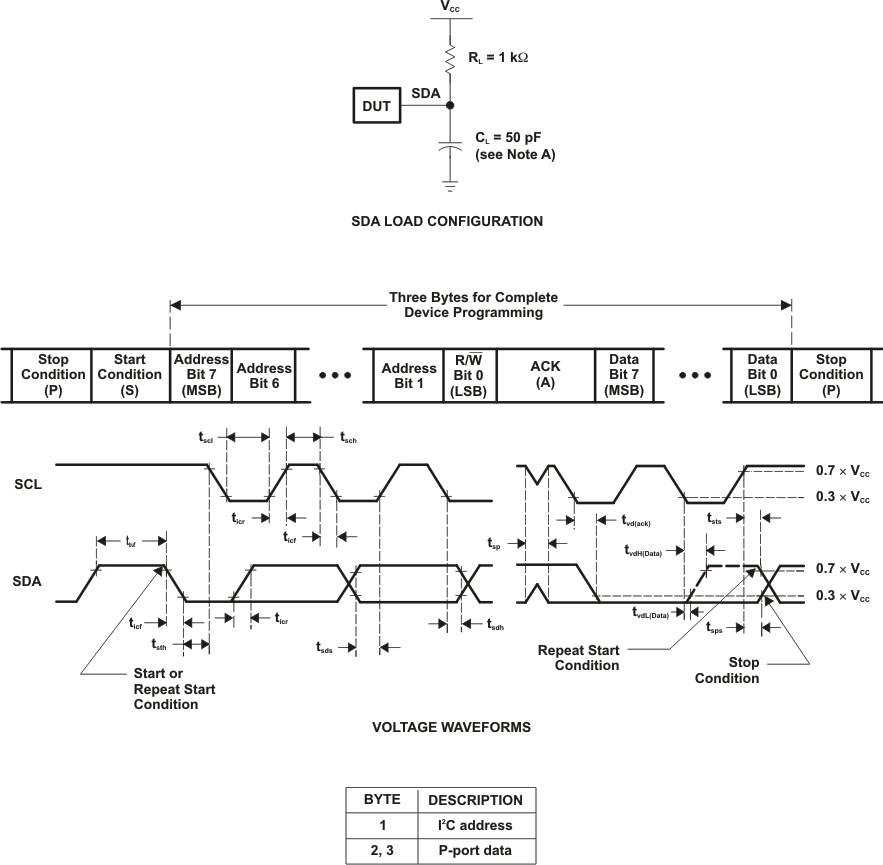

Figure 6-1 I2C Load Circuit and Voltage Waveforms
A. CL includes probe and
jig capacitance.
B. All inputs are supplied by
generators having the following characteristics: PRR ≤ 10 MHz, ZO =
50 ?, tr/tf ≤ 30 ns.
C. I/Os are configured as
inputs.
D. Not all parameters and waveforms
are applicable to all devices.
Figure 6-2 Reset
Load Circuit and Voltage Waveforms
