8.2 Typical Application

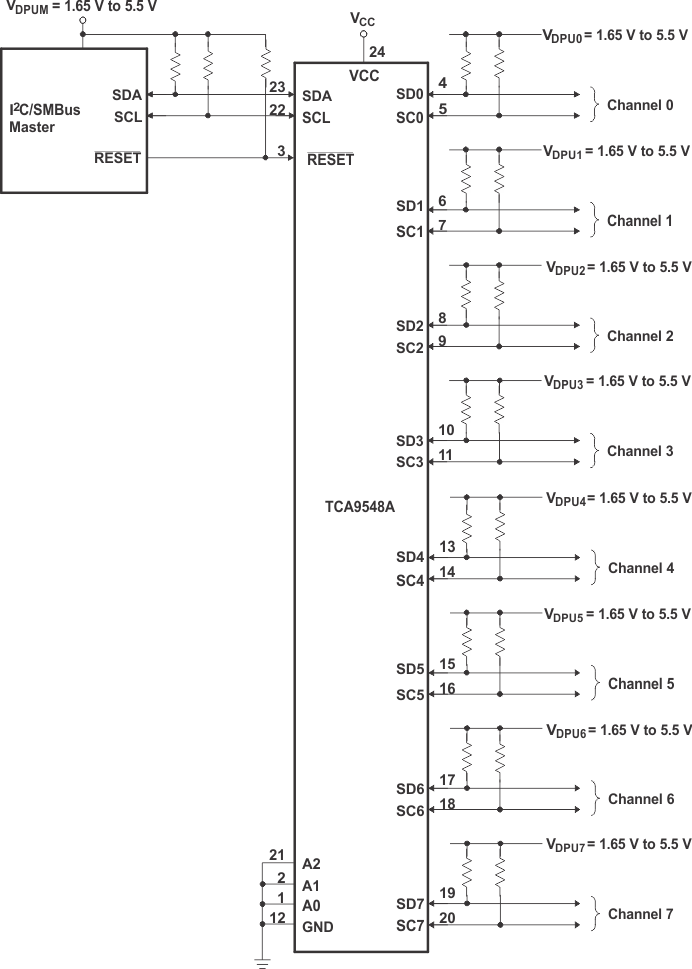

Figure 8-1 shows an application in which the TCA9548A can be used.
Pin numbers shown
are for the PW package.
Figure 8-1 Typical
Application Schematic
