7 Parameter Measurement Information
A. CL includes probe and jig capacitance.
B. All input pulses are supplied by generators having the following characteristics: PRR ≤ 10 MHz, ZO = 50 Ω,
tr/tf = 30 ns.
tr/tf = 30 ns.
C. The outputs are measured one at a time, with one transition per measurement.

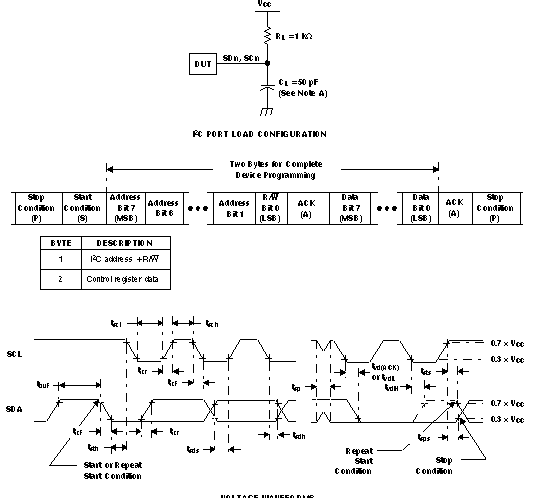

Figure 5. I2C Interface Load Circuit, Byte Descriptions, and Voltage Waveforms

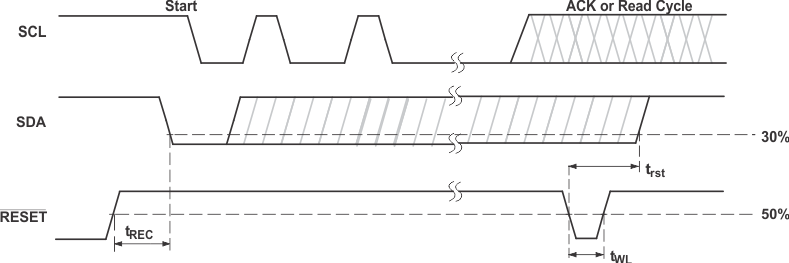

Figure 6. Reset Timing
A. CL includes probe and jig capacitance.
B. All input pulses are supplied by generators having the following characteristics: PRR ≤ 10 MHz, ZO = 50 Ω,
tr/tf = 30 ns.

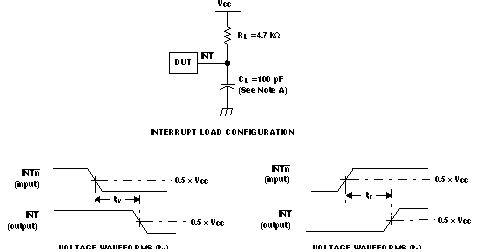

Figure 7. Interrupt Load Circuit and Voltage Waveforms tr/tf = 30 ns.
