6.9 Typical Characteristics
TA = 25°C (unless otherwise noted)

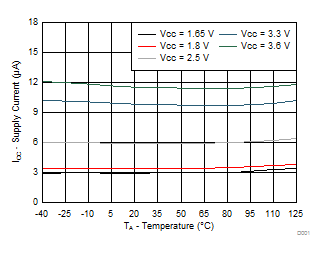

Figure 6-1 Supply Current vs Temperature for Different Supply Voltage (VCC)

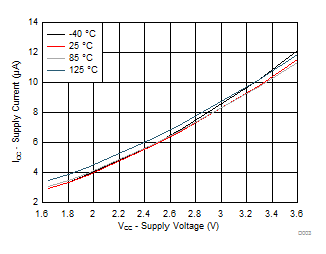

Figure 6-3 Supply Current vs Supply Voltage for Different Temperature (TA)

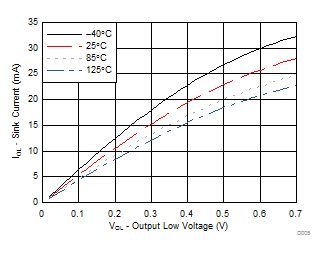

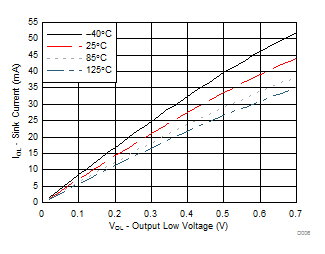

Figure 6-5 I/O Sink Current vs Output Low Voltage for Different Temperature (TA) for VCC = 1.8 V

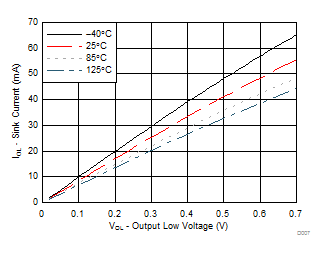

Figure 6-7 I/O Sink Current vs Output Low Voltage for Different Temperature (TA) for VCC = 3.3 V

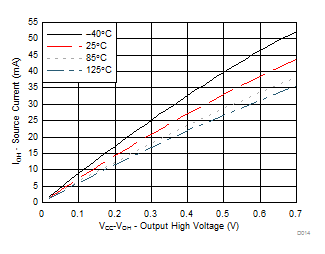

Figure 6-9 I/O Source Current vs Output High Voltage for Different Temperature (TA) for VCC = 1.65 V
Figure 6-11 I/O Source Current vs Output High Voltage for Different Temperature (TA) for VCC = 2.5 V

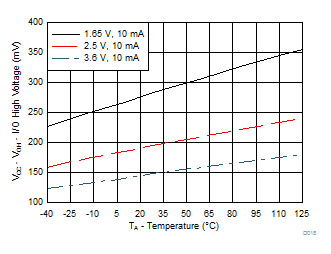

Figure 6-13 VCC – VOH Voltage vs Temperature for Different VCC

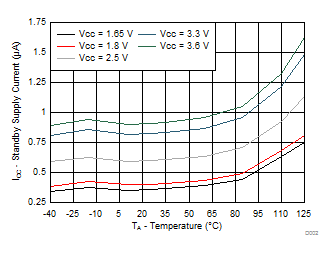

Figure 6-2 Standby Supply Current vs Temperature for Different Supply Voltage (VCC)
Figure 6-4 I/O Sink Current vs Output Low Voltage for Different Temperature (TA) for VCC = 1.65 V

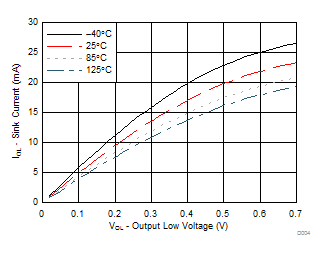

Figure 6-6 I/O Sink Current vs Output Low Voltage for Different Temperature (TA) for VCC = 2.5 V

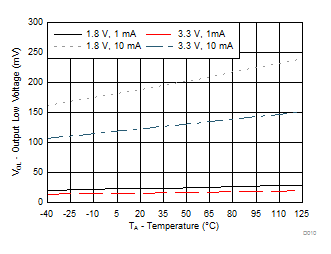

Figure 6-8 I/O Low Voltage vs Temperature for Different VCC and IOL

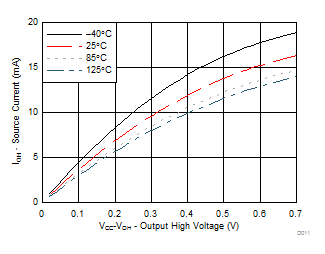

Figure 6-10 I/O Source Current vs Output High Voltage for Different Temperature (TA) for VCC = 1.8 V

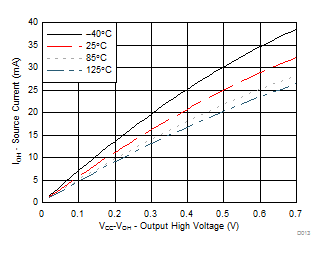

Figure 6-12 I/O Source Current vs Output High Voltage for Different Temperature (TA) for VCC = 3.3 V

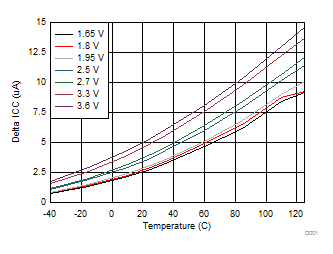

Figure 6-14 Δ ICC vs Temperature for Different VCC (VI = VCC – 0.6 V)
