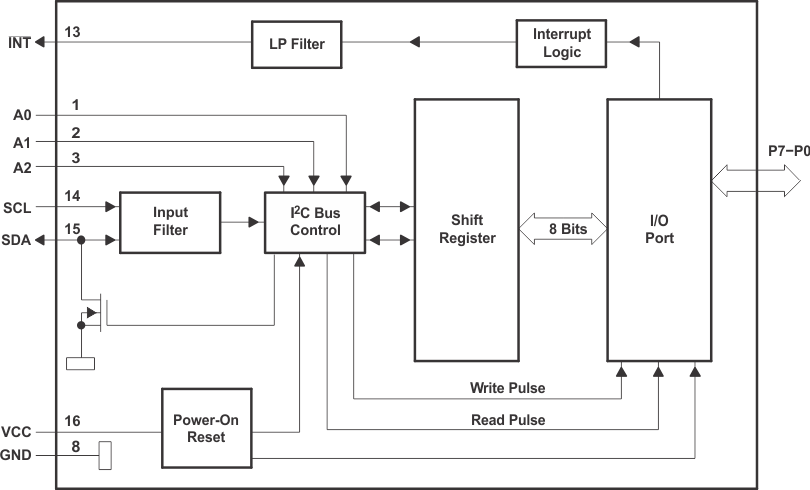

8.2 Functional Block Diagram
Pin numbers shown are for the PW package.
Figure 22. Functional Block Diagram
At power-on reset, all registers return to default values.

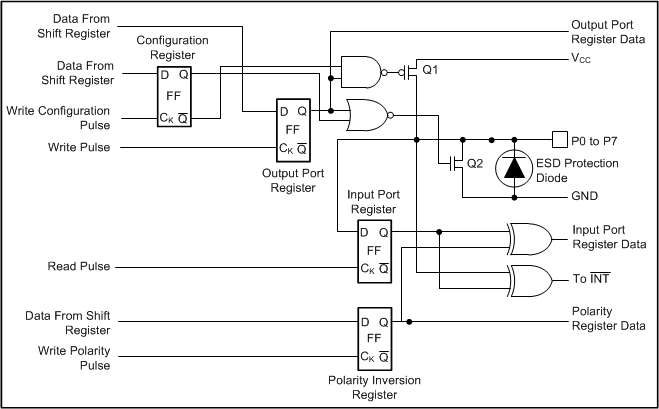

Figure 23. Simplified Schematic Of P0 To P7
