6 Parameter Measurement Information
| PIN | CL |
|---|---|
| SCLA, SDAA (A-side) | 50 pF |
| SDAB, SCLB (B-side) | 50 pF |
A. RT termination
resistance should be equal to ZOUT of pulse generators.
B. CL includes probe and
jig capacitance.
C. All input pulses are supplied by
generators having the following characteristics: PRR ≤ 10 MHz, ZO =
50 Ω, slew rate ≥ 1 V/ns.
D. The outputs are measured one at
a time, with one transition per measurement.
E. tPLH and
tPHL are the same as tpd.

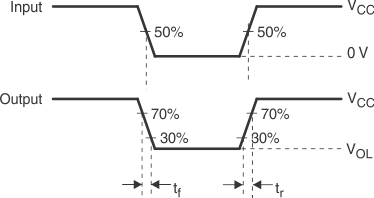

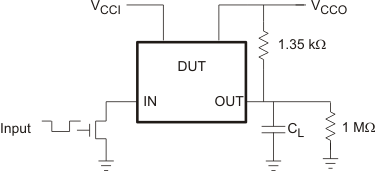

Figure 6-1 Test Circuit and Voltage
Waveforms
