7 Parameter Measurement Information
A. CL includes probe and
jig capacitance. tocf is measured with CL of 10 pF or 400 pF.
B. All inputs are supplied by
generators having the following characteristics: PRR ≤ 10 MHz, ZO =
50 ?, tr/tf ≤ 30 ns.
C. All parameters and waveforms are
not applicable to all devices.

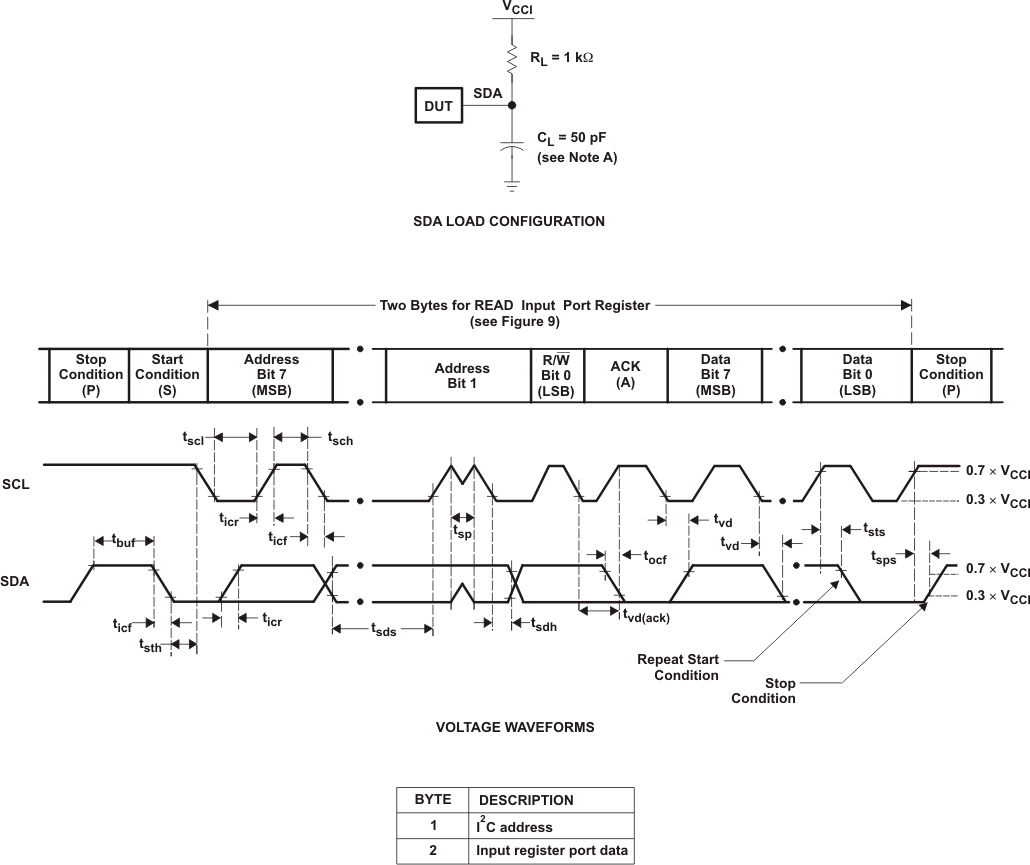

Figure 7-1 I2C Interface Load Circuit And Voltage WaveformsA. CL includes probe and
jig capacitance.
B. All inputs are supplied by
generators having the following characteristics: PRR ≤ 10 MHz, ZO =
50 ?, tr/tf ≤ 30 ns.
C. All parameters and waveforms are
not applicable to all devices.
Figure 7-2 Interrupt
Load Circuit and Voltage WaveformsA. CL includes probe and
jig capacitance.
B. tpv is measured from
0.7 × VCC on SCL to 50% I/O (Pn) output.
C. All inputs are supplied by
generators having the following characteristics: PRR ≤ 10 MHz, ZO =
50 ?, tr/tf ≤ 30 ns.
D. The outputs are measured one at a
time, with one transition per measurement.
E. All parameters and waveforms are
not applicable to all devices.
Figure 7-3 P-Port
Load Circuit and Timing Waveforms
A. CL includes probe and
jig capacitance.
B. All inputs are supplied by
generators having the following characteristics: PRR ≤ 10 MHz, ZO =
50 ?, tr/tf ≤ 30 ns.
C. The outputs are measured one at a
time, with one transition per measurement.
D. I/Os are configured as
inputs.
E. All parameters and waveforms are
not applicable to all devices.

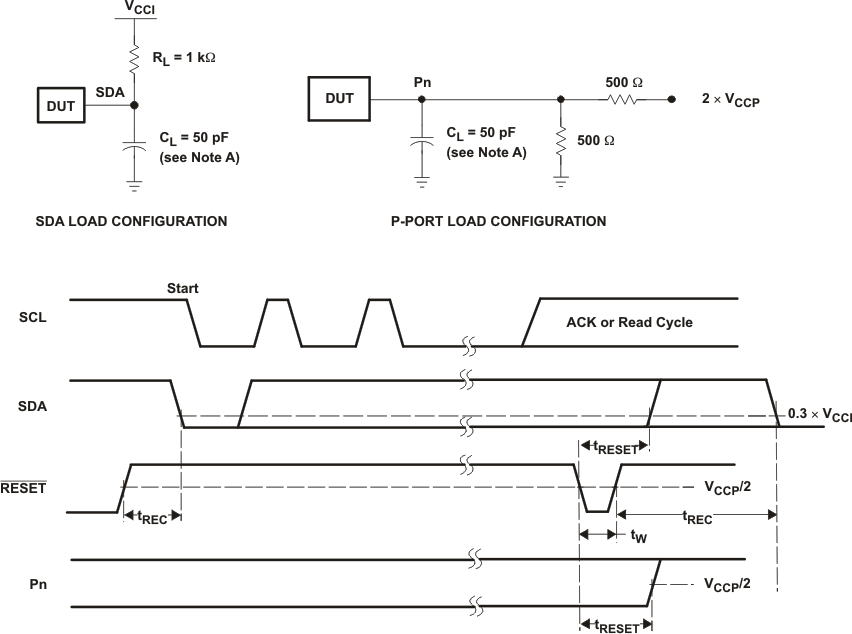

Figure 7-4 Reset
Load Circuits and Voltage Waveforms
