8.2 Functional Block Diagrams
A. All pin numbers shown are for the
PW package.
B. All I/Os are set to inputs at
reset.

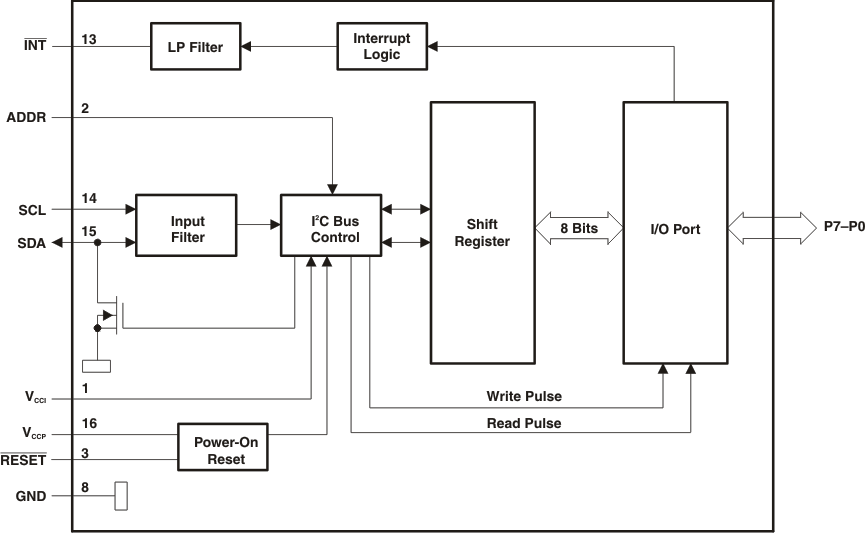

Figure 8-1 Logic
Diagram (Positive Logic)
A. On power up or reset, all registers return to default values.

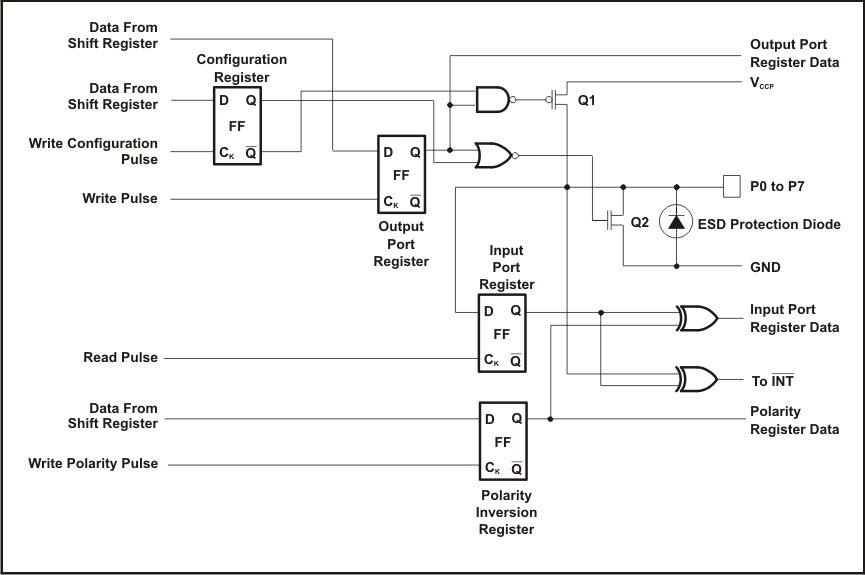

Figure 8-2 Simplified Schematic of P0 to P7
