1 特性
2 應用
- LCD/LED TV 和多用途監視器
- 條形音箱，擴展塢，PC 音頻
- 通用音頻設備
3 說明
TAS5760MD是一款立體聲 I2S 輸入器件，具有硬件和軟件 (I²C) 控制模式、集成數字削波器、多種增益選項并且電源運行電壓范圍較大，支持其適用于多種 應用非常有用。TAS5760MD運行電壓范圍為 4.5V 至24VDC 的標稱電源電壓。該器件配有集成 DirectPath™ 耳機放大器和線路驅動器，可提高系統級集成度并降低解決方案總成本。
輸出金屬氧化物半導體場效應晶體管 (MOSFET) 的 120mΩ DS(ON) 兼顧散熱性能與器件成本，二者相得益彰。此外，該器件采用耐熱增強型 48-Pin TSSOP封裝，在現代消費類電子器件的較高工作環境溫度下展現出優異的性能。
整個 TAS5760xx 系列均采用 48-Pin TSSOP封裝，并且所有系列成員器件之間彼此引腳到引腳兼容。另外，對于可能不需要耳機/線路驅動器且 不要求引腳至引腳兼容， 但希望解決方案實現最小化的應用，TAS5760M 和 TAS5760L 器件可采用 32 引腳薄型小外形尺寸 (TSSOP) 封裝。TAS5760xx 系列所有器件的 I2C 寄存器映射是相同的，這樣一來，當需要根據系統級要求更換器件時，可以減少二次開發的工作量。
器件信息(1)
| 器件型號 | 封裝 | 封裝尺寸（標稱值） |
|---|---|---|
| TAS5760MD | HTSSOP (48) | 12.50mm x 6.10mm |
- 要了解所有可用封裝，請見數據表末尾的可訂購產品附錄。

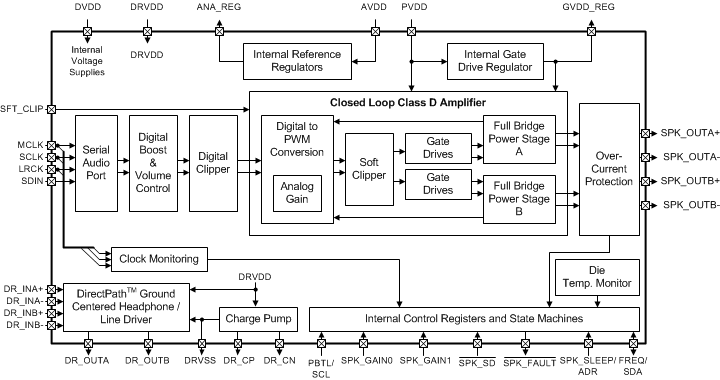

功能方框圖
