8.2 Device Functional Modes
Table 8-1 Driver Function Tables(1)
| DRIVER | |||
|---|---|---|---|
| INPUT D | ENABLE DE | OUTPUTS | |
| A | B | ||
| H | H | H | L |
| L | H | L | H |
| X | L | Z | Z |
(1) H = high level, L = low level, ? = indeterminate, X = irrelevant, Z = high impedance (off)
Table 8-2 Receiver Function Tables(1)
| RECEIVER | |||
|---|---|---|---|
| DIFFERENTIAL INPUTS VID = VIA – VIB | ENABLE RE | OUTPUTS R | |
| VID ≥ 0.2 V | L | H | |
| –0.2 V < VID < 0.2 V | L | ? | |
| VID ≤ –0.2 V | L | L | |
| X | H | Z | |
| Open | L | H | |

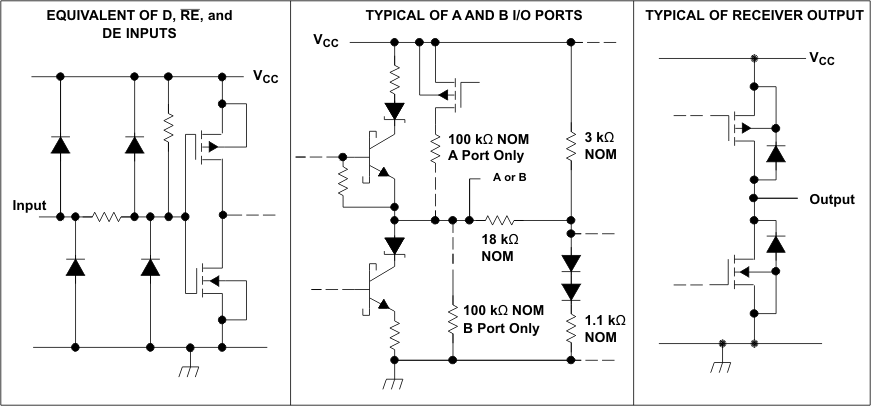

Figure 8-3 Schematics of Inputs and Outputs
