ZHCSW06C October 1980 – April 2024 SN75174
PRODUCTION DATA
- 1
- 1 特性
- 2 應用
- 3 說明
- 4 Pin Configuration and Functions
- 5 Specifications
- 6 Parameter Measurement Information
- 7 Detailed Description
- 8 Application and Implementation
- 9 Device and Documentation Support
- 10Revision History
- 11Mechanical, Packaging, and Orderable Information
封裝選項
請參考 PDF 數據表獲取器件具體的封裝圖。
機械數據 (封裝 | 引腳)
- N|16
- DW|20
散熱焊盤機械數據 (封裝 | 引腳)
訂購信息
5.8 Typical Characteristics

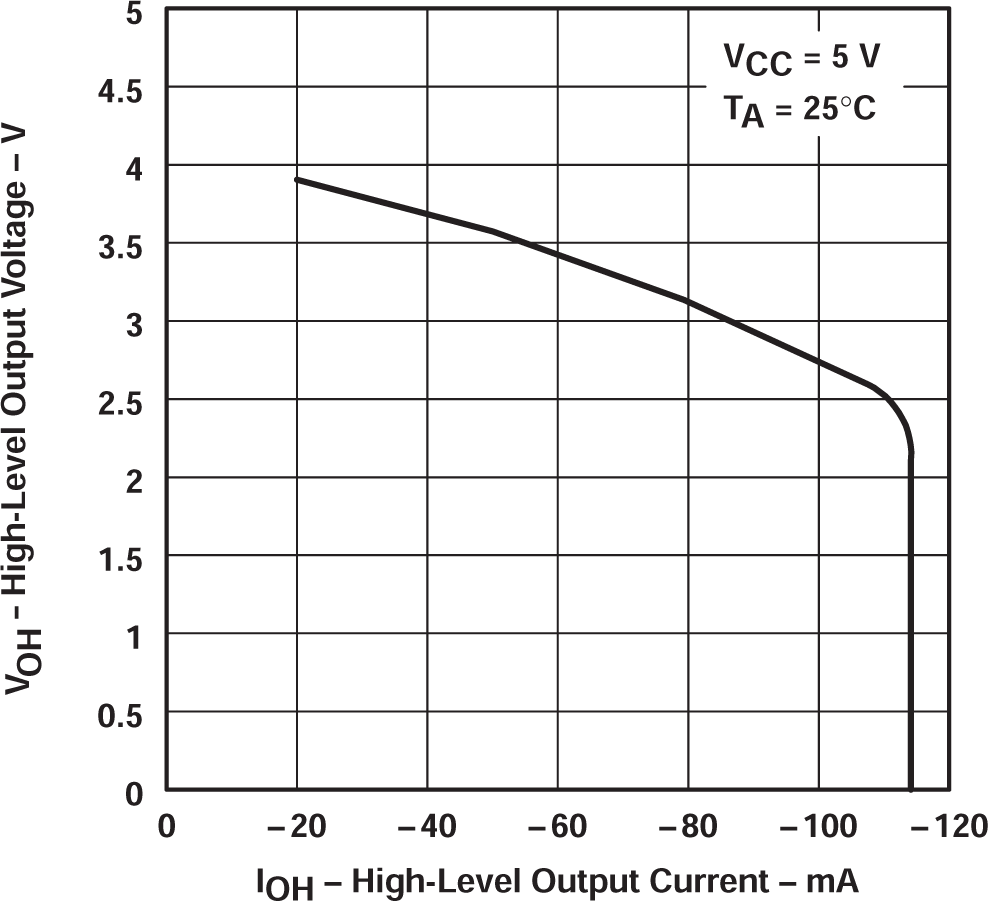

Figure 5-1 High-level Output Voltage
vs High-level Output Current

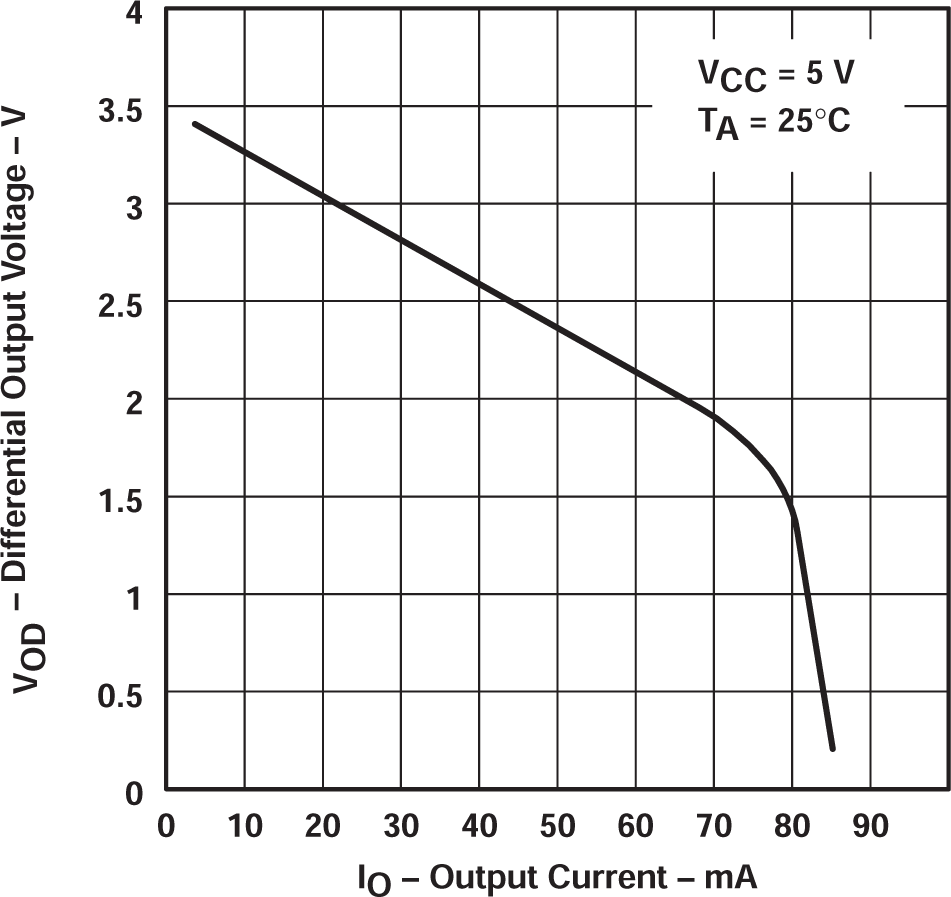

Figure 5-3 Differential Output
Voltage vs Output Current

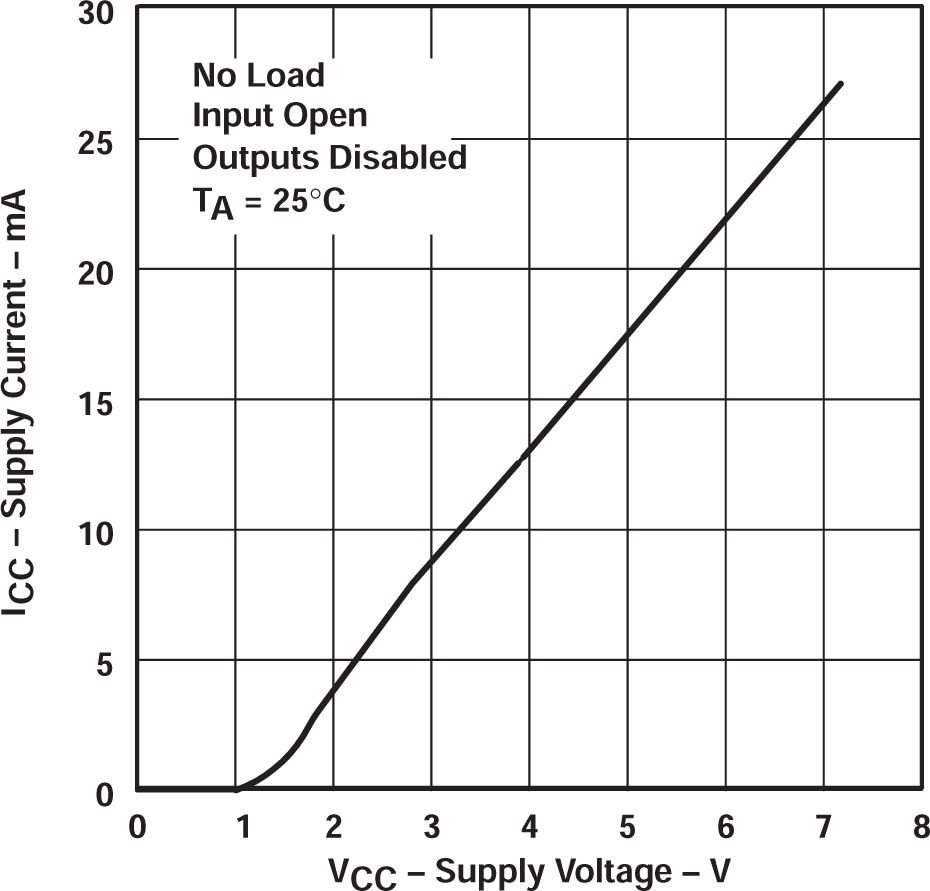

Figure 5-5 Supply Current vs Supply
Voltage

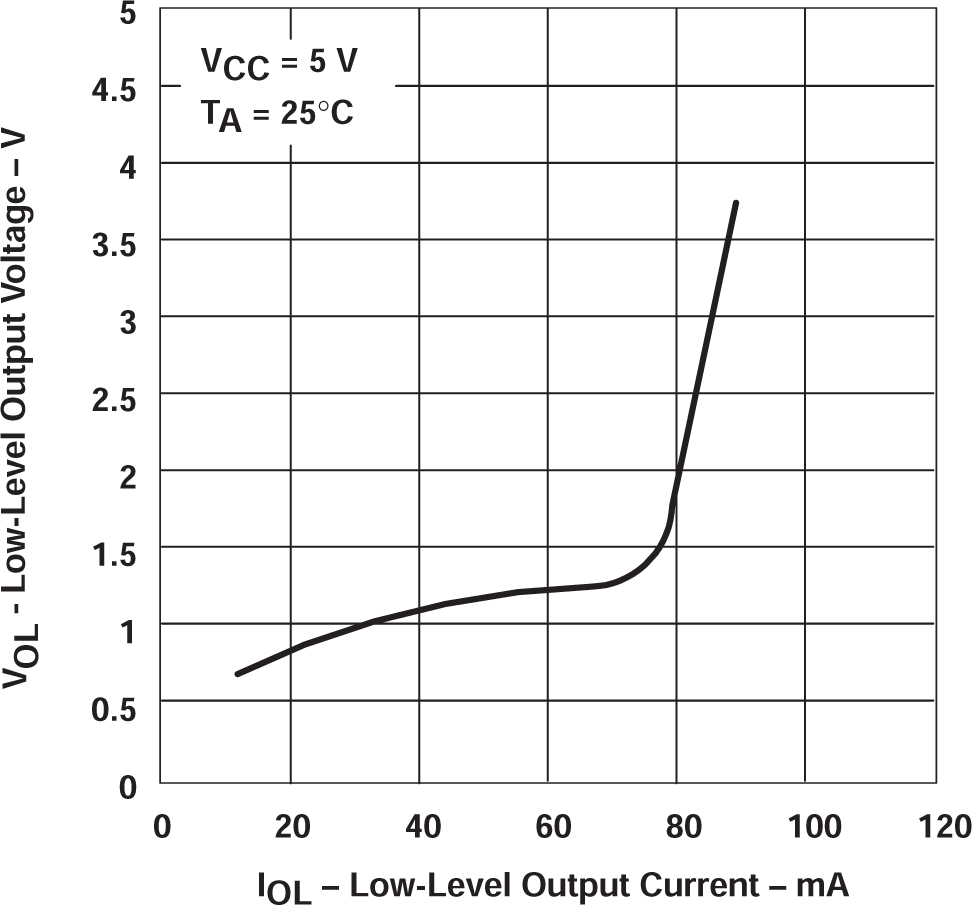

Figure 5-2 Low-level Output Voltage
vs Low-level Output Current

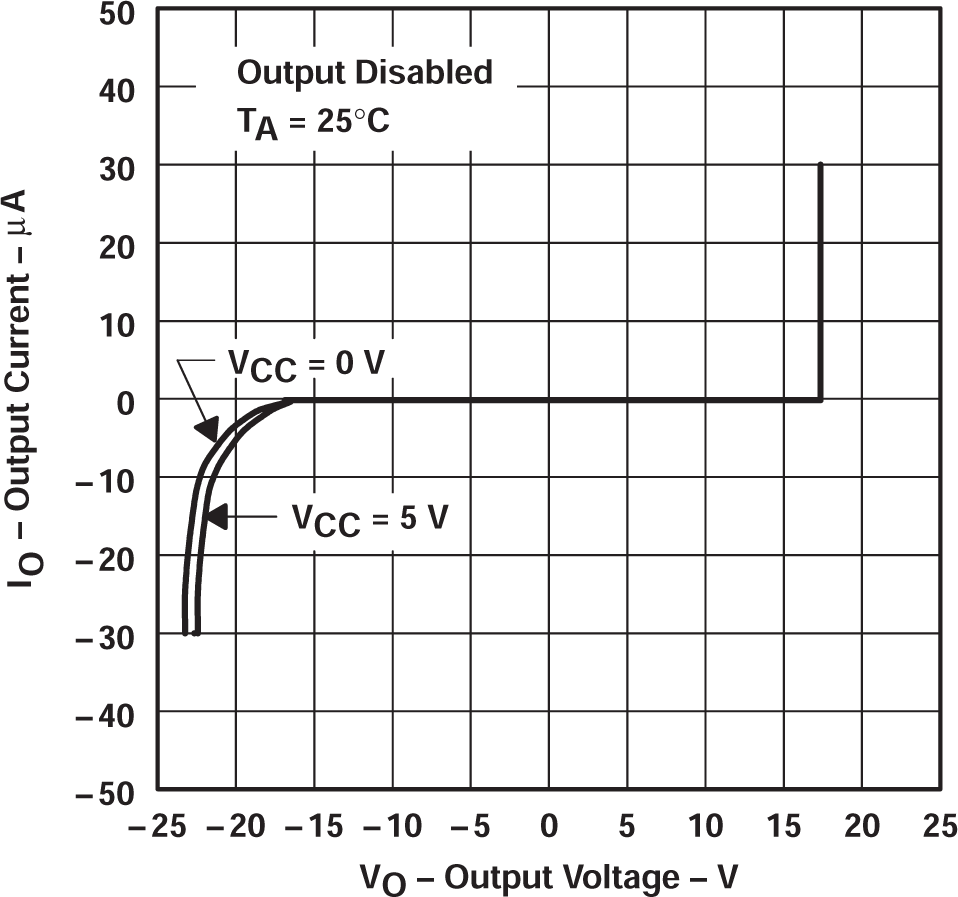

Figure 5-4 Output Current vs Output
Voltage

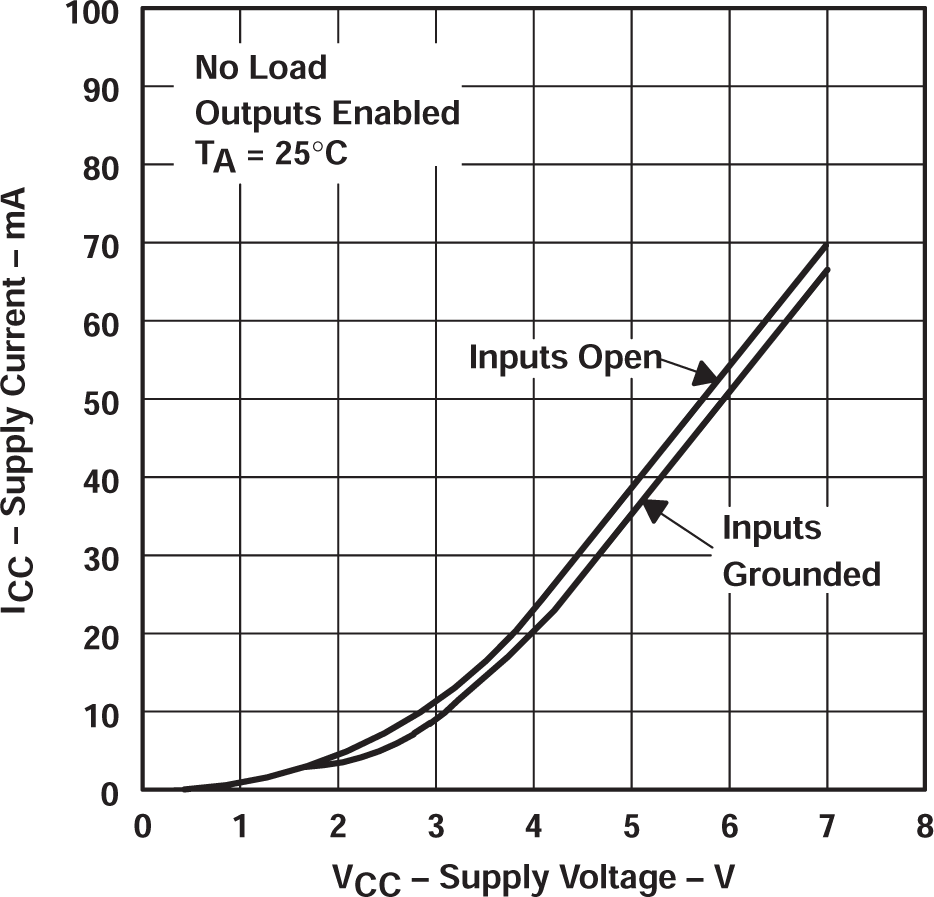

Figure 5-6 Supply Current vs Supply
Voltage
