3 說明
SN74LXCH8T245 是一款 8 位雙電源同相雙向電壓電平轉換器件，具有總線保持電路。Ax 引腳和控制引腳（DIR 和 OE）以 VCCA 邏輯電平為基準，Bx 引腳以 VCCB 邏輯電平為基準。A 端口能夠接受 1.1V 至 5.5V 的 I/O 電壓，而 B 端口可接受 1.1V 至 5.5V 的 I/O 電壓。如果 OE 設為低電平，DIR 上為高電平時允許數據從 A 傳輸?shù)?B，DIR 上為低電平時允許數據從 B 傳輸?shù)?A。OE 設為高電平時，Ax 和 Bx 引腳均處于高阻抗?fàn)顟B(tài)。請參閱器件功能模式，了解控制邏輯的運行摘要。
器件信息(1)
| 器件型號 | 封裝 | 封裝尺寸（標稱值） |
|---|---|---|
| SN74LXCH8T245PWR | TSSOP (24) | 7.80mm × 6.40mm |
| SN74LXCH8T245RHLR | VQFN (24) | 5.50mm × 3.50mm |
(1) 如需了解所有可用封裝，請參閱數據表末尾的可訂購產品附錄。

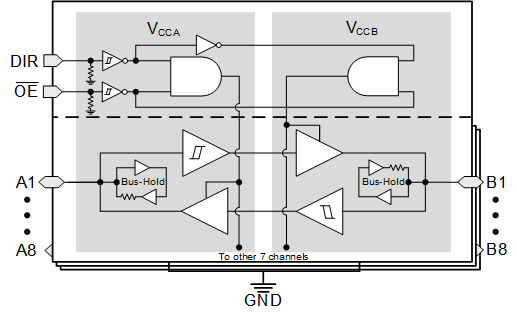

功能模塊圖
