ZHCSRE9C August 2005 – December 2022 SN74LVCH8T245
PRODUCTION DATA
- 1 特性
- 2 應用
- 3 說明
- 4 Revision History
- 5 Pin Configuration and Functions
-
6 Specifications
- 6.1 Absolute Maximum Ratings
- 6.2 ESD Ratings
- 6.3 Recommended Operating Conditions
- 6.4 Thermal Information
- 6.5 Electrical Characteristics
- 6.6 Switching Characteristics: VCCA = 1.8 V ± 0.15 V
- 6.7 Switching Characteristics: VCCA = 2.5 V ± 0.2 V
- 6.8 Switching Characteristics: VCCA = 3.3 V ± 0.3 V
- 6.9 Switching Characteristics: VCCA = 5 V ± 0.5 V
- 6.10 Operating Characteristics
- 6.11 Typical Characteristics
- 7 Parameter Measurement Information
- 8 Detailed Description
- 9 Application and Implementation
- 10Power Supply Recommendations
- 11Layout
- 12Device and Documentation Support
- 13Mechanical, Packaging, and Orderable Information
封裝選項
機械數據 (封裝 | 引腳)
散熱焊盤機械數據 (封裝 | 引腳)
訂購信息
9.2 Typical Application

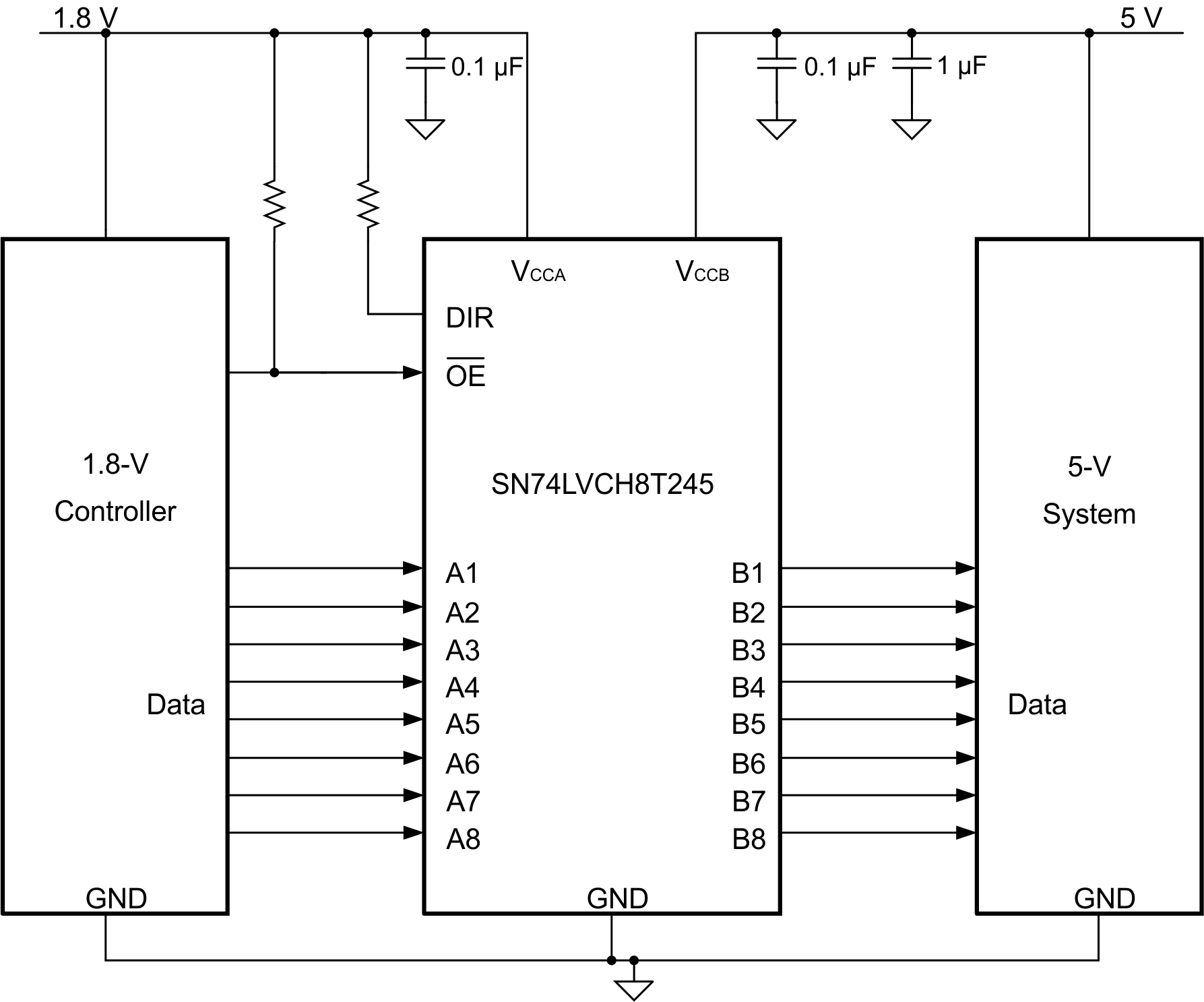

Figure 9-1 Typical Application Circuit
