9 Parameter Measurement Information For A to B
VCCA = 4.5 V to 5.5 V and VCCB = 3.6 V to 5.5 V

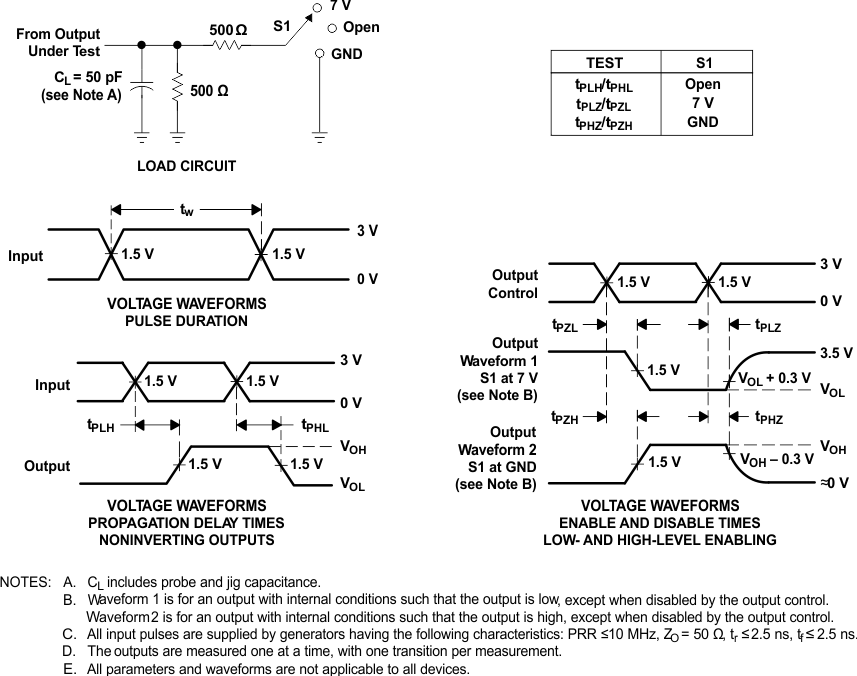

Figure 9-1 Load
Circuit and Voltage Waveforms
