7 Parameter Measurement Information

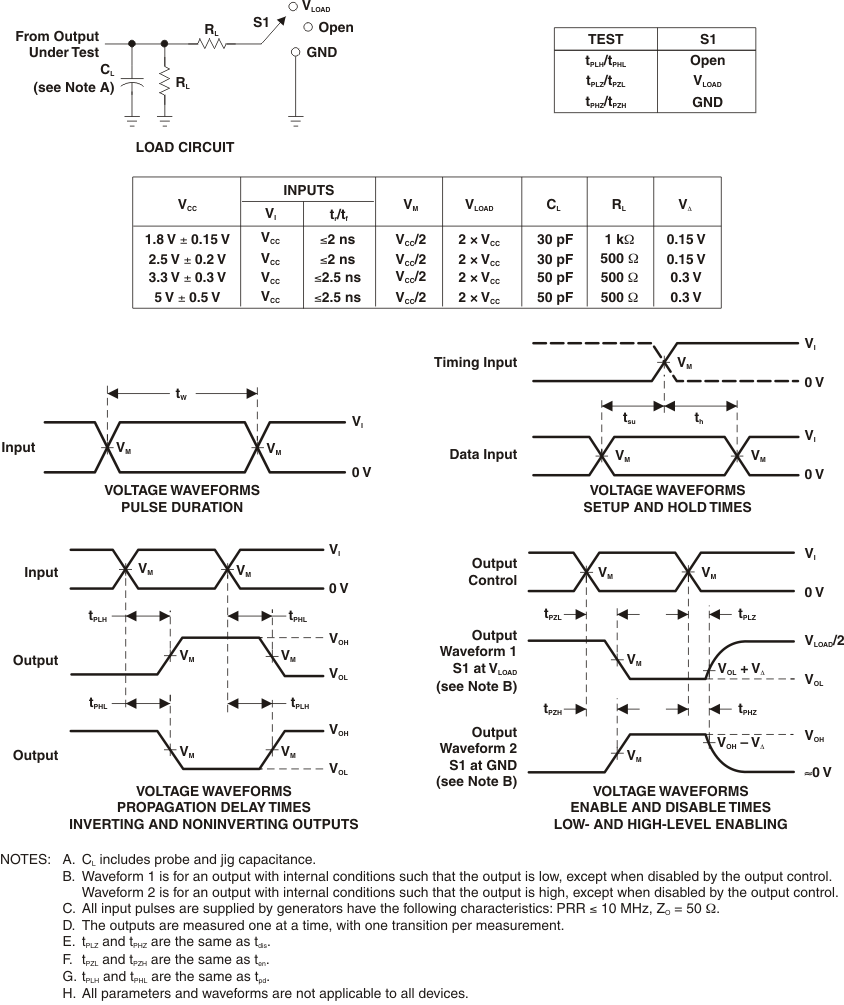

Figure 2. Load Circuit and Voltage Waveforms

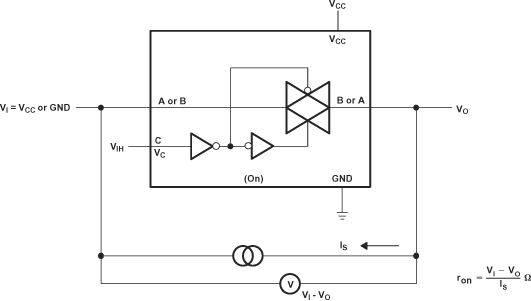

Figure 3. ON-State Resistance Test Circuit

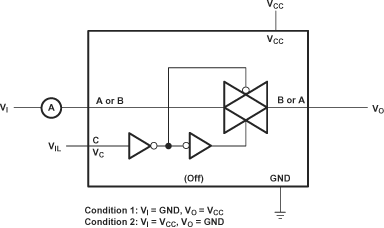

Figure 4. OFF-State Switch Leakage-Current Test Circuit

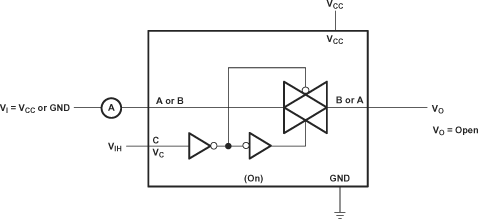

Figure 5. ON-State Leakage-Current Test Circuit

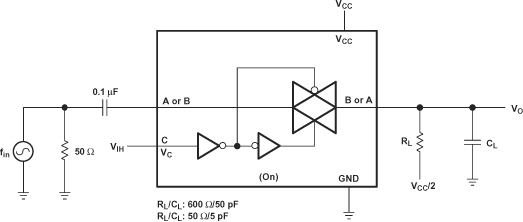

Figure 6. Frequency Response (Switch On)

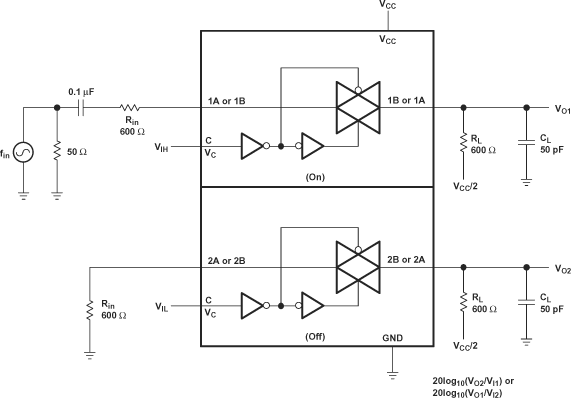

Figure 7. Crosstalk (Between Switches)

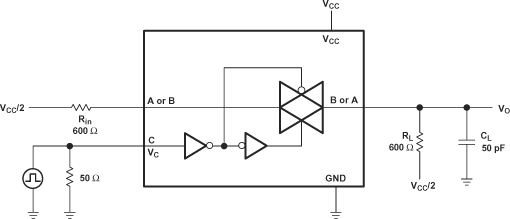

Figure 8. Crosstalk (Control Input, Switch Output)

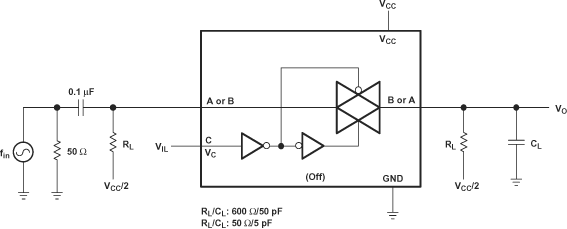

Figure 9. Feedthrough (Switch Off)

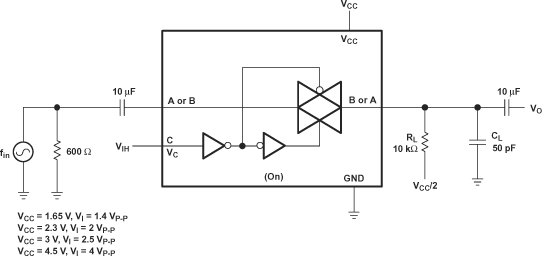

Figure 10. Sine-Wave Distortion
