6 Specifications
6.1 Absolute Maximum Ratings
over operating free-air temperature range (unless otherwise noted)(1)| MIN | MAX | UNIT | |||
|---|---|---|---|---|---|
| VCC | Supply voltage | –0.5 | 6.5 | V | |
| VI | Input voltage(2) | –0.5 | 6.5 | V | |
| VO | Voltage applied to Y output in the high-impedance or power-off state(2) | –0.5 | 6.5 | V | |
| VO | Voltage applied to any output in the high or low state(2) (3) | –0.5 | VCC + 0.5 | V | |
| IIK | Input clamp current | VI < 0 | –50 | mA | |
| IOK | Output clamp current | VO < 0 | –50 | mA | |
| IO | Continuous output current | ±50 | mA | ||
| Continuous current through VCC or GND | ±100 | mA | |||
| TJ | Junction temperature | 150 | °C | ||
| Tstg | Storage temperature | –65 | 150 | °C | |
(1) Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings only, which do not imply functional operation of the device at these or any other conditions beyond those indicated under Recommended Operating Conditions. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
(2) The input and output negative-voltage ratings may be exceeded if the input and output current ratings are observed.
(3) The value of VCC is provided in the recommended operating conditions table.
6.2 ESD Ratings
| VALUE | UNIT | |||
|---|---|---|---|---|
| V(ESD) | Electrostatic discharge | Human body model (HBM), per AEC Q100-002(1) | ±2000 | V |
| Charged-device model (CDM), per AEC Q100-011 | ±1000 | |||
(1) AEC Q100-002 indicates that HBM stressing shall be in accordance with the ANSI/ESDA/JEDEC JS-001 specification.
6.3 Recommended Operating Conditions(1)
| MIN | MAX | UNIT | |||
|---|---|---|---|---|---|
| VCC | Supply voltage | Operating | 1.65 | 5.5 | V |
| Data retention only | 1.5 | ||||
| Crystal oscillator use | 2 | ||||
| VIH | High-level input voltage | VCC = 1.65 V to 5.5 V | 0.75 × VCC | V | |
| VIL | Low-level input voltage | VCC = 1.65 V to 5.5 V | 0.25 × VCC | V | |
| VI | Input voltage | 0 | 5.5 | V | |
| VO | Output voltage | X2, Y | 0 | VCC | V |
| Y output only, Power-down mode, VCC = 0 V | 0 | 5.5 | |||
| IOH | High-level output current | VCC = 1.65 V | –4 | mA | |
| VCC = 2.3 V | –8 | ||||
| VCC = 3 V | –16 | ||||
| –24 | |||||
| VCC = 4.5 V | –32 | ||||
| IOL | Low-level output current | VCC = 1.65 V | 4 | mA | |
| VCC = 2.3 V | 8 | ||||
| VCC = 3 V | 16 | ||||
| 24 | |||||
| VCC = 4.5 V | 32 | ||||
| Δt/Δv | Input transition rise or fall rate | VCC = 1.8 V ± 0.15 V, 2.5 V ± 0.2 V | 20 | ns/V | |
| VCC = 3.3 V ± 0.3 V | 10 | ||||
| VCC = 5 V ±0.5 V | 10 | ||||
| TA | Operating free-air temperature | –40 | 125 | °C | |
(1) All unused inputs of the device must be held at VCC or GND to ensure proper device operation. Refer to the TI application report, Implications of Slow or Floating CMOS Inputs, SCBA004.
6.4 Thermal Information
| THERMAL METRIC(1) | SN74LVC1GX04 | UNIT | |||
|---|---|---|---|---|---|
| DBV (SOT-23) | DCK (SC70) | DRL (SOT) | |||
| 6 PINS | 6 PINS | 6 PINS | |||
| RθJA | Junction-to-ambient thermal resistance | 165 | 259 | 142 | °C/W |
(1) For more information about traditional and new thermal metrics, see the Semiconductor and IC Package Thermal Metrics application report, SPRA953.
6.5 Electrical Characteristics
over recommended operating free-air temperature range (unless otherwise noted)| PARAMETER | TEST CONDITIONS | VCC | MIN | TYP(1) | MAX | UNIT | |||
|---|---|---|---|---|---|---|---|---|---|
| VOH | IOH = –100 μA | VI = 5.5 V or GND | TA = –40°C to 125°C | 1.65 V to 5.5 V | VCC – 0.1 | V | |||
| IOH = –4 mA | 1.65 V | 1.2 | |||||||
| IOH = –8 mA | 2.3 V | 1.9 | |||||||
| IOH = –16 mA | 3 V | 2.4 | |||||||
| IOH = –24 mA | 2.3 | ||||||||
| IOH = –32 mA | 4.5 V | 3.8 | |||||||
| VOL | IOL = 100 μA | VI = 5.5 V or GND | TA = –40°C to 125°C | 1.65 V to 5.5 V | 0.1 | V | |||
| IOL = 4 mA | 1.65 V | 0.45 | |||||||
| IOL = 8 mA | 2.3 V | 0.3 | |||||||
| IOL = 16 mA | TA = –40°C to 125°C | 3 V | 0.4 | ||||||
| IOL = 24 mA | TA = –40°C to 85°C | 3 V | 0.55 | ||||||
| TA = –40°C to 125°C | 0.63 | ||||||||
| IOL = 32 mA | TA = –40°C to 85°C | 4.5 V | 0.55 | ||||||
| TA = –40°C to 125°C | 0.7 | ||||||||
| II | X1 | VI = 5.5 V or GND | TA = –40°C to 125°C | 0 to 5.5 V | ±5 | μA | |||
| Ioff | X1, Y | VI or VO = 5.5 V | TA = –40°C to 125°C | 0 | ±10 | μA | |||
| ICC | VI = 5.5 V or GND, IO = 0 | TA = –40°C to 125°C | 1.65 V to 5.5 V | 10 | μA | ||||
| Ci | VI = VCC or GND | 3.3 V | 7 | pF | |||||
(1) All typical values are at VCC = 3.3 V, TA = 25°C.
6.6 Switching Characteristics, SN74LVC1GX04
over recommended operating free-air temperature range, CL = 15 pF (unless otherwise noted) (see Figure 2)| PARAMETER | FROM (INPUT) |
TO (OUTPUT) |
TEMPERATURE | VCC | MIN | MAX | UNIT |
|---|---|---|---|---|---|---|---|
| tpd | X1 | X2 | –40°C to 85°C | VCC = 1.8 V ± 0.15 V | 1 | 4 | ns |
| VCC = 2.5 V ± 0.2 V | 0.8 | 2.6 | |||||
| VCC = 3.3 V ± 0.3 V | 0.6 | 2.4 | |||||
| VCC = 5 V ± 0.5 V | 0.5 | 2 | |||||
| Y(1) | –40°C to 85°C | VCC = 1.8 V ± 0.15 V | 3.5 | 10 | |||
| VCC = 2.5 V ± 0.2 V | 2.2 | 6 | |||||
| VCC = 3.3 V ± 0.3 V | 2 | 5 | |||||
| VCC = 5 V ± 0.5 V | 1.5 | 3.5 |
(1) X2 – no external load
6.7 Switching Characteristics, SN74LVC1GX04
over recommended operating free-air temperature range, CL = 30 pF or 50 pF (unless otherwise noted) (see Figure 3)| PARAMETER | FROM (INPUT) |
TO (OUTPUT) |
TEMPERATURE | VCC | MIN | MAX | UNIT |
|---|---|---|---|---|---|---|---|
| tpd | X1 | X2 | –40°C to 85°C | VCC = 1.8 V ± 0.15 V | 1.1 | 7 | ns |
| VCC = 2.5 V ± 0.2 V | 0.8 | 4 | |||||
| VCC = 3.3 V ± 0.3 V | 0.8 | 3.7 | |||||
| VCC = 5 V ± 0.5 V | 0.8 | 3 | |||||
| Y(1) | –40°C to 85°C | VCC = 1.8 V ± 0.15 V | 3.8 | 18 | |||
| VCC = 2.5 V ± 0.2 V | 2 | 7.4 | |||||
| VCC = 3.3 V ± 0.3 V | 2 | 7.8 | |||||
| VCC = 5 V ± 0.5 V | 2 | 5 |
(1) X2 – no external load
6.8 Switching Characteristics, SN74LVC1GX04
over recommended operating free-air temperature range, CL = 30 pF or 50 pF (unless otherwise noted) (see Figure 3)| PARAMETER | FROM (INPUT) |
TO (OUTPUT) |
TEMPERATURE | VCC | MIN | MAX | UNIT |
|---|---|---|---|---|---|---|---|
| tpd | X1 | X2 | –40°C to 125°C | VCC = 1.8 V ± 0.15 V | 1.1 | 8 | ns |
| VCC = 2.5 V ± 0.2 V | 0.8 | 5 | |||||
| VCC = 3.3 V ± 0.3 V | 0.8 | 4.3 | |||||
| VCC = 5 V ± 0.5 V | 0.8 | 3.5 | |||||
| Y(1) | –40°C to 125°C | VCC = 1.8 V ± 0.15 V | 3.8 | 20 | |||
| VCC = 2.5 V ± 0.2 V | 2 | 8.4 | |||||
| VCC = 3.3 V ± 0.3 V | 2 | 8.8 | |||||
| VCC = 5 V ± 0.5 V | 2 | 5.5 |
(1) X2 – no external load
6.9 Operating Characteristics
TA = 25°C| PARAMETER | TEST CONDITIONS |
VCC | TYP | UNIT | |
|---|---|---|---|---|---|
| Cpd | Power dissipation capacitance | f = 10 MHz | VCC = 1.8 V | 22 | pF |
| VCC = 2.5 V | 22 | ||||
| VCC = 3.3 V | 24 | ||||
| VCC = 5 V | 35 | ||||
6.10 Typical Characteristics

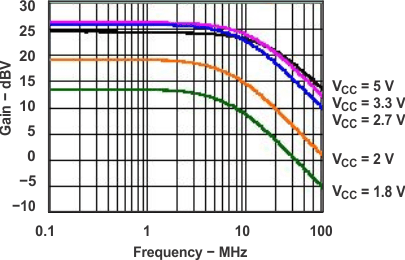

Figure 1. Open-Loop Gain Characteristics of Oscillator Amplifier
