8 Detailed Description
8.1 Overview
The SN74LVC1GX04 is optimized for creating a crystal oscillator circuit with a buffered square-wave output. This device is fully specified for partial-power-down applications using Ioff (Y output only). The Ioff circuitry disables the outputs, preventing damaging current back-flow through the device when it is powered down.
8.2 Functional Block Diagram

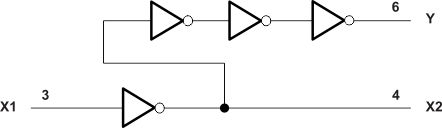

Figure 4. Logic Diagram (Positive Logic)
8.3 Feature Description
The first inverter is used as a linear amplifier for crystal oscillator.
The last three inverters ensure a fast edge square-wave at the Y output.
8.4 Device Functional Modes
The only intended device use is to generate a square-wave output using a crystal to set the operating frequency.
Table 1. Function Table
| INPUT X1 | OUTPUTS | |
|---|---|---|
| X2 | Y | |
| H | L | H |
| L | H | L |
