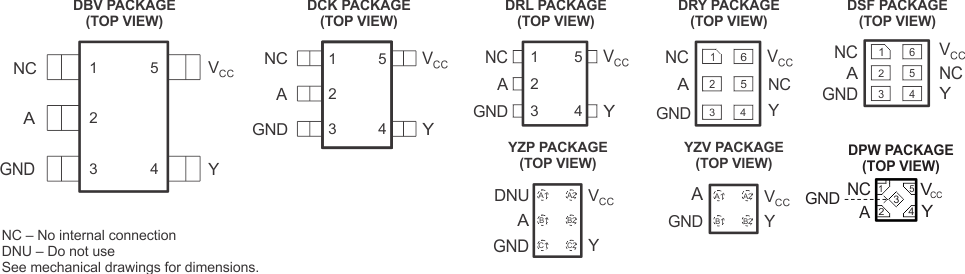

4 Pin Configuration and Functions
Pin Functions
| PIN | DESCRIPTION | |||||
|---|---|---|---|---|---|---|
| NAME | DBV, DCK, DRL | DSF, DRY | YZP | YZV | DPW | |
| NC | 1 | 1, 5 | A1, B2 | – | 1 | No connect |
| A | 2 | 2 | B1 | A1 | 2 | Input |
| GND | 3 | 3 | C1 | B1 | 3 | Ground |
| Y | 4 | 4 | C2 | B2 | 4 | Output |
| VCC | 5 | 6 | A2 | A2 | 5 | Power terminal |
