ZHCSRA3K April 1998 – March 2023 SN74LV164A
PRODMIX
- 1 特性
- 2 應用
- 3 說明
- 4 Revision History
- 5 Pin Configuration and Functions
-
6 Specifications
- 6.1 Absolute Maximum Ratings
- 6.2 ESD Ratings
- 6.3 Recommended Operating Conditions
- 6.4 Thermal Information
- 6.5 Electrical Characteristics
- 6.6 Timing Requirements: VCC = 2.5 V ± 0.2 V
- 6.7 Timing Requirements: VCC = 3.3 V ± 0.3 V
- 6.8 Timing Requirements: VCC = 5 V ± 0.5 V
- 6.9 Switching Characteristics: VCC = 2.5 V ± 0.2 V
- 6.10 Switching Characteristics: VCC = 3.3 V ± 0.3 V
- 6.11 Switching Characteristics: VCC = 5 V ± 0.5 V
- 6.12 Noise Characteristics
- 6.13 Operating Characteristics
- 6.14 Typical Characteristics
- 7 Parameter Measurement Information
- 8 Detailed Description
- 9 Application and Implementation
- 10Device and Documentation Support
- 11Mechanical, Packaging, and Orderable Information
封裝選項
請參考 PDF 數據表獲取器件具體的封裝圖。
機械數據 (封裝 | 引腳)
- D|14
- RGY|14
- DB|14
- PW|14
- DGV|14
- BQA|14
- NS|14
散熱焊盤機械數據 (封裝 | 引腳)
訂購信息
7 Parameter Measurement Information

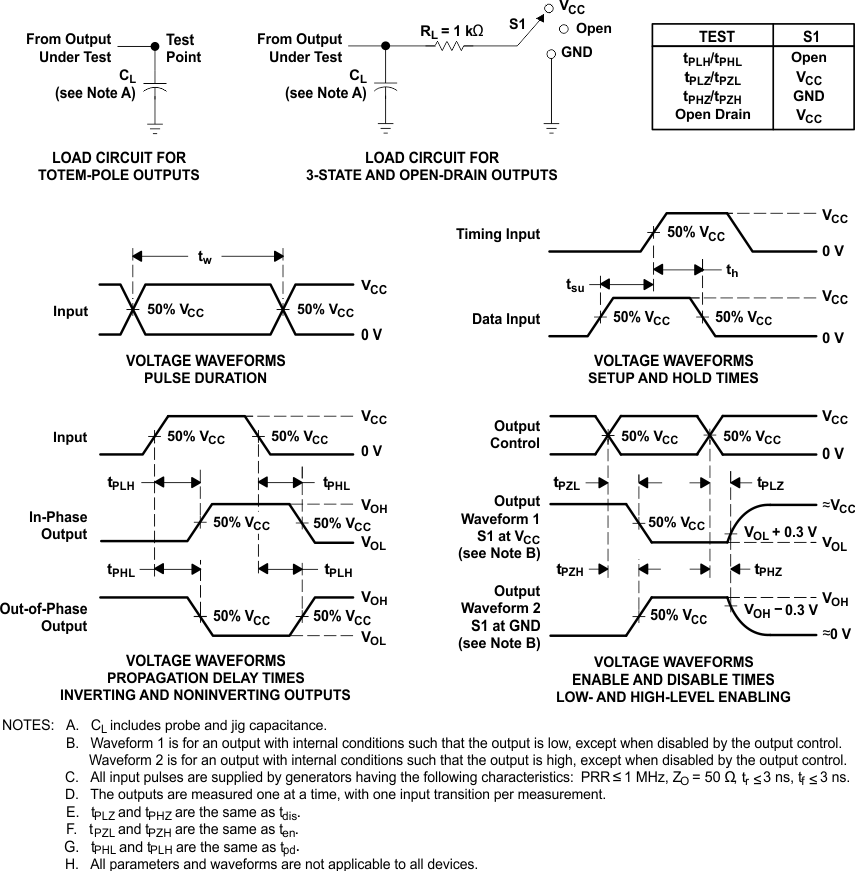

Figure 7-1 Load
Circuit and Voltage Waveforms
