6.13 Operating Characteristics
TA = 25°C
| PARAMETER | TEST CONDITIONS | VCC | TYP | UNIT | ||
|---|---|---|---|---|---|---|
| Cpd | Power dissipation capacitance | CL = 50 pF | f = 10 MHz | 3.3 V | 48.1 | pF |
| 5 V | 47.5 | |||||

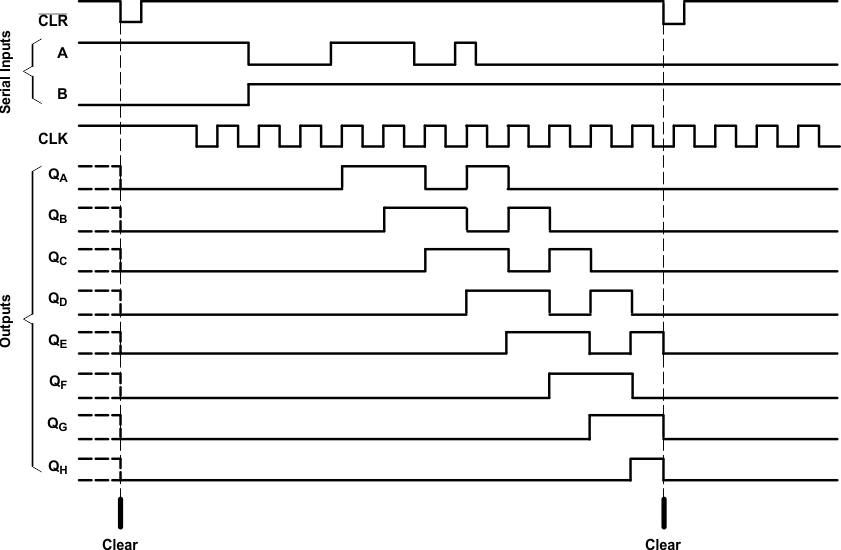

Figure 6-1 Typical Clear, Shift, and Clear Sequences
