ZHCSKK0F December 2019 – December 2021 SN74HCS595-Q1
PRODUCTION DATA
- 1 特性
- 2 應用
- 3 說明
- 4 Revision History
- 5 Pin Configuration and Functions
- 6 Specifications
- 7 Parameter Measurement Information
- 8 Detailed Description
- 9 Application and Implementation
- 10Power Supply Recommendations
- 11Layout
- 12Device and Documentation Support
- 13Mechanical, Packaging, and Orderable Information
封裝選項
機械數據 (封裝 | 引腳)
散熱焊盤機械數據 (封裝 | 引腳)
- BQB|16
訂購信息

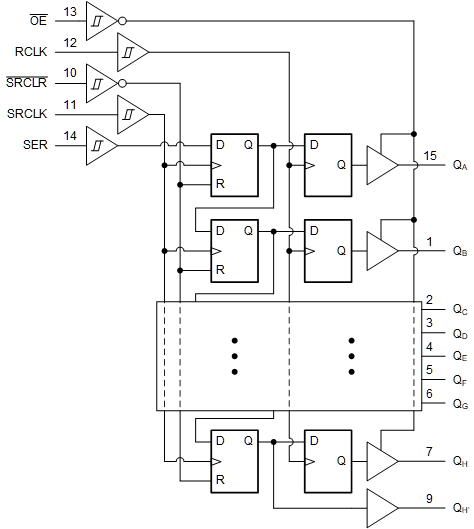

8.1 Functional Block Diagram
Figure 8-1 Logic Diagram (Positive Logic)
for the SN74HCS595-Q1
