7 Parameter Measurement Information
VTT = 1.2 V, VREF = 0.8 V for GTL and VTT = 1.5 V, VREF = 1 V FOR GTL+

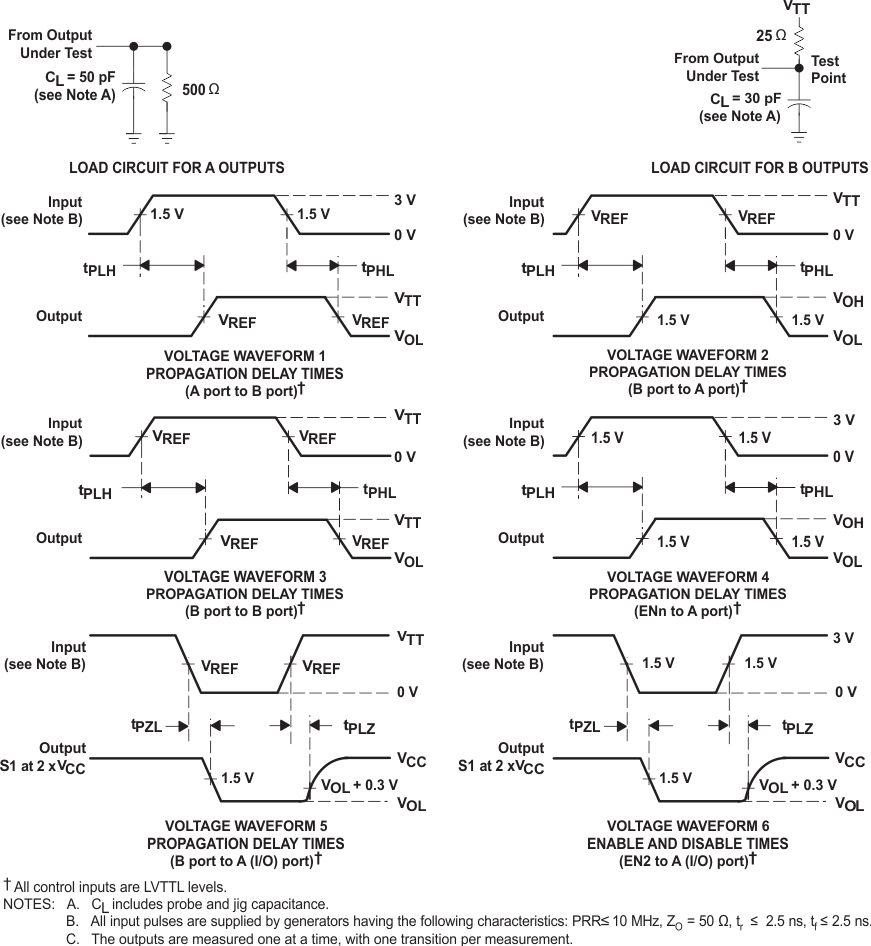

Figure 4. Load Circuits and Voltage Waveforms
