5 Pin Configuration and Functions

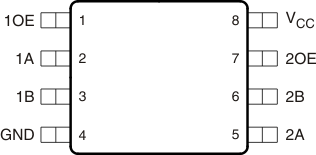

Figure 5-1 PW Package8-Pin TSSOP
Top View
Figure 5-2 DCU Package8-Pin VSSOP
Top View
Table 5-1 Pin Functions
| PIN | TYPE(1) | DESCRIPTION | |
|---|---|---|---|
| NAME | NO. | ||
| 1A | 2 | I/O | Channel 1 A port |
| 1B | 3 | I/O | Channel 1 B port |
| 1OE | 1 | I | Output Enable for switch 1 |
| 2A | 5 | I/O | Channel 2 A port |
| 2B | 6 | I/O | Channel 2 B port |
| 2OE | 7 | I | Output Enable for switch 2 |
| GND | 4 | P | Ground |
| Vcc | 8 | P | Power supply |
(1) I = input, O = output, I/O =
input and output, P = power
