ZHCSMK1I February 2008 – February 2025 SN74AVC4T774
PRODUCTION DATA
- 1
- 1 特性
- 2 應用
- 3 說明
- 4 Pin Configuration and Functions
-
5 Specifications
- 5.1 Absolute Maximum Ratings
- 5.2 ESD Ratings
- 5.3 Recommended Operating Conditions
- 5.4 Thermal Information
- 5.5 Electrical Characteristics
- 5.6 Switching Characteristics: VCCA = 1.2V ± 0.1V
- 5.7 Switching Characteristics: VCCA = 1.5V ± 0.1V
- 5.8 Switching Characteristics: VCCA = 1.8V ± 0.15V
- 5.9 Switching Characteristics: VCCA = 2.5V ± 0.2V
- 5.10 Switching Characteristics: VCCA = 3.3V ± 0.3V
- 5.11 Typical Characteristics
- 6 Parameter Measurement Information
- 7 Detailed Description
- 8 Application and Implementation
- 9 Device and Documentation Support
- 10Revision History
- 11Mechanical, Packaging, and Orderable Information
封裝選項
機械數據 (封裝 | 引腳)
散熱焊盤機械數據 (封裝 | 引腳)
訂購信息
5.11 Typical Characteristics

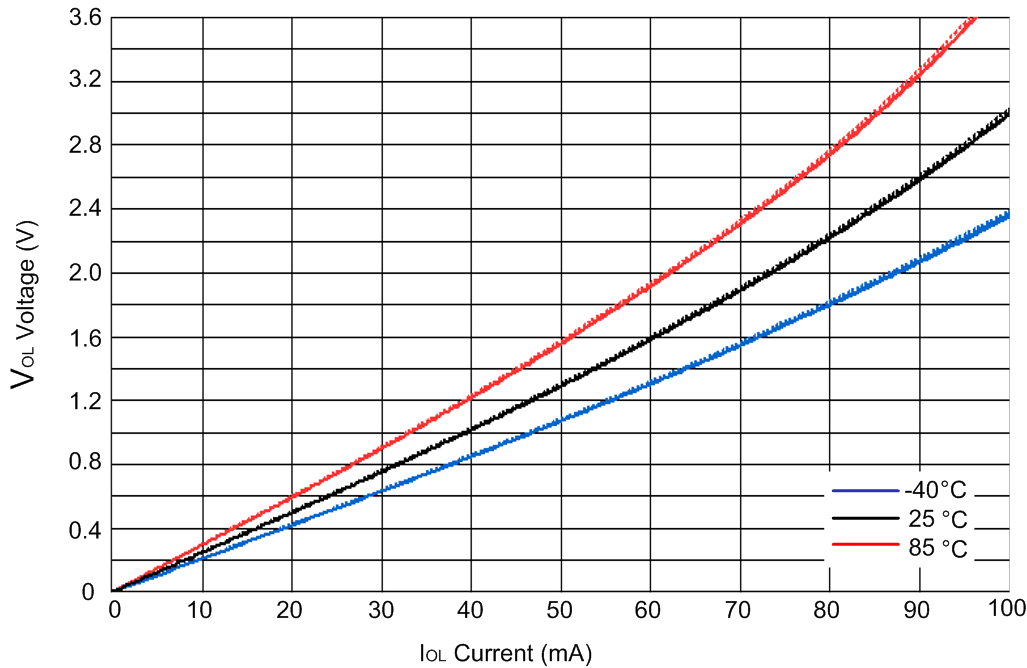

Figure 5-1 Low-Level Output Voltage
(VOL) vs Low-Level Current (IOL) at
VCCA = VCCB = 3.6V
Figure 5-2 High-Level Output Voltage
(VOH) vs High-Level Current (IOH) at
VCCA = VCCB = 3.6V ?
