7.2 Enable and Disable Times
A. CL includes probe and jig capacitance.
B.
C. All input pulses are supplied by generators having the following characteristics: PRR ≤ 10 MHz, ZO = 50 Ω,
tr and tf = 3 ns.
tr and tf = 3 ns.
D. The outputs are measured one at a time, with one transition per measurement.
E. tPLZ and tPHZ are the same as tdis.
F. tPZL and tPZH are the same as ten.
G. All parameters and waveforms are not applicable to all devices.

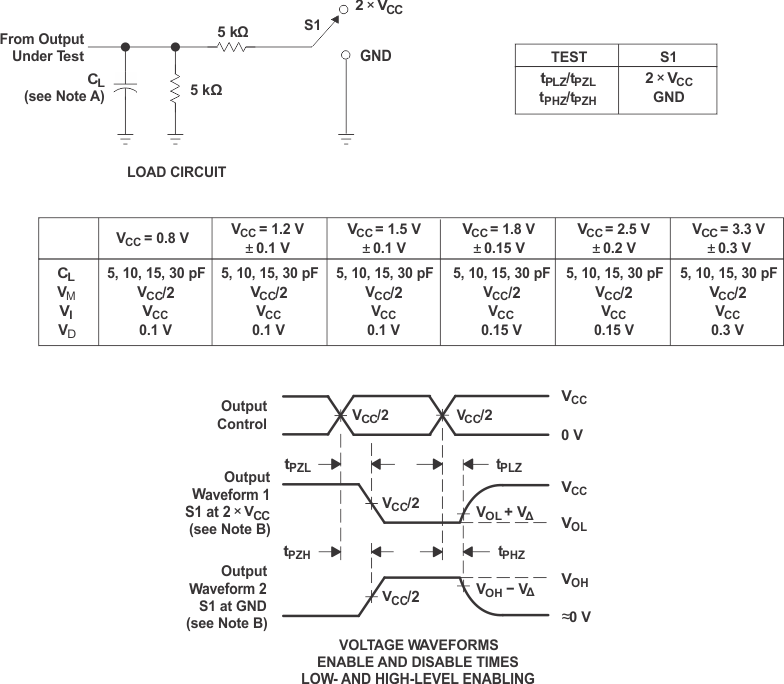

Figure 7-2 Load Circuit and Voltage Waveforms
