SCES591J JULY 2004 – June 2014 SN74AUP1G07
PRODUCTION DATA.
- 1 Features
- 2 Applications
- 3 Description
- 4 Simplified Schematic
- 5 Revision History
- 6 Pin Configuration and Functions
-
7 Specifications
- 7.1 Absolute Maximum Ratings
- 7.2 Handling Ratings
- 7.3 Recommended Operating Conditions
- 7.4 Thermal Information
- 7.5 Electrical Characteristics
- 7.6 Switching Characteristics, CL = 5 pF
- 7.7 Switching Characteristics, CL = 10 pF
- 7.8 Switching Characteristics, CL = 15 pF
- 7.9 Switching Characteristics, CL = 30 pF
- 7.10 Operating Characteristics

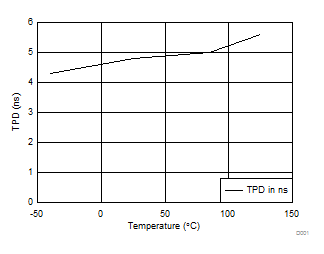

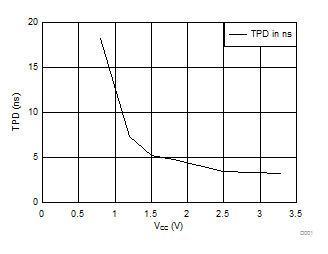

- 7.11 Typical Characteristics
- 8 Parameter Measurement Information
- 9 Detailed Description
- 10Application and Implementation
- 11Power Supply Recommendations
- 12Layout
- 13Device and Documentation Support
- 14Mechanical, Packaging, and Orderable Information
7 Specifications
7.1 Absolute Maximum Ratings(1)
over operating free-air temperature range (unless otherwise noted)| MIN | MAX | UNIT | |||
|---|---|---|---|---|---|
| VCC | Supply voltage range | –0.5 | 4.6 | V | |
| VI | Input voltage range(2) | –0.5 | 4.6 | V | |
| VO | Voltage range applied to any output in the high-impedance or power-off state(2) | –0.5 | 4.6 | V | |
| VO | Voltage range applied to any output in the high or low state(2) | –0.5 | VCC + 0.5 | V | |
| IIK | Input clamp current | VI < 0 | –50 | mA | |
| IOK | Output clamp current | VO < 0 | –50 | mA | |
| IO | Continuous output current | ±20 | mA | ||
| Continuous current through VCC or GND | ±50 | mA | |||
(1) Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under Recommended Operating Conditions is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
(2) The input negative-voltage and output voltage ratings may be exceeded if the input and output current ratings are observed.
7.2 Handling Ratings
| MIN | MAX | UNIT | |||
|---|---|---|---|---|---|
| Tstg | Storage temperature range | –65 | 150 | °C | |
| V(ESD) | Electrostatic discharge | Human body model (HBM), per ANSI/ESDA/JEDEC JS-001, all pins(1) | 0 | 2000 | V |
| Charged device model (CDM), per JEDEC specification JESD22-C101, all pins(2) | 0 | 1000 | |||
(1) JEDEC document JEP155 states that 500-V HBM allows safe manufacturing with a standard ESD control process.
(2) JEDEC document JEP157 states that 250-V CDM allows safe manufacturing with a standard ESD control process.
7.3 Recommended Operating Conditions
over operating free-air temperature range (unless otherwise noted)(1)(1) All unused inputs of the device must be held at VCC or GND to ensure proper device operation. Refer to the TI application report, Implications of Slow or Floating CMOS Inputs, literature number SCBA004.
7.4 Thermal Information
| THERMAL METRIC(1) | DBV | DCK | DPW | DRL | DRY | DSF | UNIT | |
|---|---|---|---|---|---|---|---|---|
| 5 PINS | 5 PINS | 5 PINS | 5 PINS | 6 PINS | 6 PINS | |||
| RθJA | Junction-to-ambient thermal resistance | 298.6 | 314.4 | 291.8 | 349.7 | 554.9 | 407.1 | °C/W |
| RθJC(top) | Junction-to-case (top) thermal resistance | 240.2 | 128.7 | 224.2 | 120.5 | 385.4 | 232.0 | |
| RθJB | Junction-to-board thermal resistance | 134.6 | 100.6 | 245.8 | 171.4 | 388.2 | 306.9 | |
| ψJT | Junction-to-top characterization parameter | 114.5 | 7.1 | 31.4 | 10.8 | 159.0 | 40.3 | |
| ψJB | Junction-to-board characterization parameter | 133.9 | 99.8 | 245.6 | 169.4 | 384.1 | 306.0 | |
| RθJC(bot) | Junction-to-case (bottom) thermal resistance | n/a | n/a | 195.4 | n/a | n/a | n/a | |
(1) For more information about traditional and new thermal metrics, see the IC Package Thermal Metrics application report, SPRA953.
7.5 Electrical Characteristics
over recommended operating free-air temperature range (unless otherwise noted)| PARAMETER | TEST CONDITIONS | VCC | TA = 25°C | TA = –40°C to 85°C |
UNIT | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| MIN | TYP | MAX | MIN | MAX | ||||||
| VOL | IOL = 20 µA | 0.8 V to 3.6 V | 0.1 | 0.1 | V | |||||
| IOL = 1.1 mA | 1.1 V | 0.3 × VCC | 0.3 × VCC | |||||||
| IOL = 1.7 mA | 1.4 V | 0.31 | 0.37 | |||||||
| IOL = 1.9 mA | 1.65 V | 0.31 | 0.35 | |||||||
| IOL = 2.3 mA | 2.3 V | 0.31 | 0.33 | |||||||
| IOL = 3.1 mA | 0.44 | 0.45 | ||||||||
| IOL = 2.7 mA | 3 V | 0.31 | 0.33 | |||||||
| IOL = 4 mA | 0.44 | 0.45 | ||||||||
| II | A input | VI = GND to 3.6 V | 0 V to 3.6 V | 0.1 | 0.5 | µA | ||||
| Ioff | VI or VO = 0 V to 3.6 V | 0 V | 0.2 | 0.6 | µA | |||||
| ΔIoff | VI or VO = 0 V to 3.6 V | 0 V to 0.2 V | 0.2 | 0.6 | µA | |||||
| ICC | VI = GND or VCC to 3.6 V, | IO = 0 | 0.8 V to 3.6 V | 0.5 | 0.9 | µA | ||||
| ΔICC | VI = VCC – 0.6 V, | IO = 0 | 3.3 V | 40 | 50 | µA | ||||
| Ci | VI = VCC or GND | 0 V | 1.5 | pF | ||||||
| 3.6 V | 1.7 | |||||||||
| Co | VO = GND | 0 V | 1.7 | pF | ||||||
7.6 Switching Characteristics, CL = 5 pF
over recommended operating free-air temperature range (unless otherwise noted) (see Figure 3 and Figure 4)| PARAMETER | FROM (INPUT) |
TO (OUTPUT) |
VCC | TA = 25°C | TA = –40°C to 85°C |
UNIT | |||
|---|---|---|---|---|---|---|---|---|---|
| MIN | TYP | MAX | MIN | MAX | |||||
| tpd | A | Y | 0.8 V | 12.2 | ns | ||||
| 1.2 V ± 0.1 V | 3.4 | 5.1 | 7.5 | 1.5 | 14.7 | ||||
| 1.5 V ± 0.1 V | 2.3 | 3.6 | 5.1 | 1.3 | 8.3 | ||||
| 1.8 V ± 0.15 V | 2.4 | 3.1 | 4 | 1 | 6.3 | ||||
| 2.5 V ± 0.2 V | 1.5 | 2.1 | 2.9 | 0.9 | 4.1 | ||||
| 3.3 V ± 0.3 V | 1.8 | 2.2 | 2.8 | 1.1 | 3.3 | ||||
7.7 Switching Characteristics, CL = 10 pF
over recommended operating free-air temperature range (unless otherwise noted) (see Figure 3 and Figure 4)| PARAMETER | FROM (INPUT) |
TO (OUTPUT) |
VCC | TA = 25°C | TA = –40°C to 85°C |
UNIT | |||
|---|---|---|---|---|---|---|---|---|---|
| MIN | TYP | MAX | MIN | MAX | |||||
| tpd | A | Y | 0.8 V | 15 | ns | ||||
| 1.2 V ± 0.1 V | 4 | 6.2 | 9 | 2.4 | 16.2 | ||||
| 1.5 V ± 0.1 V | 3.1 | 4.4 | 6.1 | 2 | 9.4 | ||||
| 1.8 V ± 0.15 V | 3.3 | 3.9 | 4.8 | 1.6 | 7.1 | ||||
| 2.5 V ± 0.2 V | 2.1 | 2.8 | 3.5 | 1.3 | 4.8 | ||||
| 3.3 V ± 0.3 V | 2.3 | 3 | 4 | 1.4 | 4.5 | ||||
7.8 Switching Characteristics, CL = 15 pF
over recommended operating free-air temperature range (unless otherwise noted) (see Figure 3 and Figure 4)| PARAMETER | FROM (INPUT) |
TO (OUTPUT) |
VCC | TA = 25°C | TA = –40°C to 85°C |
UNIT | |||
|---|---|---|---|---|---|---|---|---|---|
| MIN | TYP | MAX | MIN | MAX | |||||
| tpd | A | Y | 0.8 V | 18.2 | ns | ||||
| 1.2 V ± 0.1 V | 4.9 | 7.3 | 10.4 | 3.2 | 17.6 | ||||
| 1.5 V ± 0.1 V | 3.8 | 5.2 | 6.8 | 2.6 | 10.2 | ||||
| 1.8 V ± 0.15 V | 3.4 | 4.8 | 6.7 | 2.2 | 7.9 | ||||
| 2.5 V ± 0.2 V | 2.4 | 3.4 | 4.5 | 1.9 | 5.3 | ||||
| 3.3 V ± 0.3 V | 2.2 | 3.7 | 5.4 | 1.8 | 6.1 | ||||
7.9 Switching Characteristics, CL = 30 pF
over recommended operating free-air temperature range (unless otherwise noted) (see Figure 3 and Figure 4)| PARAMETER | FROM (INPUT) |
TO (OUTPUT) |
VCC | TA = 25°C | TA = –40°C to 85°C |
UNIT | |||
|---|---|---|---|---|---|---|---|---|---|
| MIN | TYP | MAX | MIN | MAX | |||||
| tpd | A | Y | 0.8 V | 26.5 | ns | ||||
| 1.2 V ± 0.1 V | 8.1 | 10.7 | 14.4 | 4.5 | 21.9 | ||||
| 1.5 V ± 0.1 V | 6.5 | 7.7 | 9.4 | 3.8 | 13 | ||||
| 1.8 V ± 0.15 V | 5.8 | 7.5 | 9.7 | 3.2 | 11 | ||||
| 2.5 V ± 0.2 V | 4.5 | 5.4 | 6.7 | 3 | 7.1 | ||||
| 3.3 V ± 0.3 V | 3.9 | 6.3 | 9.7 | 2.8 | 10.4 | ||||
7.10 Operating Characteristics
TA = 25°C| PARAMETER | TEST CONDITIONS | VCC | TYP | UNIT | |
|---|---|---|---|---|---|
| Cpd | Power dissipation capacitance | f = 10 MHz | 0.8 V | 1 | pF |
| 1.2 V ± 0.1 V | 1 | ||||
| 1.5 V ± 0.1 V | 1 | ||||
| 1.8 V ± 0.15 V | 1 | ||||
| 2.5 V ± 0.2 V | 1 | ||||
| 3.3 V ± 0.3 V | 1 | ||||
