SCES591J JULY 2004 – June 2014 SN74AUP1G07
PRODUCTION DATA.
- 1 Features
- 2 Applications
- 3 Description
- 4 Simplified Schematic
- 5 Revision History
- 6 Pin Configuration and Functions
-
7 Specifications
- 7.1 Absolute Maximum Ratings
- 7.2 Handling Ratings
- 7.3 Recommended Operating Conditions
- 7.4 Thermal Information
- 7.5 Electrical Characteristics
- 7.6 Switching Characteristics, CL = 5 pF
- 7.7 Switching Characteristics, CL = 10 pF
- 7.8 Switching Characteristics, CL = 15 pF
- 7.9 Switching Characteristics, CL = 30 pF
- 7.10 Operating Characteristics
- 7.11 Typical Characteristics
- 8 Parameter Measurement Information
- 9 Detailed Description
- 10Application and Implementation
- 11Power Supply Recommendations
- 12Layout
- 13Device and Documentation Support
- 14Mechanical, Packaging, and Orderable Information

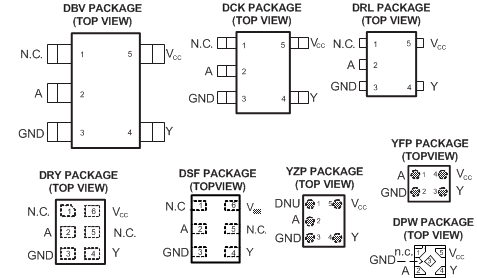

6 Pin Configuration and Functions
Pin Functions
| PIN | I/O | DESCRIPTION | |||||
|---|---|---|---|---|---|---|---|
| NAME | DBV, DCK, DRL | DSF, DRY | YFP | DPW | YZP | ||
| NC | 1 | 1, 5 | — | 1 | A1 | — | No Connection |
| A | 2 | 2 | A1 | 2 | B1 | I | Input A |
| GND | 3 | 3 | B1 | 3 | C1 | — | Ground Pin |
| Y | 4 | 4 | B2 | 4 | C2 | O | Output Y |
| VCC | 5 | 6 | A2 | 5 | A2 | — | Power Pin |
