7 Parameter Measurement Information

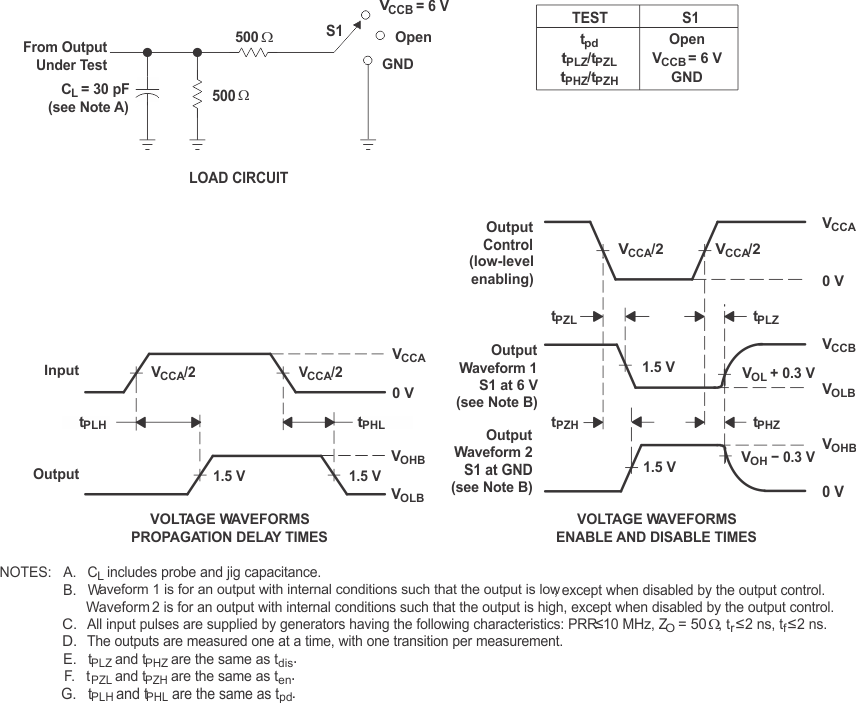

7.1 VCCA = 2.5 V ± 0.2 V to VCCB = 3.3 V ± 0.3 V
Figure 2. Load Circuit and Voltage Waveforms

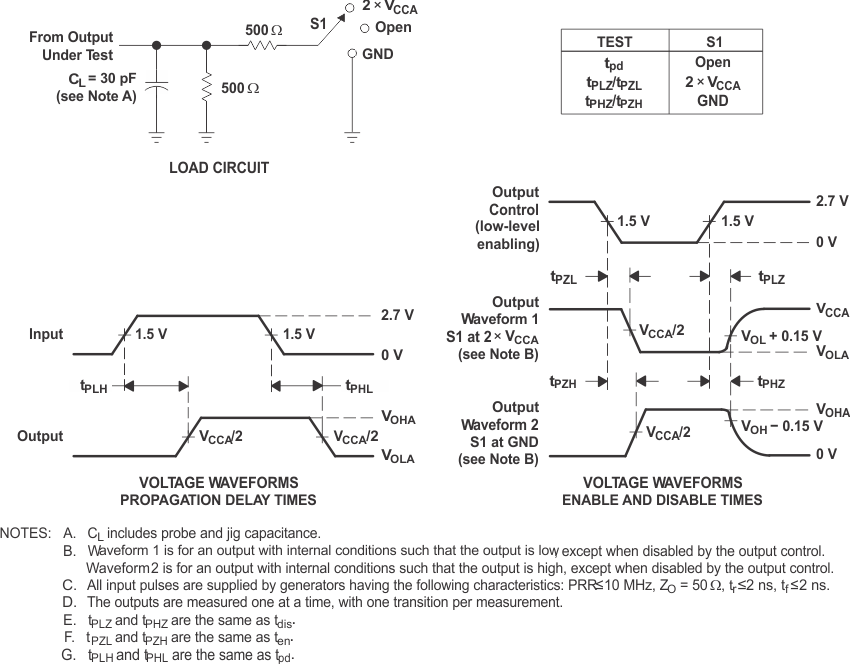

7.2 VCCB = 3.3 V ± 0.3 V to VCCA = 2.5 V ± 0.2 V
Figure 3. Load Circuit and Voltage Waveforms

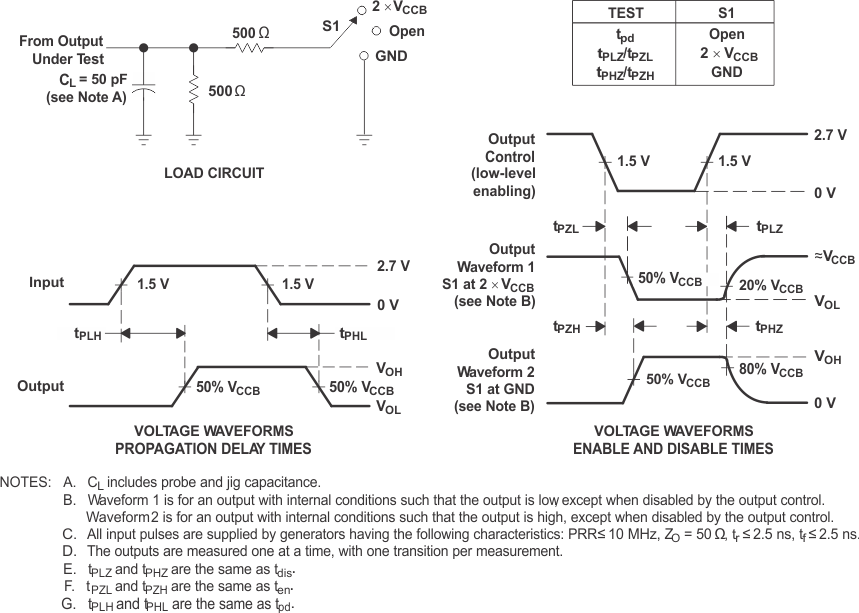

7.3 VCCA = 3.3 V ± 0.3 V to VCCB = 5 V ± 0.5 V
Figure 4. Load Circuit and Voltage Waveforms

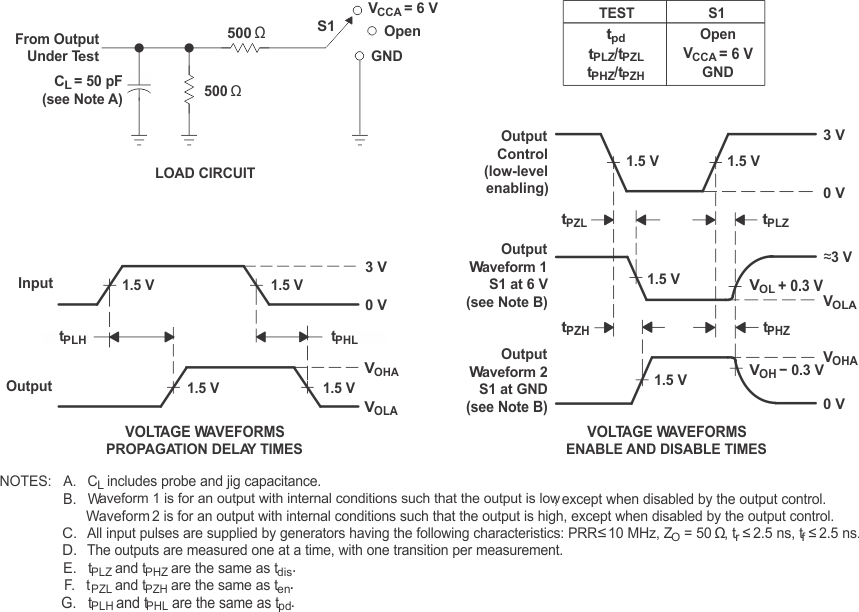

7.4 VCCB = 5 V ± 0.5 V to VCCA = 2.7 V and 3.3 V ± 0.3 V
Figure 5. Load Circuit and Voltage Waveforms
