ZHCST97F October 2004 – October 2024 SN74AHC1G08-Q1
PRODUCTION DATA
- 1
- 1 特性
- 2 應用
- 3 說明
- 4 Pin Configuration and Functions
- 5 Specifications
- 6 Parameter Measurement Information
- 7 Detailed Description
- 8 Application and Implementation
- 9 Device and Documentation Support
- 10Revision History
- 11Mechanical, Packaging, and Orderable Information
封裝選項
請參考 PDF 數據表獲取器件具體的封裝圖。
機械數據 (封裝 | 引腳)
- DBV|5
- DCK|5
- DTX|5
散熱焊盤機械數據 (封裝 | 引腳)
訂購信息
4 Pin Configuration and Functions

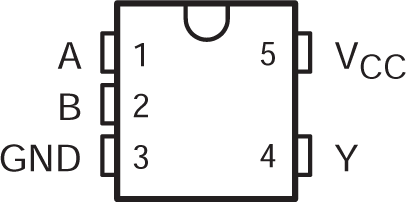

Figure 4-1 DBV or DCK Package, 5-Pin
SOT-23 or SOT-SC70 (Top View)
Figure 4-2 DTX Package, 5-Pin X2SON (Top View)Table 4-1 Pin Functions
| PIN | TYPE | DESCRIPTION | |
|---|---|---|---|
| NO. | NAME | ||
| 1 | A | I | Input A |
| 2 | B | I | Input B |
| 3 | GND | — | Ground Pin |
| 4 | Y | O | Output Y |
| 5 | VCC | — | Power Pin |
