ZHCSMG8V March 1996 – February 2024 SN74AHC1G04
PRODUCTION DATA
- 1
- 1 特性
- 2 應用范圍
- 3 說明
- 4 Pin Configuration and Functions
- 5 Specifications
- 6 Parameter Measurement Information
- 7 Detailed Description
- 8 Application and Implementation
- 9 Device and Documentation Support
- 10Revision History
- 11Mechanical, Packaging, and Orderable Information
封裝選項
請參考 PDF 數據表獲取器件具體的封裝圖。
機械數據 (封裝 | 引腳)
- DBV|5
- DCK|5
- DRL|5
散熱焊盤機械數據 (封裝 | 引腳)
訂購信息
4 Pin Configuration and Functions
See mechanical
drawings for dimensions.

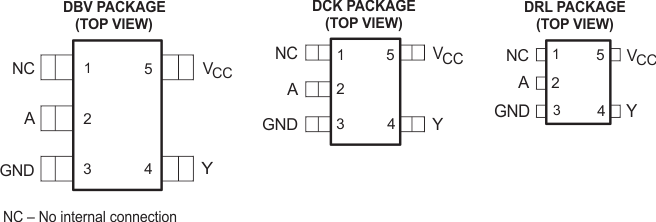

Table 4-1 Pin Functions
| PIN | TYPE(1) | DESCRIPTION | |
|---|---|---|---|
| NO. | NAME | ||
| 1 | NC | — | No Connection |
| 2 | A | I | Input A |
| 3 | GND | — | Ground Pin |
| 4 | Y | O | Output Y |
| 5 | VCC | — | Power Pin |
(1) Signal Types: I = Input, O =
Output, I/O = Input or Output
