6 Parameter Measurement Information
A. CL includes probe and
jig capacitance.
B. Waveform 1 is for an output with internal conditions such that the output is
low, except when disabled by the output control. Waveform 2 is for an output
with internal conditions such that the output is high, except when disabled by
the output control.
C. All
input pulses are supplied by generators having the following characteristics:
PRR ≤ 1 MHz, ZO = 50 ?, tr ≤ 3 ns, tf ≤ 3
ns.
D. The
outputs are measured one at a time, with one input transition per
measurement.
E. All
parameters and waveforms are not applicable to all devices.

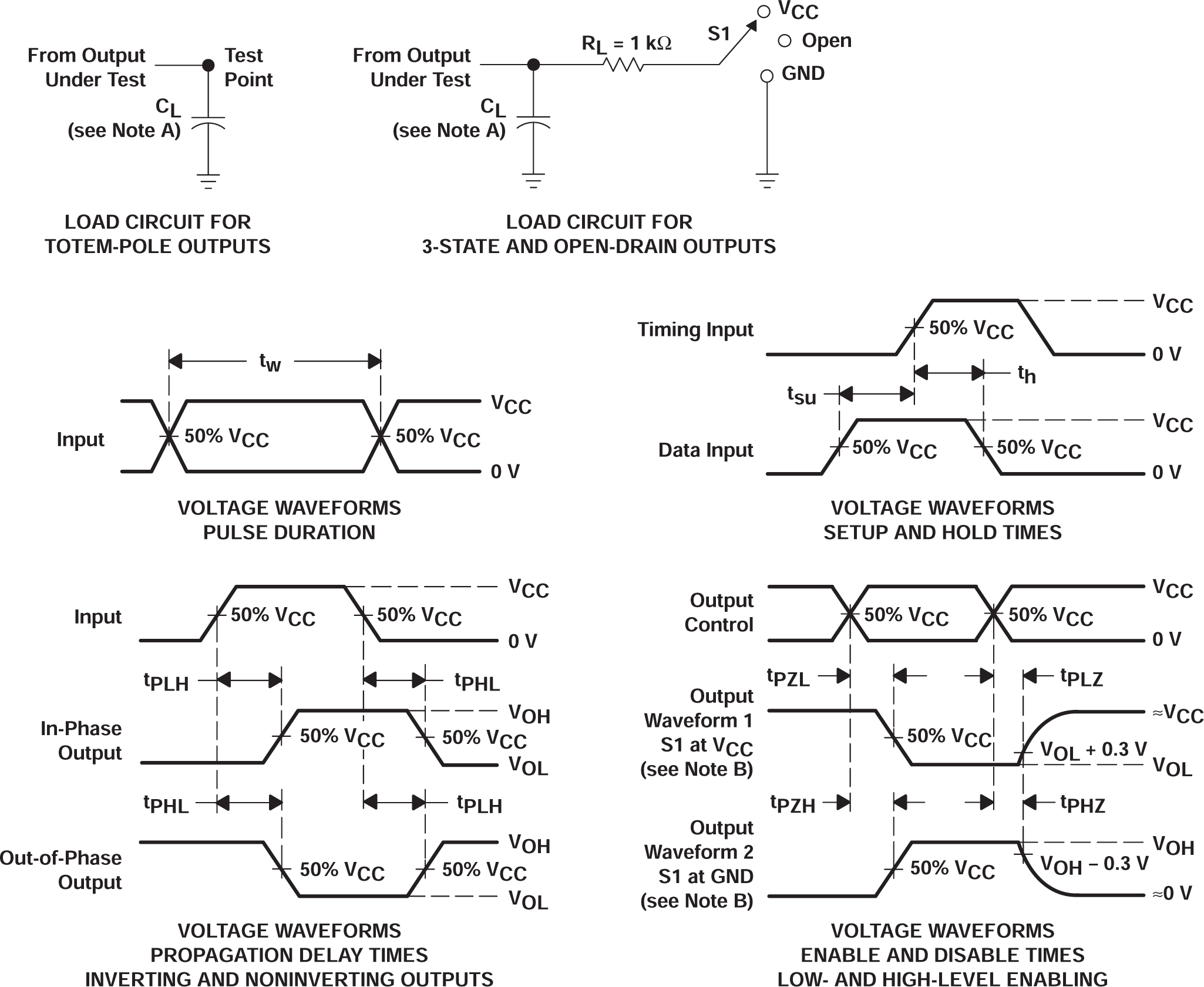

Figure 6-1 Load Circuit and Voltage
Waveforms| TEST | S1 |
|---|---|
| tPLH/tPHL | Open |
| tPLZ/tPZL | VCC |
| tPHZ/tPZH | GND |
| Open Drain | VCC |
