4 Pin Configuration and Functions

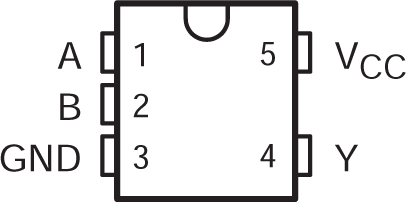

Figure 4-1 DBV or DCK Package, 5-Pin
SOT-23 or SOT-SC70 (Top View)
Figure 4-2 DTX Package, 5-Pin X2SON
(Top View)Table 4-1 Pin Functions
| PIN | TYPE | DESCRIPTION | |
|---|---|---|---|
| NO. | NAME | ||
| 1 | A | I | Input A |
| 2 | B | I | Input B |
| 3 | GND | — | Ground Pin |
| 4 | Y | O | Output Y |
| 5 | VCC | — | Power Pin |
