10.4.2 Equivalent Input and Output Schematic Diagrams

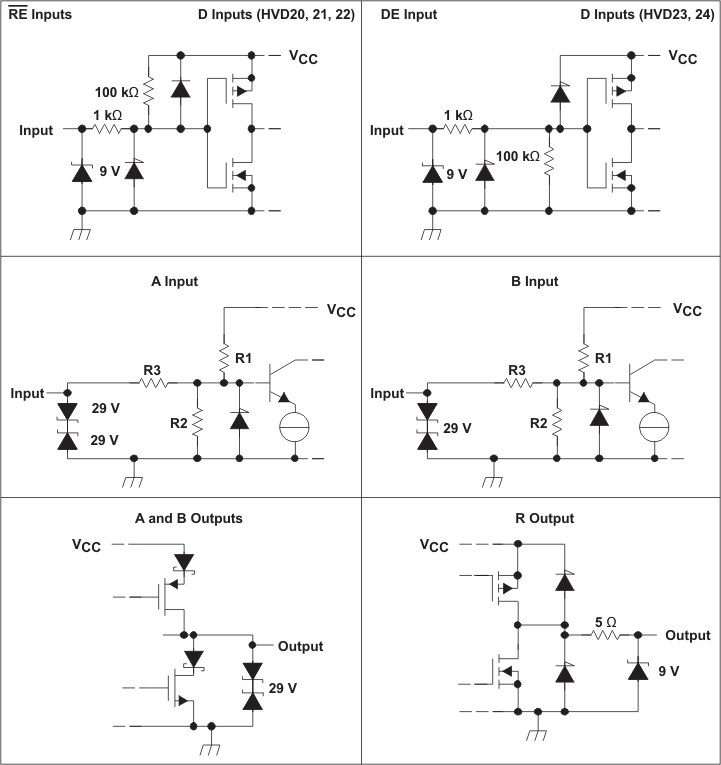

Figure 10-4 Equivalent Input and Output Schematic DiagramsTable 10-3 Input and Output Resistor Values
| DEVICE | R1, R2 | R3 |
|---|---|---|
| SN65HVD2[0,3] | 9 kΩ | 45 kΩ |
| SN65HVD2[1,2,4] | 36 kΩ | 180 kΩ |
